1719532-1

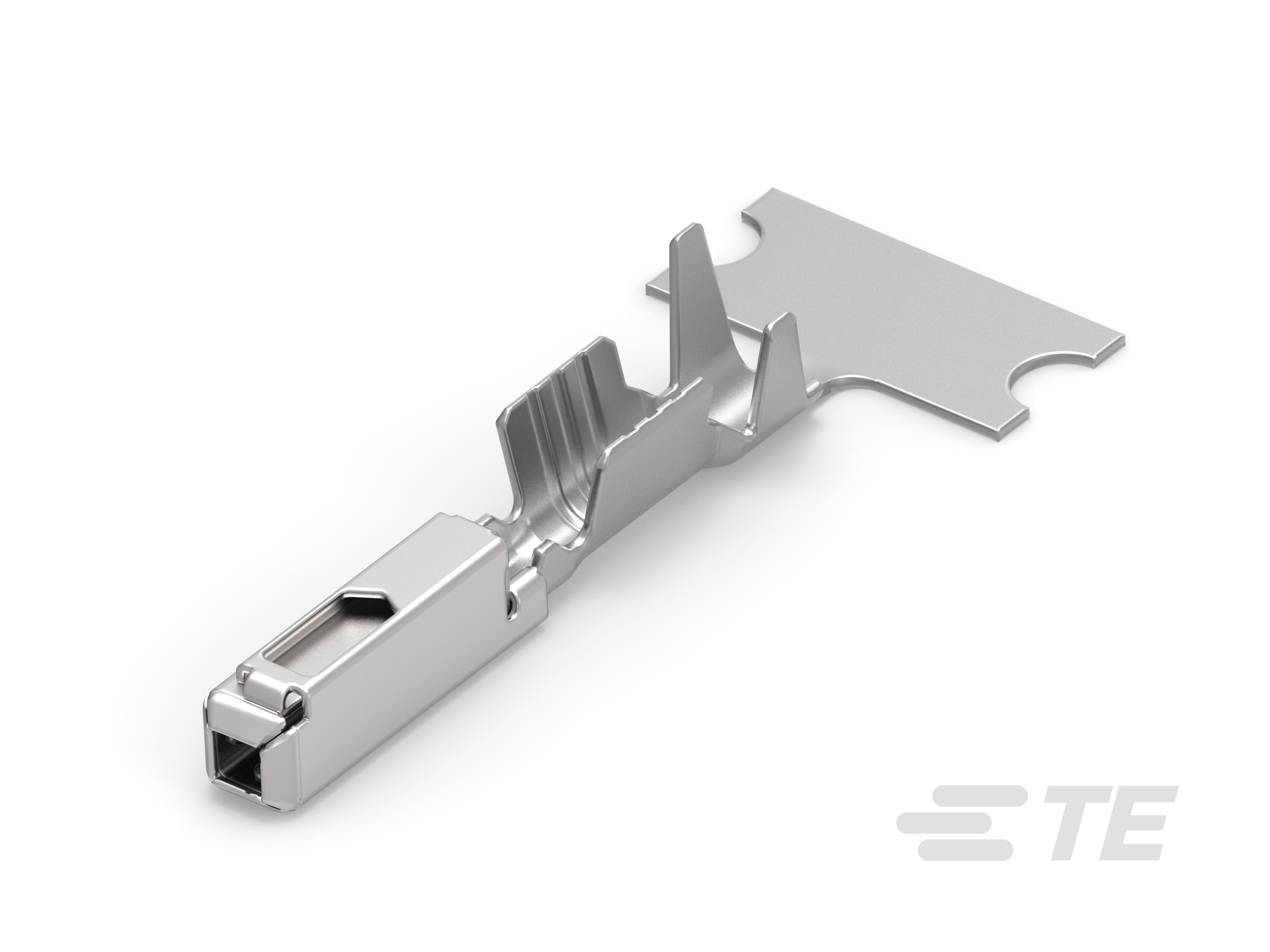

Receptacle, Mating Tab Width .63 mm [.025 in], Tab Thickness .63 mm [.025 in], 18 AWG Wire Size, .85 mm² Wire Size, Automotive Terminals
1719532-1
Receptacle, Mating Tab Width .63 mm [.025 in], Tab Thickness .63 mm [.025 in], 18 AWG Wire Size, .85 mm² Wire Size, Automotive Terminals
-
- MQS
- TE Internal #: 1719532-1
- TE Internal Description: MQS0,63 Sn rec CB unseal. AWG18
- All MQS, RECEPTACLE AND TAB (98)
-
Packaging Method : Reel
-
Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]
-
Interface Plating : Tin (Sn)
-
Operating Temperature (Max) (°C): 120, 110, 100, 90, 80, 105, 85
-
Operating Temperature (Max) (°F): 248, 185, 194, 176, 212, 221, 230
-
Wire Size (AWG): 18
Documents
Product Drawings
- MQS CLEAN BODY Produktgruppenzeichnung Buchsenkontakt ENG_CD_1670226_A4.pdf English
- MICRO QUADLOK SYSTEM CLEAN BODY - AWG ENG_CD_1719532_A2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1719532-1_C.pdf 3D
- Customer View Model ENG_CVM_CVM_1719532-1_C.2d_dxf.zip English
- ENG_CVM_CVM_1719532-1_C.3d_igs.zip English
- ENG_CVM_CVM_1719532-1_C.3d_stp.zip English
Product Specifications
- Application Specification GER_SS_114-18022_N.pdf German
- ENG_SS_114-18022-20_L.pdf English
- Product Specification ENG_SS_108-18030_B.pdf English
