1734028-1

Active

A, 2.0, Standard Profile, Plug, 1 Port, Top, Right Angle, Box & Tray / Tape & Reel, Flush, Surface Mount, Cable-to-Board, 4 Position, USB Connectors

1734028-1

Active

A, 2.0, Standard Profile, Plug, 1 Port, Top, Right Angle, Box & Tray / Tape & Reel, Flush, Surface Mount, Cable-to-Board, 4 Position, USB Connectors

TE Internal #: 1734028-1

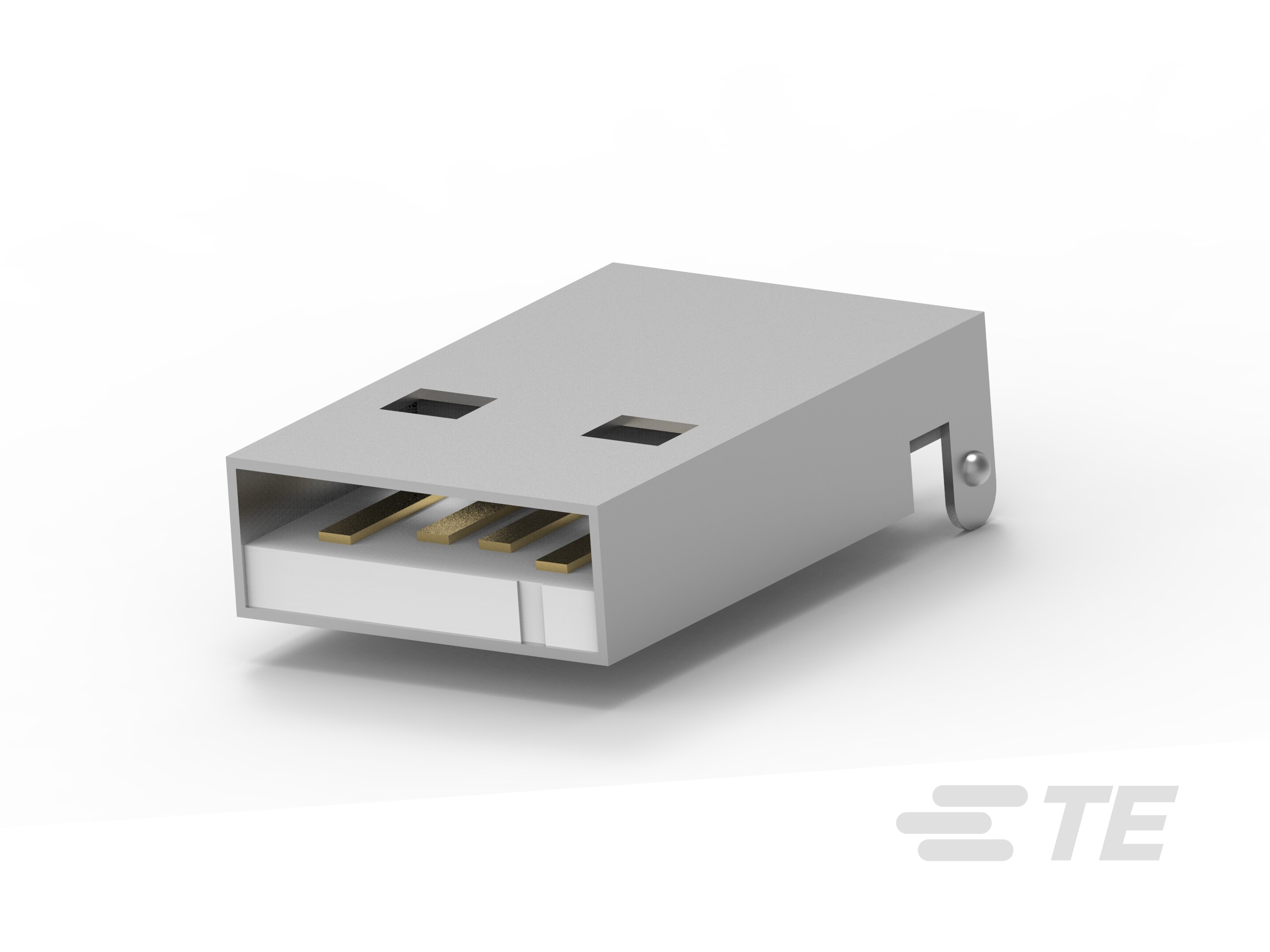

TE Internal Description: Std USB Type A, Plug, Natural

USB Adapter Type : A
USB Version : 2.0
Connector Profile : Standard
Connector & Housing Type : Plug
Number of Ports : 1

See All Features

More Less

Get Free Samples
Compatible Parts & Tooling

Documents

Product Drawings

USB CONNECTOR, PLUG, R/A, SMT TYPE ENG_CD_1734028_E.pdf English

CAD Files

Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
3D PDF 3D_CVM_CVM_1734028-1_C.pdf 3D
Customer View Model ENG_CVM_CVM_1734028-1_C.2d_dxf.zip English
ENG_CVM_CVM_1734028-1_C.3d_igs.zip English
ENG_CVM_CVM_1734028-1_C.3d_stp.zip English

Datasheets & Catalog Pages

USB Quick Reference Guide (English) ENG_DS_1-1773453-6_0721.pdf English
USB and Mini USB Datasheet 7-1773442-0 ENG_DS_7-1773442-0_0306.pdf English

Product Specifications

Application Specification ENG_SS_114-5044_E1.tif English
ENG_SS_114-5044_E1.pdf English
Product Specification S_108-57306_A.tif English
S_108-57306_A.pdf English
ENG_SS_108-2351_H1.pdf English

Product Change Notification

View Product Change Notification Login required to access product change notifications

Features

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

USB Adapter Type : A
USB Version : 2.0
Connector & Housing Type : Plug
Connector System : Cable-to-Board
Connector & Contact Terminates To : Printed Circuit Board
USB Connector Type : USB 2.0 Type-A

Configuration Features

Number of Mounting Legs : 2
Number of Ports : 1
Number of Positions : 4

Body Features

Shell Plating Material : Nickel over Copper
Connector Profile : Standard

Contact Features

Contact Mating Area Plating Material : Gold Flash over Palladium Nickel
Contact Mating Area Plating Material Thickness : .76 µm [ 29.92 µin ]
Contact Current Rating (Max) (A): 1.5

Termination Features

Termination Post & Tail Length : 1.2 mm [ .047 in ]
Termination Method to PCB : Surface Mount

Mechanical Attachment

PCB Mount Alignment Type : Locating Posts
Locking Feature : Without
PCB Mount Location : Top
PCB Connector Seating : Flush
PCB Mount Retention Type : Straight Leg
Connector Mounting Type : Board Mount

Housing Features

Housing Material : Thermoplastic
Housing Color : Natural
Body Orientation : Right Angle
Centerline (Pitch) (mm): 2, 2.5
Centerline (Pitch) (in): .078, .098

Dimensions

PCB Thickness (Recommended) : 1.6 mm [ .063 in ]

Usage Conditions

Soldering Temperature (Max) : 260 °C [ 500 °F ]
Mating Cycles (Max) : 1500
Operating Temperature Range : 0 – 50 °C [ 32 – 122 °F ]

Operation/Application

Halogen Free : No
Circuit Application : Power & Signal

Industry Standards

UL Flammability Rating : UL 94V-0
Moisture Sensitivity Level : 5A
Industry Standard : USB 2.0

Packaging Features

Packaging Quantity : 3200
Packaging Method : Box & Tray, Tape & Reel
