Our USB connector system accommodates the two deferentially driven data wires that provide bi-directional, simultaneous signals for full speed (12Mbps) or low speed (1.5Mbps) used in universal series bus (USB) systems. Designed for outside-of-box, user-friendly applications, our USB cable connector types consist of a single, four-position board-mount receptacle and mating cable mount overmolded plug. Board-mount receptacles are available in standard, Type B, stacked, and side-by-side configurations, adding to the system’s versatility to meet the needs of many USB applications.
TE Connectivity (TE) is a standing member of the USB-IF (USB Implementers Forum) and offers a wide range of products to meet your interconnect needs. Our products accommodate the two differentially driven data wires that provide bi-directional, simultaneous signals for USB 4 Gen 3 (40 Gbps), USB Type-C (20Gbps) USB 3.0 (5 Gbps), USB 2.0 (480 Mbps) and USB 1 (1.5 & 12 Mbps). TE has a wide variety of USB offerings including: standard (A & B), mini (A, A/B, B) B, and micro (A/B and B) sizes, Type-C. We also offer locking versions of its standard USB as well as latching versions of its standard and micro USB while also providing faster, reliable, rugged solutions for next-generation
applications with waterproof and splash proof capabilities.
Product Features:
Specifications for USB Connectors
- Allows for charging
- Broad family of board mount receptacles, in various orientations and PCB mounting styles
- Cable mount overmold plug kits for all USB sizes and types
- Consolidates serial parallel, keyboards, mice, and game ports
- Compatible with asynchronous and isochronous data transfer methods
- Polarized for proper orientation
- Plug-and-Play capability
- Hot pluggable, permitting attaching or detaching peripherals without power downtime or reboot
Select Applications:
USB Connectors
- Desktop and laptop computers
- Keyboards / mice
- Joysticks / game ports
- Printers / scanners
- Digital audio
- Modems
- Portable storage devices
- Mobile phones
- GPS devices

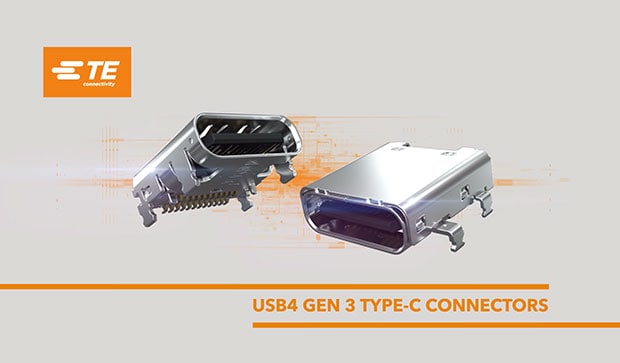

In this video, you’ll know more about feature and benefit of TE Connectivity's new USB4 Gen 3 Type-C connectors.
-

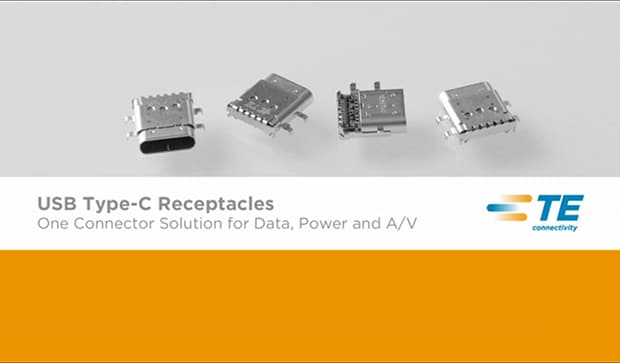

USB Type-C Receptacle (English)
-
USB Type-C Connectors for Small and Home Appliances (English)
-
Waterproof Micro USB 2.0 Connector (English)
-
USB 3.0 Connector Solutions (English)
Frequently Asked Questions
Types of USB Cable Connectors
Q: What types and options should be considered when designing for micro USB 2.0?
A: Learn more about micro USB versatility in this brief overview.
Q: What USB connector allows for reversible insertion?
A: Only USB Type-C allows for both a flippable and reversable mating interface.
Read more: USB Connectors Frequently Asked Questions.
