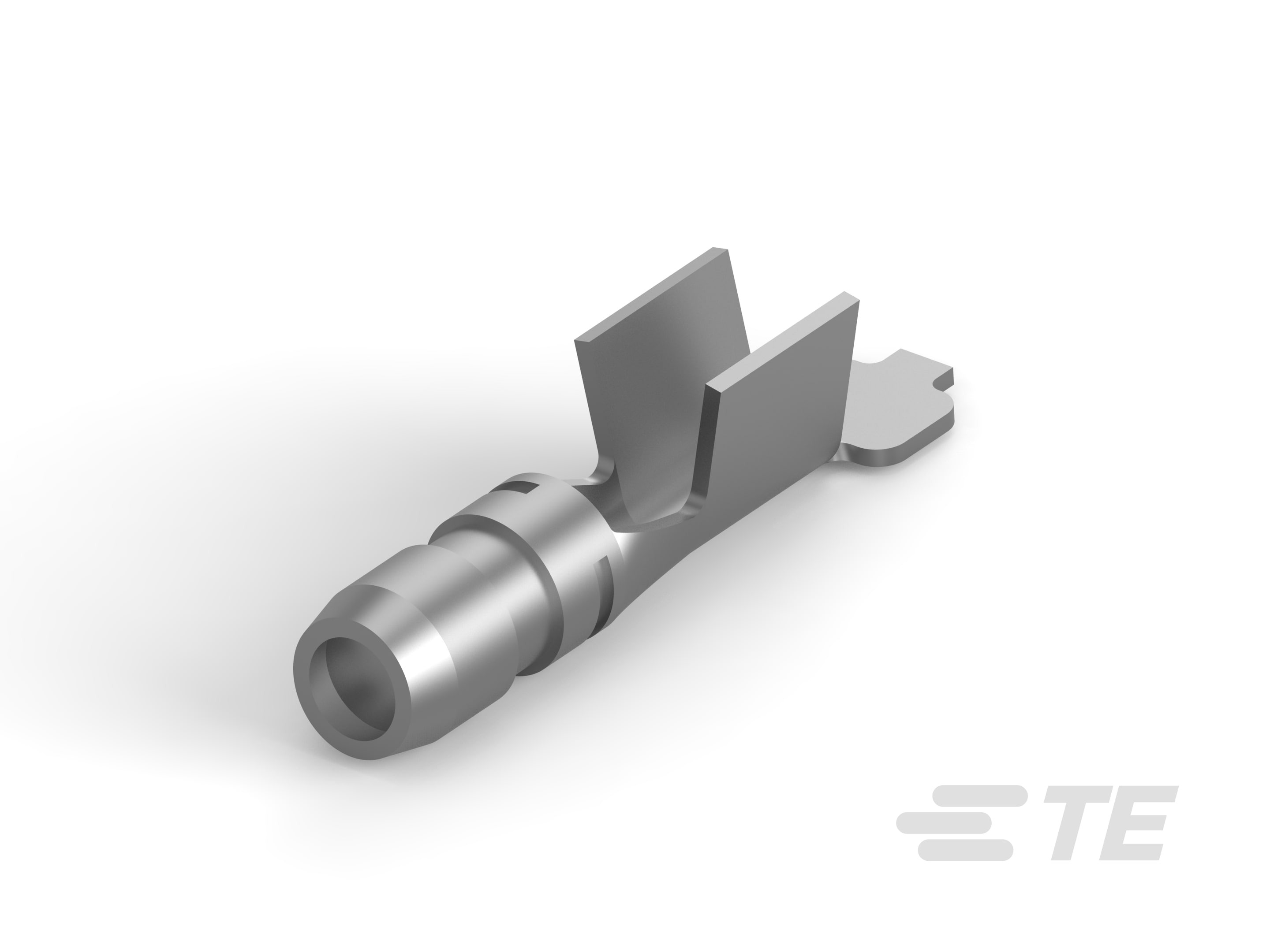

Shur-Plug, 3.96 mm [.156 in] Pin Diameter, 14 – 10 AWG, 2 – 6 mm² Wire, 4106 – 10382 CMA, Closed Barrel, Pre-Tin Plating, SHUR-PLUG 156
1742039-1
Shur-Plug, 3.96 mm [.156 in] Pin Diameter, 14 – 10 AWG, 2 – 6 mm² Wire, 4106 – 10382 CMA, Closed Barrel, Pre-Tin Plating, SHUR-PLUG 156
-
- SHUR-PLUG 156
- TE Internal #: 1742039-1
- TE Internal Description: SHUR PLUG .156 DIA REC 10-14 AWG PTPBR
-
Crimp Wire Terminal Type : Shur-Plug
-
Mating Pin Diameter : 3.96 mm [ .156 in ]
-
Wire Size (AWG): 14 – 10
-
Wire Size (mm²): 2 – 6
-
Wire Size (CMA): 4106 – 10382
