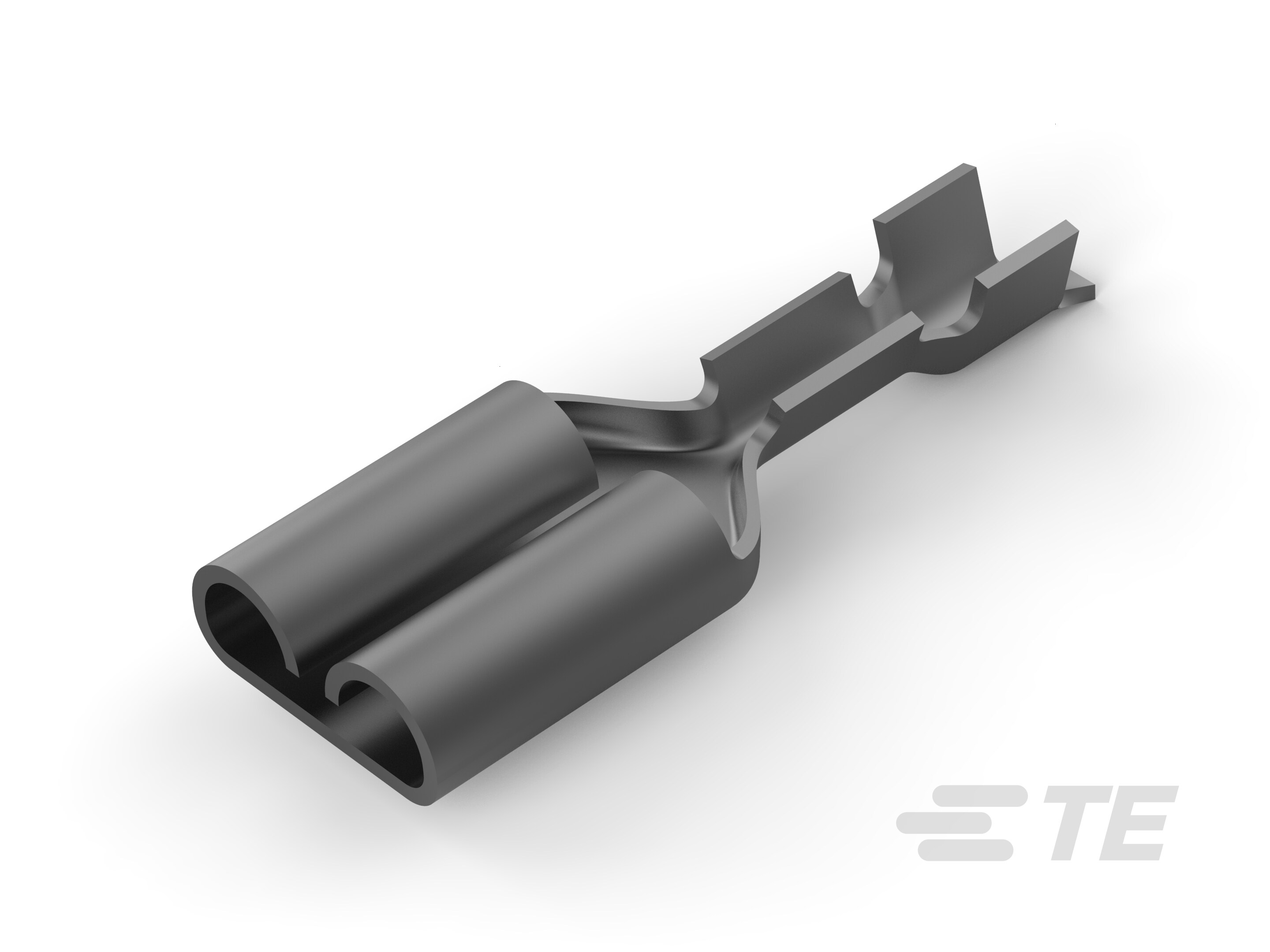

Quick Disconnect Receptacle, 26 – 22 AWG, .12 – .32 mm² Wire, 254 – 642 CMA, .66 mm [.026 in] Tab Width, Straight, Brass, Tin Plating, FASTON 312
1742754-1
Quick Disconnect Receptacle, 26 – 22 AWG, .12 – .32 mm² Wire, 254 – 642 CMA, .66 mm [.026 in] Tab Width, Straight, Brass, Tin Plating, FASTON 312
-
- FASTON
- FASTON 312
- TE Internal #: 1742754-1
- TE Internal Description: FASTON RECEPTACLE 26-22 AWG TPBR
-
Quick Disconnect Terminal Type : Receptacle
-
Wire Size (AWG): 26 – 22
-
Wire Size (mm²): .12 – .32
-
Wire Size (CMA): 254 – 642
-
Mating Tab Width : .66 mm [ .026 in ]
