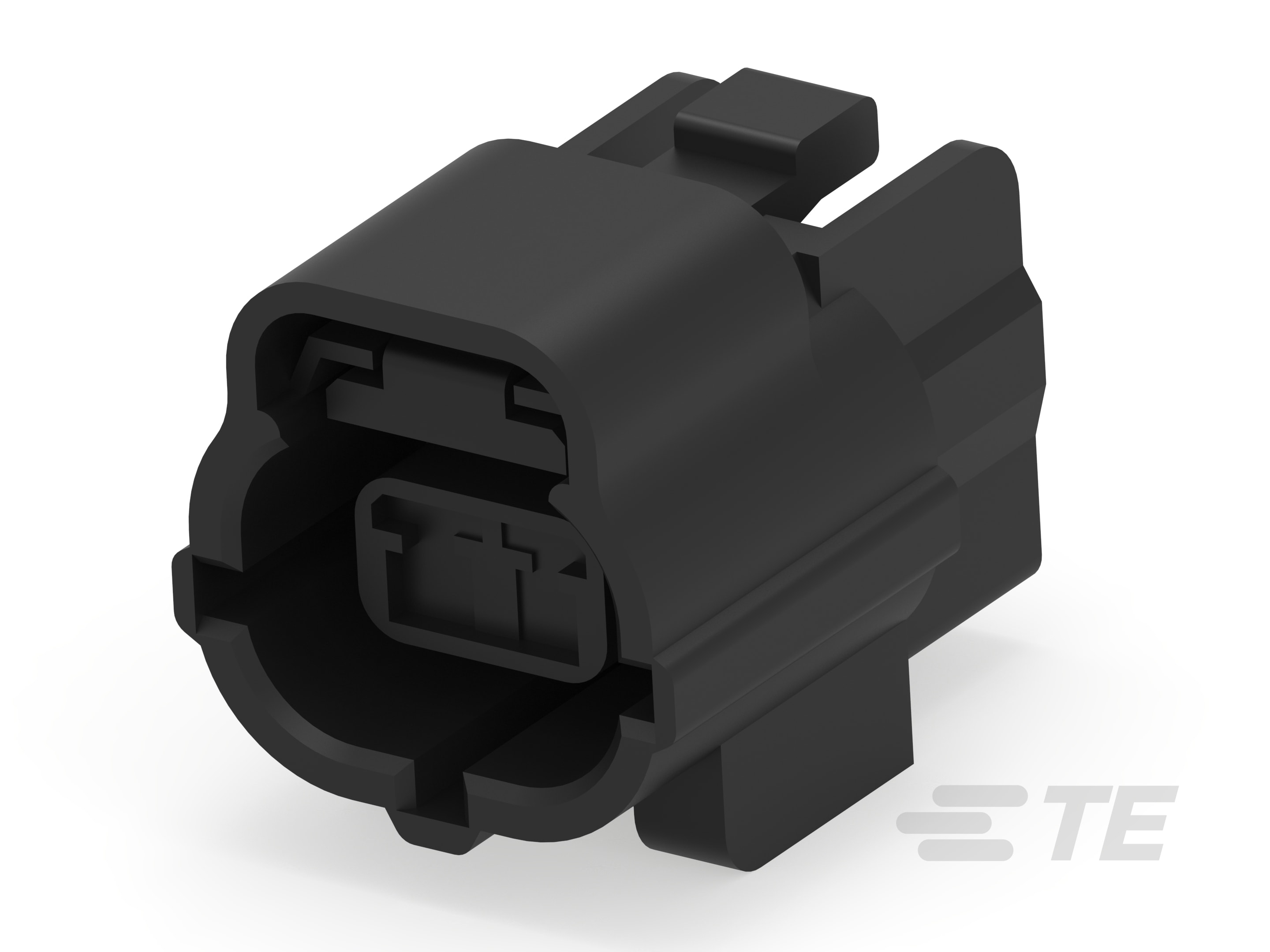

Housing for Female Terminals, Wire-to-Wire, 2 Position, 4.8 mm [.189 in] Centerline, Sealable, Black, Signal, Cable Mount (Free-Hanging)
174352-2
Housing for Female Terminals, Wire-to-Wire, 2 Position, 4.8 mm [.189 in] Centerline, Sealable, Black, Signal, Cable Mount (Free-Hanging)
-
- Econoseal
- TE Internal #: 174352-2
- TE Internal Description: 070 ECONOSEAL MARK-2 PLUG 2P
- Alias #: 440-483671 CA9317-000 AMPS-0-0174352-2
- All ECONOSEAL, CONNECTOR HOUSING (59)
-
Packaging Method : Bag
-
Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]
-
Primary Product Color : Black
-
Product Width : 20.6 mm [ .811 in ]
-
Operating Temperature (Max) (°C): 70, 100, 105, 75, 80, 85, 90
-
Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212, 221
