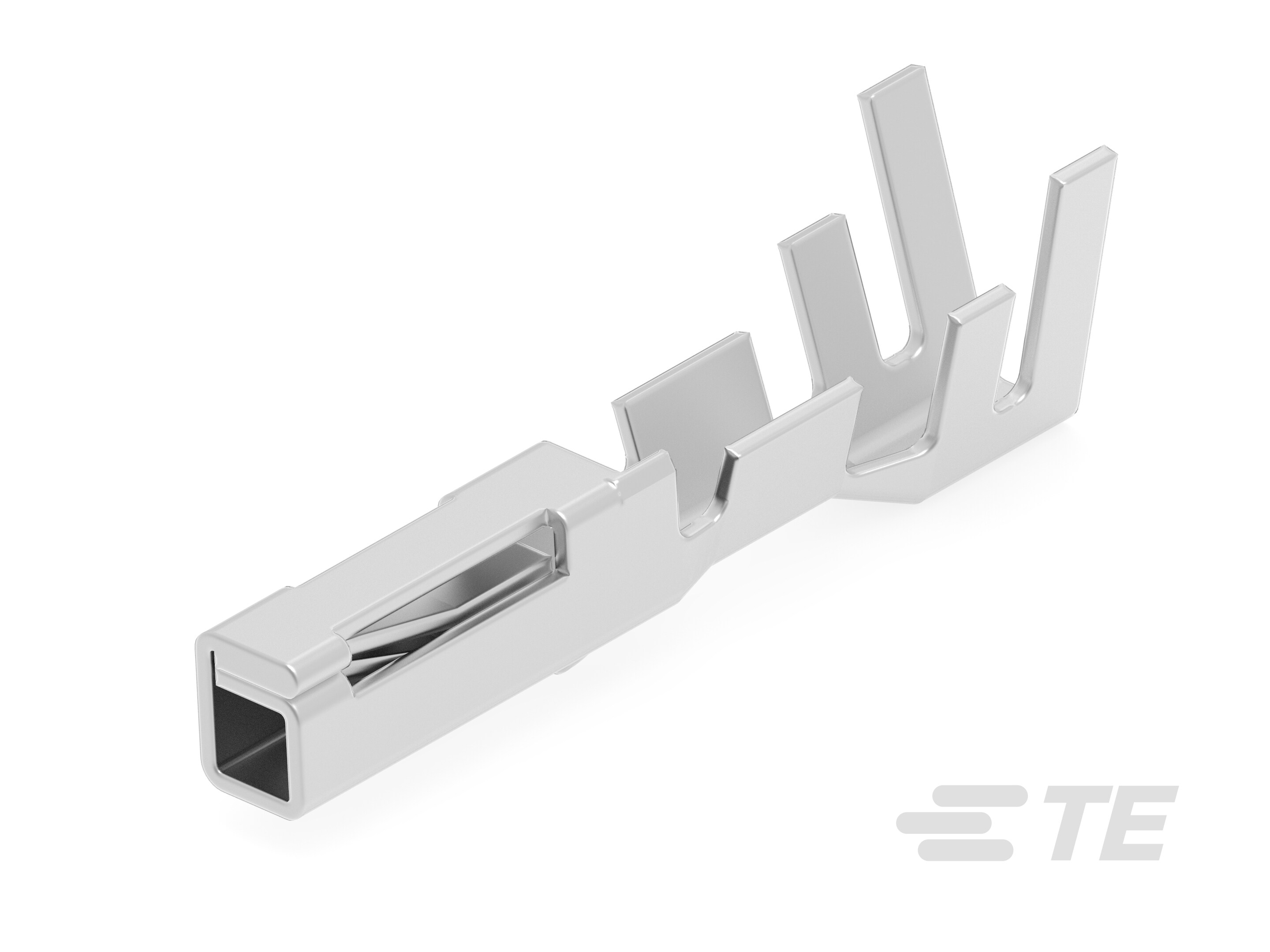

Receptacle Terminal, Mating Tab Width 1 mm [.039 in], Tab Thickness .64 mm [.025 in], 22 – 20 AWG Wire Size, Multilock Connector System
175180-1
Receptacle Terminal, Mating Tab Width 1 mm [.039 in], Tab Thickness .64 mm [.025 in], 22 – 20 AWG Wire Size, Multilock Connector System
-
- AMP
- Multilock Connector System
- TE Internal #: 175180-1
- TE Internal Description: 040 MULTILOCK REC CONT PRE-TIN
- All MULTILOCK, RECEPTACLE AND TAB (81)
-
Terminal Type : Receptacle
-
Mating Tab Width : 1 mm [ .039 in ]
-
Mating Tab Thickness : .64 mm [ .025 in ]
-
Terminal Transmits : 0 – 24 A (Low Power)
-
Wire Size (AWG): 22 – 20
