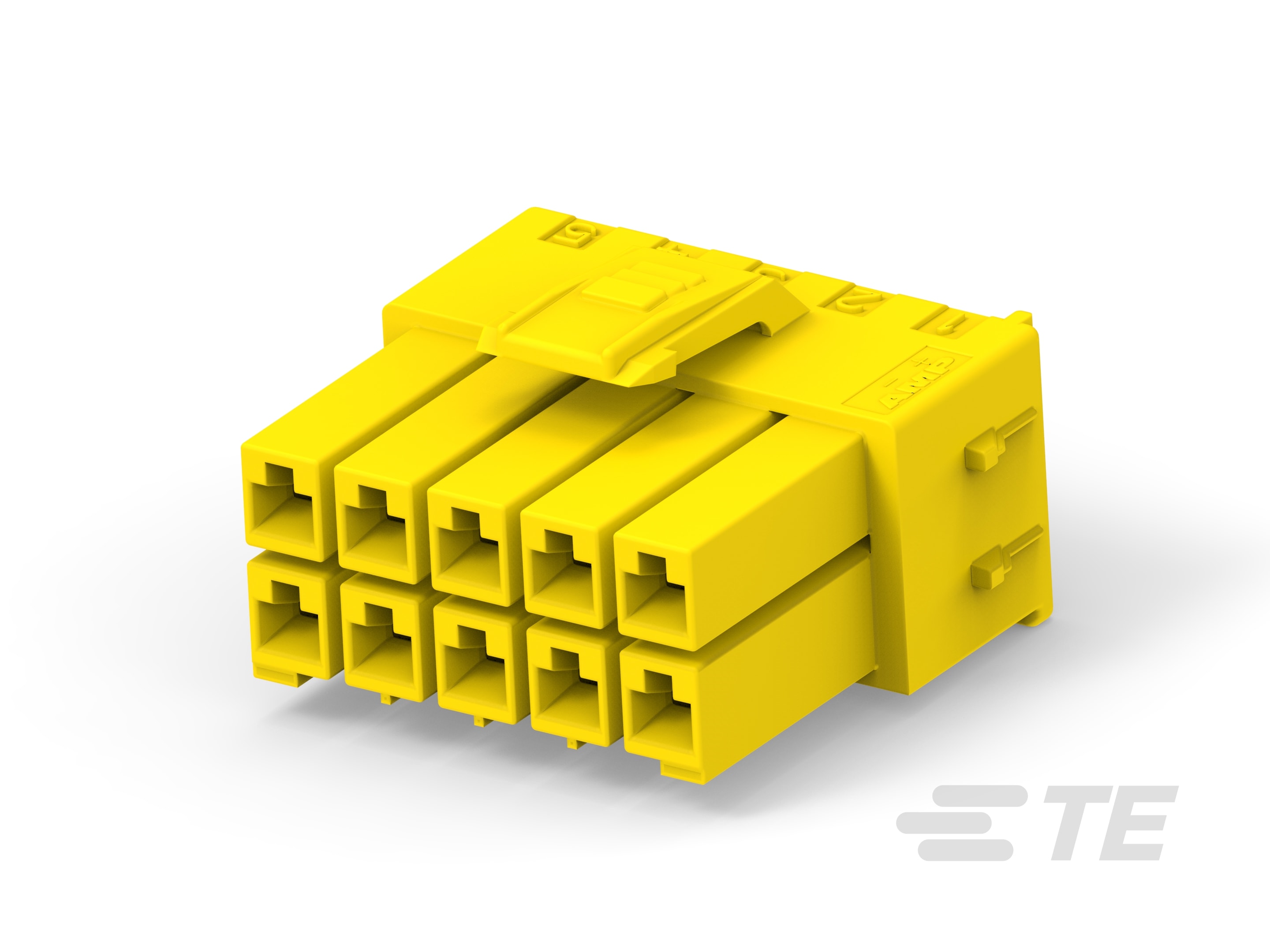

Housing, Plug, Wire-to-Wire, 10 Position, 3.96 mm [.156 in] Centerline, Wire & Cable, UL 94V-0, Power Double Lock, Rectangular Power Connectors
177904-4
Housing, Plug, Wire-to-Wire, 10 Position, 3.96 mm [.156 in] Centerline, Wire & Cable, UL 94V-0, Power Double Lock, Rectangular Power Connectors
-
- Power Double Lock
- TE Internal #: 177904-4
- TE Internal Description: POWER D/LOCK PLUG HSG 10P YELL
- All STD Temp Power Double Lock Plug (66)
-
Rectangular Power Connector Type : Housing
-
Connector & Housing Type : Plug
-
Connector System : Wire-to-Wire
-
Number of Positions : 10
-
Centerline (Pitch) : 3.96 mm [ .156 in ]
Documents
Product Drawings
- AMP PDL CONN. 3.96MM PITCH PLUG HOUSING 10 POS (DBL ROW) ENG_CD_177904_C4.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_177904-4_H.pdf 3D
- Customer View Model ENG_CVM_CVM_177904-4_H.2d_dxf.zip English
- ENG_CVM_CVM_177904-4_H.3d_igs.zip English
- ENG_CVM_CVM_177904-4_H.3d_stp.zip English
Datasheets & Catalog Pages
- SOFT_SHELL_PIN_AND_SOCKET_CONNECTORS_CATALOG ENG_CS_82181_SOFTSHELL_HIGH_DENSITY_0508.pdf English
Product Specifications
- Application Specification ENG_SS_114-5175_P3.pdf English
- Product Specification ENG_SS_108-5410_K3.pdf English
Instruction Sheets
- Instruction Sheet (non U.S.) ENG_SS_411-5638_B.pdf English
- S_411-5638_B.tif English
