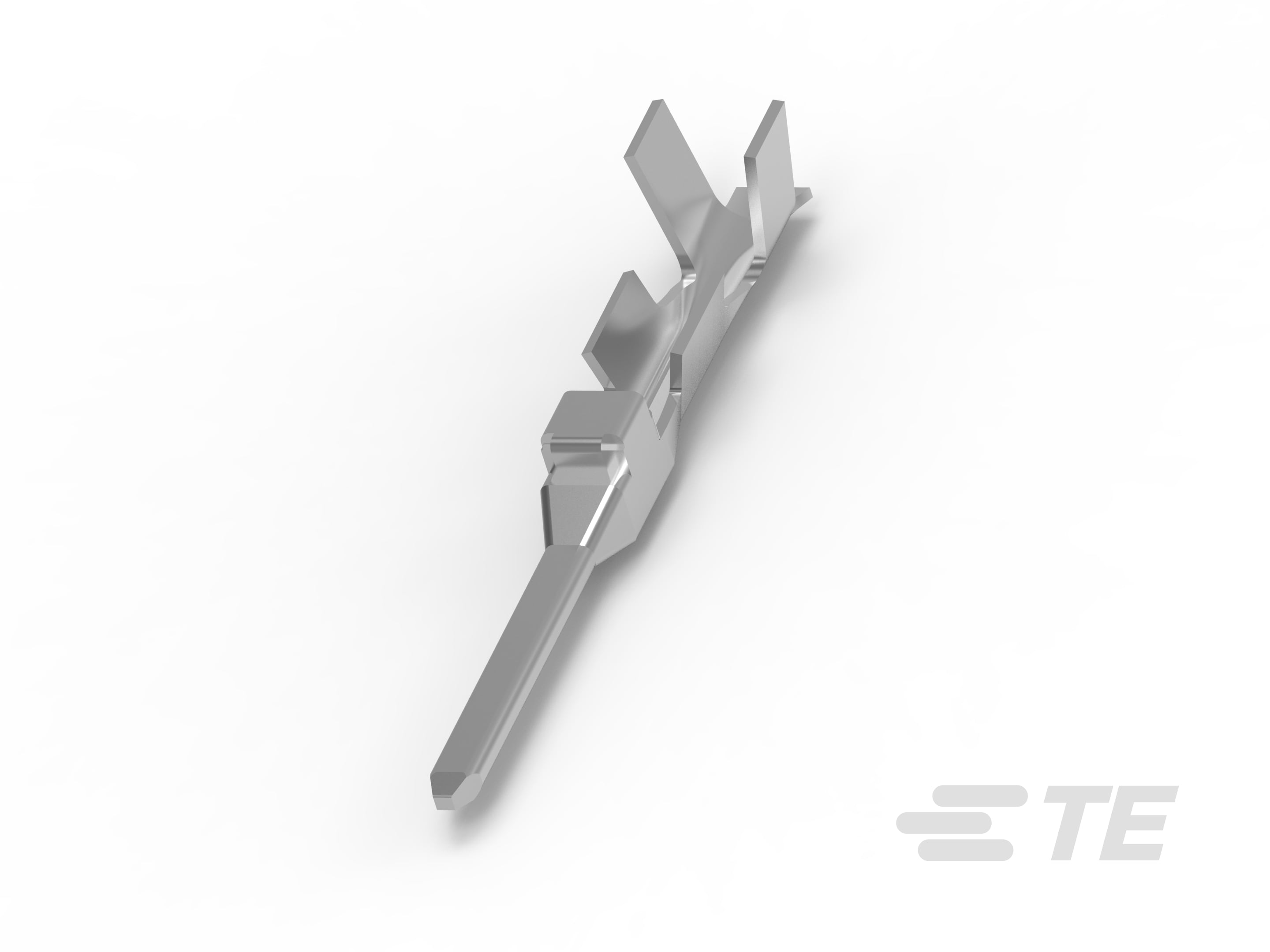

Tab Terminal, 22 – 20 AWG, .3 – .5 mm² Wire, 1 mm [.039 in] Tab Width, Tin (Sn), .64 mm [.025 in] Tab Thickness, Multilock Connector System
1897724-1
Tab Terminal, 22 – 20 AWG, .3 – .5 mm² Wire, 1 mm [.039 in] Tab Width, Tin (Sn), .64 mm [.025 in] Tab Thickness, Multilock Connector System
-
- Multilock Connector System
- TE Internal #: 1897724-1
- TE Internal Description: 040 TAB CONTACT
- All MULTILOCK, RECEPTACLE AND TAB (81)
-
Terminal Type : Tab
-
Wire Size (AWG): 22 – 20
-
Wire Size (mm²): .3 – .5
-
Mating Tab Width : 1 mm [ .039 in ]
-
Interface Plating : Tin (Sn)
Documents
Product Drawings
- .040 SERIES TAB CONTACT ENG_CD_1897724_A1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1897724-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_1897724-1_A.2d_dxf.zip English
- ENG_CVM_CVM_1897724-1_A.3d_igs.zip English
- ENG_CVM_CVM_1897724-1_A.3d_stp.zip English
Datasheets & Catalog Pages
- MULTILOCK Connector System ENG_CS_1654355_MULTILOCK_0911.pdf English
Product Specifications
- Application Specification ENG_SS_114-61028_A.pdf English
