1924968-2

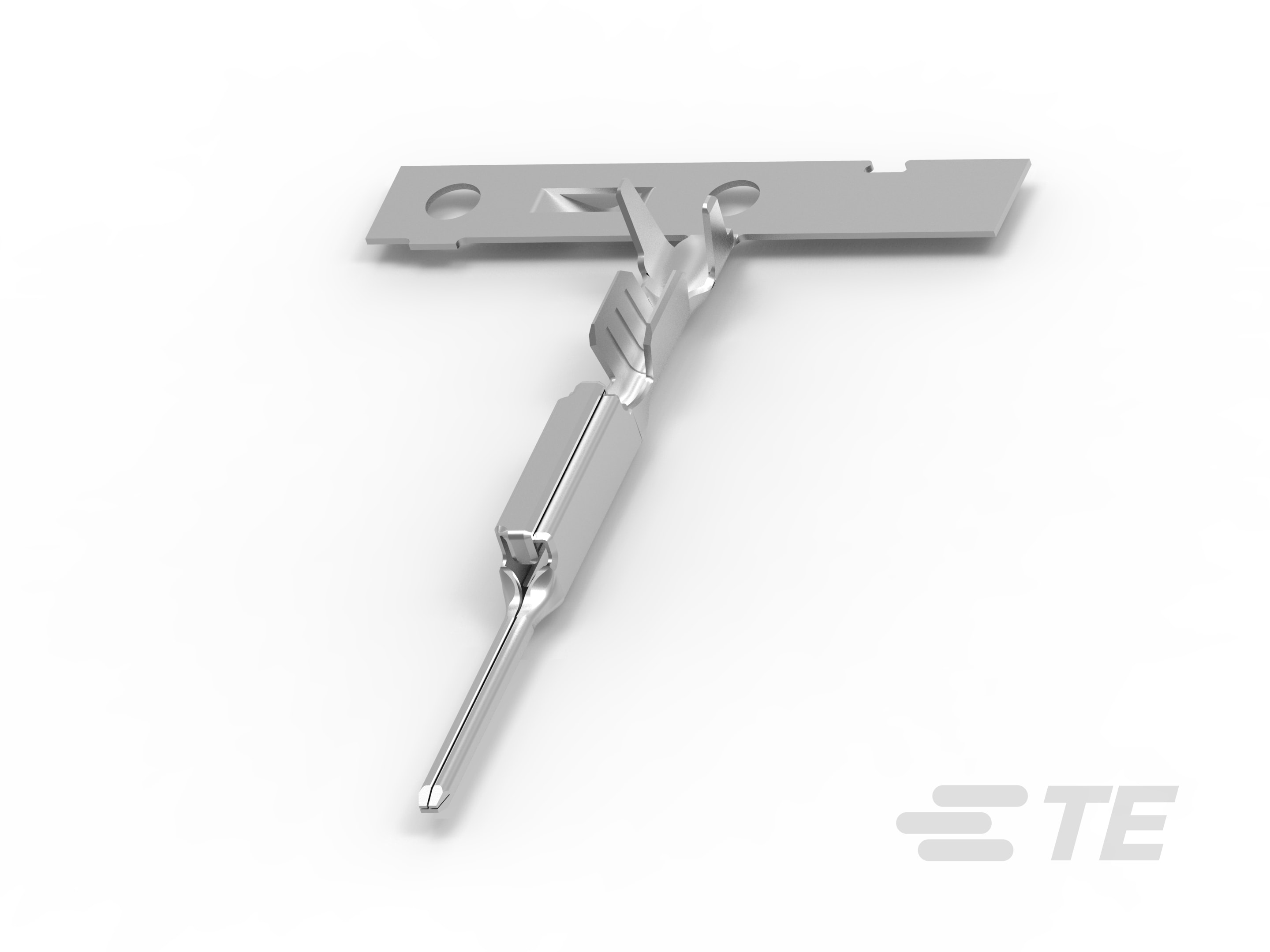

Pin, Mating Tab Width .64 mm [.02 in], Tab Thickness .64 mm [.02 in], 18 AWG Wire Size, Generation Y Connector System, Automotive Terminals
1924968-2
Pin, Mating Tab Width .64 mm [.02 in], Tab Thickness .64 mm [.02 in], 18 AWG Wire Size, Generation Y Connector System, Automotive Terminals
-
- Generation Y Connector System
- TE Internal #: 1924968-2
- TE Internal Description: Contact, male 0.64, 18 AWG
- All Generation Y Terminals, 68POS Hybrid (10)
-
Packaging Method : Package
-
Operating Temperature Range : -40 – 100 °C [ -40 – 212 °F ]
-
Interface Plating : Tin (Sn)
-
Operating Temperature (Max) : 100 °C [ 212 °F ]
-
Wire Size (AWG): 18
Documents
Product Drawings
- CONTACT, MALE, 0.64mm, GENERATION Y ENG_CD_1924968_A7.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1924968-2_B.pdf 3D
- Customer View Model ENG_CVM_CVM_1924968-2_B.2d_dxf.zip English
- ENG_CVM_CVM_1924968-2_B.3d_igs.zip English
- ENG_CVM_CVM_1924968-2_B.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-13183_U.pdf English
- Product Specification ENG_SS_108-2296-1_B.pdf English
