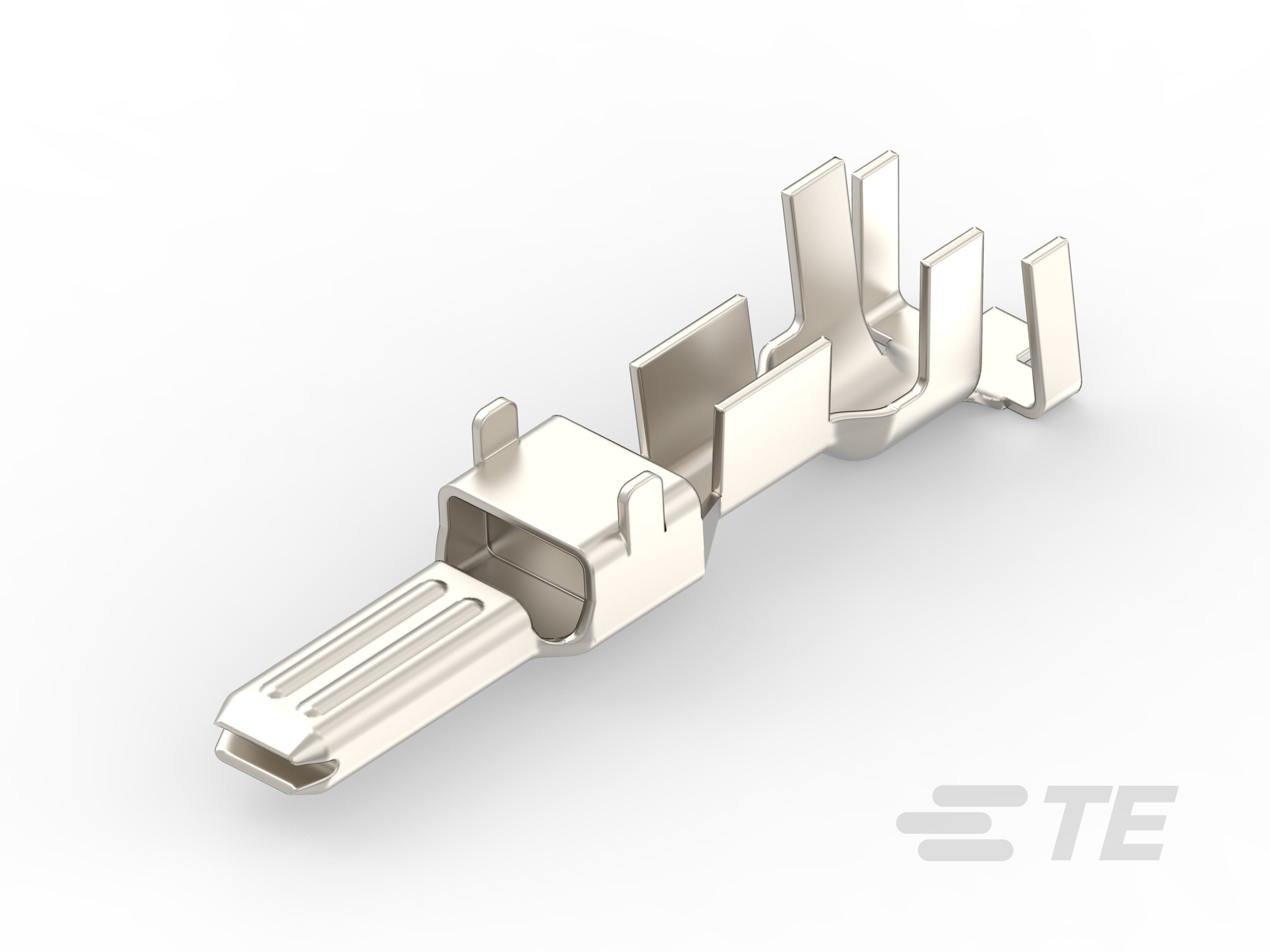

Tab Contact, Tin, 600 VAC, 600 VDC, 19 – 16 AWG Wire Size, .65 – 1.3 mm² Wire Size, Crimp, Copper Alloy, Power, Power Triple Lock
1971784-2
Tab Contact, Tin, 600 VAC, 600 VDC, 19 – 16 AWG Wire Size, .65 – 1.3 mm² Wire Size, Crimp, Copper Alloy, Power, Power Triple Lock
-
- Power Triple Lock
- TE Internal #: 1971784-2
- TE Internal Description: PTL TAB CONTACT, 16-19 AWG, 2X22 AWG
- All Tab Contact — POWER TRIPLE LOCK (10)
-
Contact Type : Tab
-
Contact Mating Area Plating Material : Tin
-
Wire Contact Termination Area Plating Material : Pre-Tin
-
Operating Voltage (VAC): 600
-
Operating Voltage (VDC): 600
Documents
Product Drawings
- TAB CONTACT POWER TRIPLE LOCK ENG_CD_1971784_E.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1971784-2_E.pdf 3D
- Customer View Model ENG_CVM_CVM_1971784-2_E.2d_dxf.zip English
- ENG_CVM_CVM_1971784-2_E.3d_igs.zip English
- ENG_CVM_CVM_1971784-2_E.3d_stp.zip English
Datasheets & Catalog Pages
- 1-1773734-9 TE Power Triple Lock Quick Reference Guide - German GER_DS_1-1773734-9_PTL_QRG_DE_0315.pdf German
- 9-1773465-1Power Triple Lock QRG ENG_DS_9-1773465-1PTLQRG_A318.pdf English
Product Specifications
- Application Specification ENG_SS_114-106118_N.pdf English
- ENG_SS_114-106147_E3.pdf English
- Product Specification ENG_SS_108-106118_H.pdf English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-143028_C.pdf English
Agency Approvals
- VDE Certificate ENG_AAD_VDE_40045889_E.pdf English
- ENG_AAD_VDE_CERT_40045889_C1_A-1.pdf English
