Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

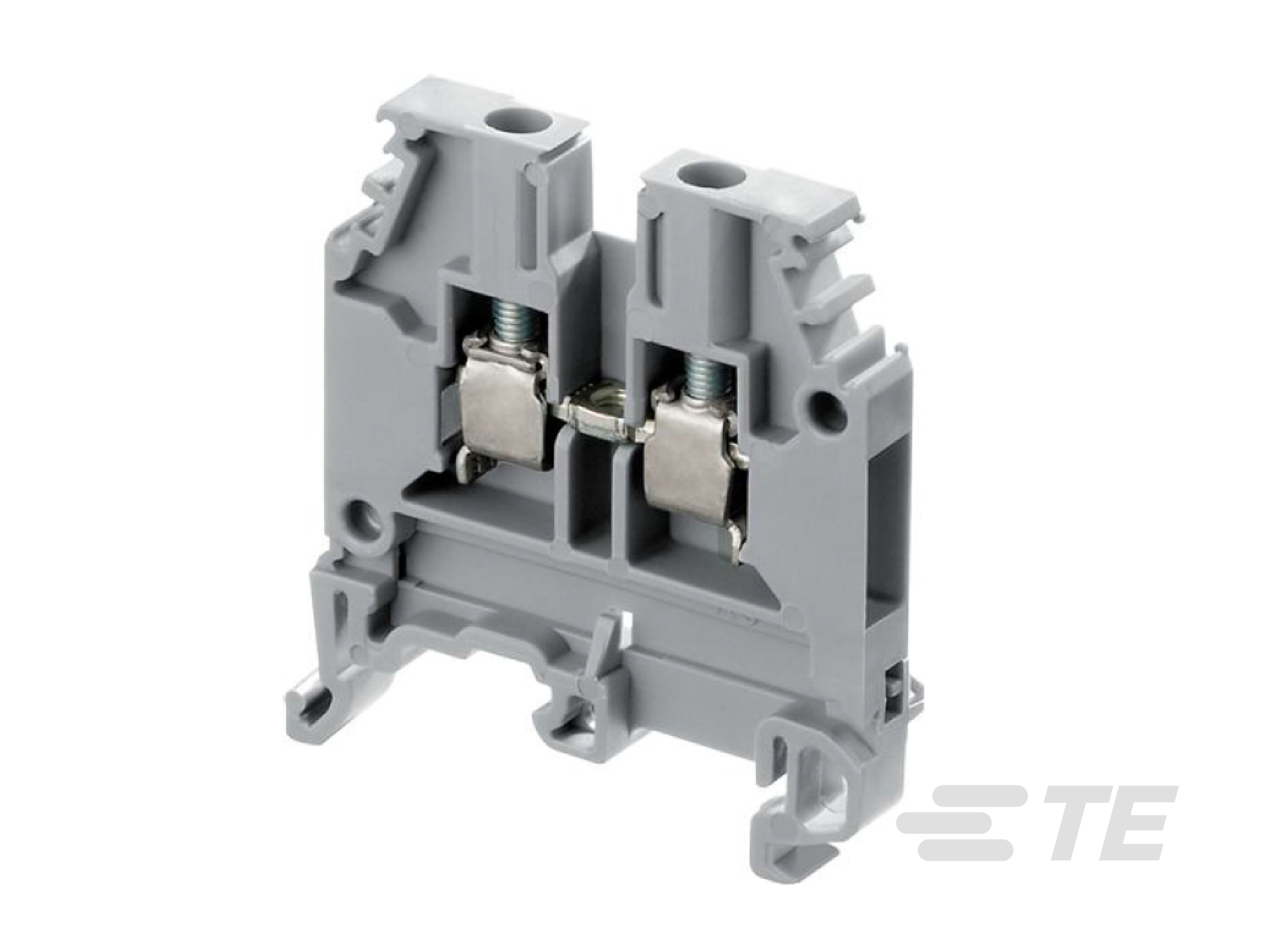

• Modular Terminal Block Product Type : Screw Clamp Terminal Block

• Number of Circuits : 1

• Number of Poles : 2

• Gauge Type : A4

• Number of Levels : 1

• Block Function : Feed-Through

• Number of Positions : 2

• Short-Time Withstanding Current Rating @ 1s (A): 480

• Voltage Rating (CSA) (V): 600

• Voltage Rating (IEC) (V): 1000

• Dielectric Withstanding Voltage (Max) (V): 2000

• Current Rating (CSA) (A): 30

• Current Rating (UL) (A): 30

• Current Rating (IEC) (A): 32

• Impulse Withstanding Voltage Rating (IEC) (V): 8000

• Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V): 600

• Operating Voltage (VAC): 1000

• Product Weight : 8.2 g [ .289 oz ]

• Primary Product Color : Yellow

• Termination Method to Wire & Cable : Screw Terminal

• Tightening Torque (in-lbs): 4.4

• Tightening Torque (Nm): .5

• DIN Rail Mounting Type : G32, TH35-15, TH35-7.5

• Connector Mounting Type : DIN Rail

• Housing Material : Polyamide 6.6

• Product Height (mm): 44.5

• Product Length (mm): 40.5

• Product Width : 6 mm [ .235 in ]

• Main Circuit Capacity - 1 Flexible Conductor per Spring Clamp (mm²): .22 – 4

• Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²): .2 – 4

• Wire Stripping Length : 9.5 mm [ .374 in ]

• Tool Size : 4 mm [ .157 in ]

• Product Depth (mm): 40.5

• Product Spacing : 6 mm [ .235 in ]

• Wire Size (AWG): 10

• Wire Size (mm²): 4

• Installation Temperature Range : -5 – 40 °C [ 23 – 104 °F ]

• Operating Temperature Range : -55 – 110 °C [ -67 – 230 °F ]

• Circuit Application : Signal
