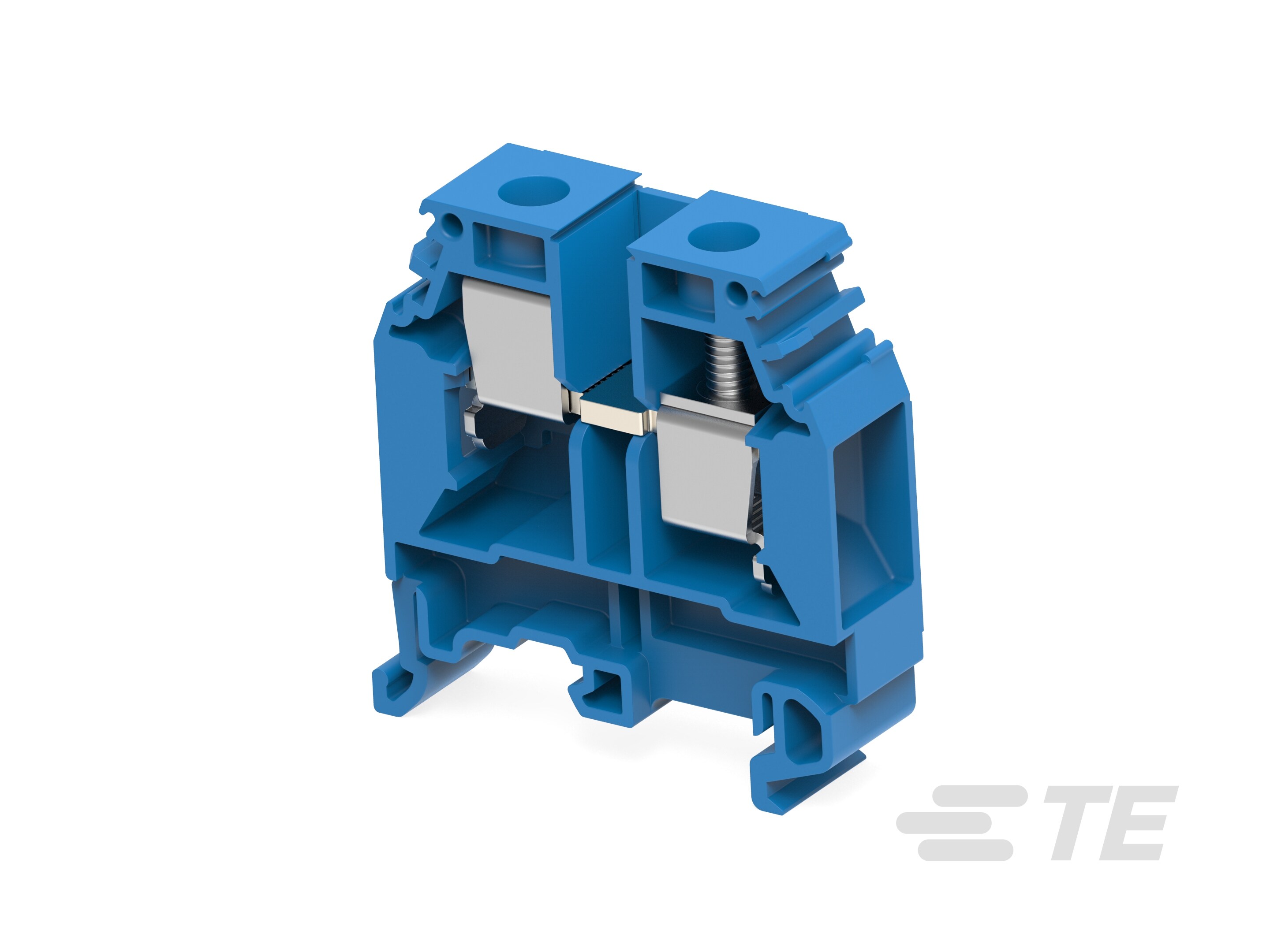

• Modular Terminal Block Product Type : Screw Clamp Terminal Block

• Number of Positions : 2

• Gauge Type : B7

• Number of Poles : 2

• Block Function : Feed-Through

• Number of Levels : 1

• Number of Circuits : 1

• Short-Time Withstanding Current Rating @ 1s (A): 1920

• Impulse Withstanding Voltage Rating (IEC) (V): 8000

• Current Rating (IEC) (A): 76

• Current Rating (UL) (A): 85

• Current Rating (CSA) (A): 85

• Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V): 600

• Dielectric Withstanding Voltage (Max) (V): 2000

• Operating Voltage (VAC): 1000

• Voltage Rating (CSA) (V): 600

• Voltage Rating (IEC) (V): 1000

• Primary Product Color : Blue

• Product Weight : 26.1 g [ .921 oz ]

• Termination Method to Wire & Cable : Screw Terminal

• Connector Mounting Type : DIN Rail

• DIN Rail Mounting Type : TH35-7.5, TH35-15, G32

• Tightening Torque (in-lbs): 10.6

• Tightening Torque (Nm): 1.2

• Housing Material : Polyamide 6.6

• Product Width : 12 mm [ .471 in ]

• Wire Size (AWG): 6

• Wire Stripping Length : 14 mm [ .55 in ]

• Tool Size : 5.5 mm [ .217 in ]

• Product Depth (mm): 40.5

• Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²): 2.5 – 25

• Product Spacing : 12 mm [ .471 in ]

• Main Circuit Capacity - 1 Flexible Conductor per Spring Clamp (mm²): 2.5 – 16

• Product Height (mm): 45.5

• Product Length (mm): 40.5

• Wire Size (mm²): 16

• Operating Temperature Range : -55 – 110 °C [ -67 – 230 °F ]

• Installation Temperature Range : -5 – 40 °C [ 23 – 104 °F ]

• Circuit Application : Signal
