• Number of Circuits : 3

• Gauge Type : A2 / 2.3 mm Dia.

• Number of Levels : 3

• Block Function : Feed-Through & Ground

• Number of Positions : 6

• Product Weight : 21.38 g [ .842 oz ]

• Primary Product Color : Gray

• Product Height (mm): 101.9

• Product Length (mm): 73.34

• Main Circuit Capacity - 1 Insulated Ferrule per Spring Clamp (AWG): 26 – 14

• Main Circuit Capacity - 1 Flexible Conductor per Spring Clamp (mm²): .22 – 2.5

• Main Circuit Capacity - 1 Non-Insulated Ferrule per Spring Clamp (AWG): 26 – 14

• Main Circuit Capacity - 1 Insulated Ferrule per Spring Clamp (mm²): .22 – 2.5

• Main Circuit Capacity - 1 Non-Insulated Ferrule per Spring Clamp (mm²): .22 – 2.5

• Main Circuit Capacity - 1 Rigid Stranded Conductor per Spring Clamp (AWG): 26 – 12

• Main Circuit Capacity - 1 Rigid Stranded Conductor per Spring Clamp (mm²): .2 – 4

• Main Circuit Capacity - Twin Ferrule per Spring Clamp (AWG): 26 – 20

• Wire Stripping Length : 11 mm [ .433 in ]

• Tool Size : 3.5 mm [ .138 in ]

• Product Depth (mm): 73.34

• Main Circuit Capacity - Twin Ferrule per Spring Clamp (mm²): .22 – .5

• Product Spacing : 5.2 mm [ .205 in ]

• DIN Rail Mounting Type : TH35-15, TH35-7.5

• Connector Mounting Type : DIN Rail

• Installation Temperature Range : -5 – 40 °C [ 23 – 104 °F ]

• Operating Temperature Range : -55 – 110 °C [ -67 – 230 °F ]

• Short-Time Withstanding Current Rating @ 1s (A): 300

• Voltage Rating (CSA) (V): 300

• Voltage Rating (IEC) (V): 500

• Dielectric Withstanding Voltage (Max) (V): 2000

• Current Rating (CSA) (A): 20

• Current Rating (UL) (A): 20

• Current Rating (IEC) (A): 22

• Impulse Withstanding Voltage Rating (IEC) (V): 8000

• Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V): 300

• Power Loss (W): 1.6

• UL Flammability Rating : UL 94V-0

• IP Rating : IP20

• Housing Material : Polyamide

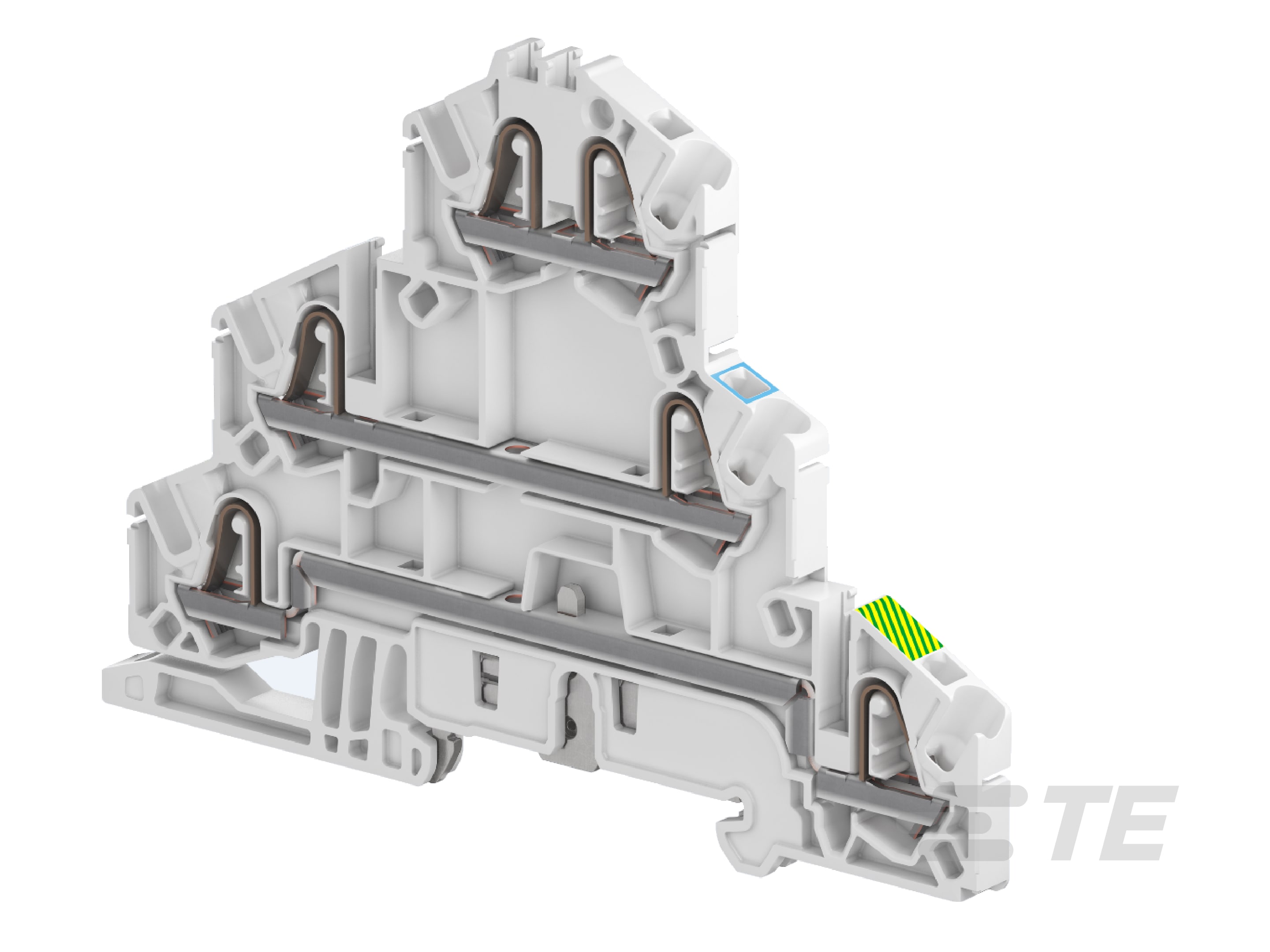

• Modular Terminal Block Product Type : PI-Spring Terminal Block
