1SNL610010R0000

Active

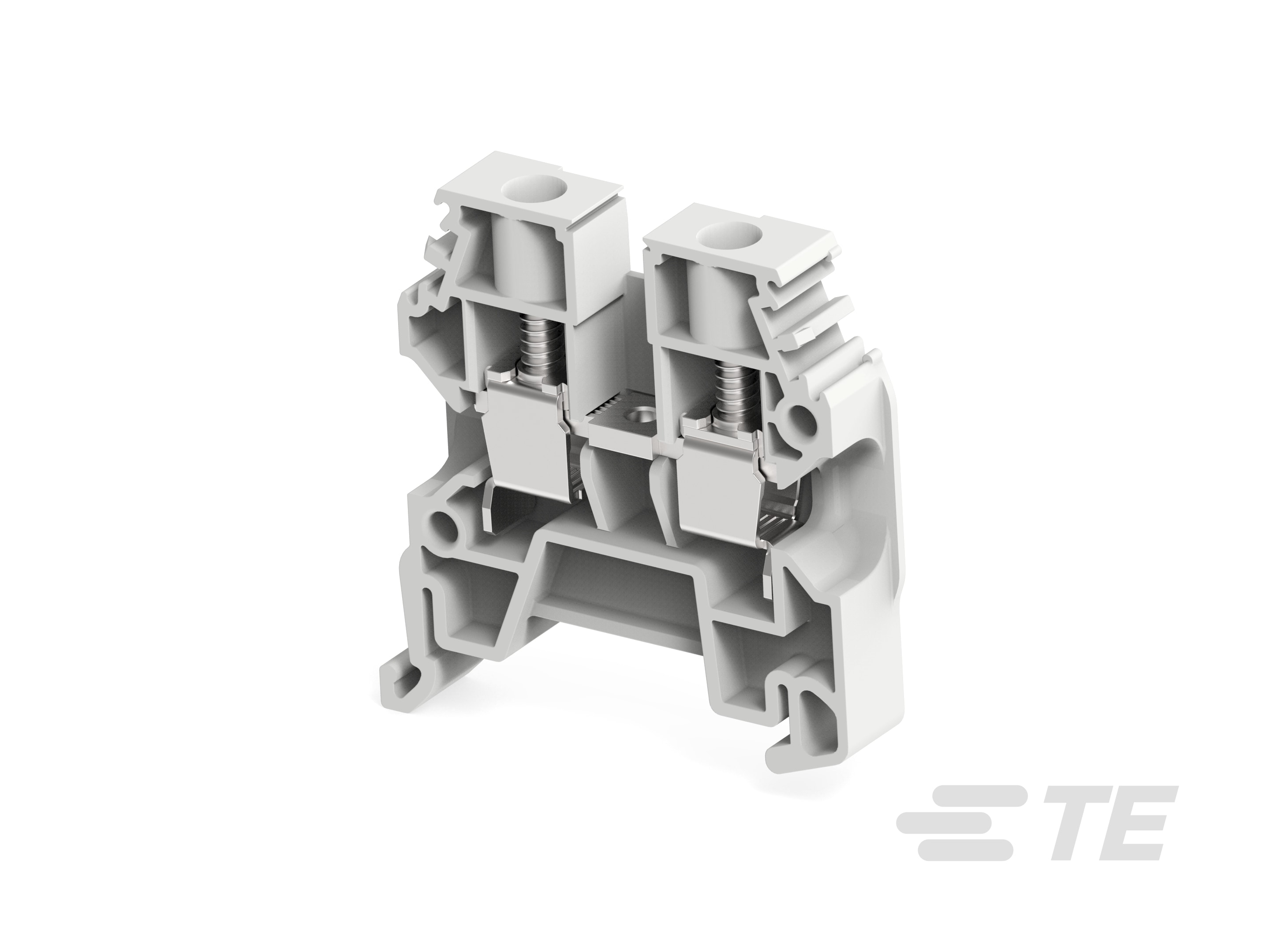

Screw Clamp Terminal Block, Feed-Through, Gray, 10 mm [.39 in] Spacing, Screw Terminal, Signal, DIN Rail, 1000 VAC, 6 AWG, ENTRELEC SNACOMPACT

1SNL610010R0000

Active

Screw Clamp Terminal Block, Feed-Through, Gray, 10 mm [.39 in] Spacing, Screw Terminal, Signal, DIN Rail, 1000 VAC, 6 AWG, ENTRELEC SNACOMPACT

- ENTRELEC
- ENTRELEC SNACOMPACT

TE Internal #: 1SNL610010R0000
TE Internal Description: C10/10

Modular Terminal Block Product Type : Screw Clamp Terminal Block
Block Function : Feed-Through
Primary Product Color : Gray
Product Spacing : 10 mm [ .39 in ]
Termination Method to Wire & Cable : Screw Terminal

See All Features

More Less

Compatible Parts & Tooling

Documents

CAD Files

Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
3D PDF 3D_CVM_CVM_1SNL610010R0000_A.pdf 3D
Customer View Model ENG_CVM_CVM_1SNL610010R0000_A.2d_dxf.zip English
ENG_CVM_CVM_1SNL610010R0000_A.3d_igs.zip English
ENG_CVM_CVM_1SNL610010R0000_A.3d_stp.zip English

Datasheets & Catalog Pages

SNACOMPACT TERMINAL BLOCKS SCREW CLAMP TECHNOLOGY ENG_DS_SNACOMPACT_TERMINAL_BLOCKS_2103.pdf English
C10/10 ENG_DS_1SNL510010R0000_A.pdf English

Product Change Notification

View Product Change Notification Login required to access product change notifications

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Modular Terminal Block Product Type : Screw Clamp Terminal Block

Configuration Features

Number of Circuits : 1
Number of Poles : 2
Gauge Type : B6
Number of Levels : 1
Block Function : Feed-Through

Electrical Characteristics

Short-Time Withstanding Current Rating @ 1s (A): 1200
Voltage Rating (CSA) (V): 600
Voltage Rating (IEC) (V): 1000
Dielectric Withstanding Voltage (Max) (V): 2000
Current Rating (CSA) (A): 59
Current Rating (UL) (A): 59
Current Rating (IEC) (A): 57
Impulse Withstanding Voltage Rating (IEC) (V): 8000
Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V): 600
Operating Voltage (VAC): 1000

Body Features

Product Weight : 7.245 g [ .255 oz ]
Primary Product Color : Gray

Termination Features

Termination Method to Wire & Cable : Screw Terminal

Mechanical Attachment

Tightening Torque (in-lbs): 11.5
Tightening Torque (Nm): 1.3
DIN Rail Mounting Type : TH35-15, TH35-7.5
Connector Mounting Type : DIN Rail

Housing Features

Housing Material : Polyamide 6.6

Dimensions

Product Height : 45.45 mm [ 1.787 in ]
Product Length : 40.5 mm [ 1.592 in ]
Product Width (mm): 10
Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (mm²): .5 – 10
Main Circuit Capacity - 1 Flexible Conductor per Screw Clamp (mm²): .5 – 10
Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (AWG): 20 – 10
Main Circuit Capacity - 1 Non-Insulated Ferrule per Screw Clamp (mm²): .5 – 10
Main Circuit Capacity - 1 Non-Insulated Ferrule per Screw Clamp (AWG): 20 – 6
Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (AWG): 20 – 6
Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²): .5 – 16
Wire Stripping Length : 12 mm [ .47 in ]
Tool Size : 5.5 – 6 mm [ .22 – .24 in ]
Product Depth : 40.5 mm [ 1.592 in ]
Product Spacing : 10 mm [ .39 in ]
Wire Size (AWG): 6
Wire Size (mm²): 10

Usage Conditions

Installation Temperature Range : -5 – 40 °C [ 23 – 104 °F ]
Operating Temperature Range : -55 – 110 °C [ -67 – 230 °F ]

Operation/Application

Circuit Application : Signal

Industry Standards

UL Flammability Rating : UL 94V-0
IP Rating : IP20
