2-130008-1

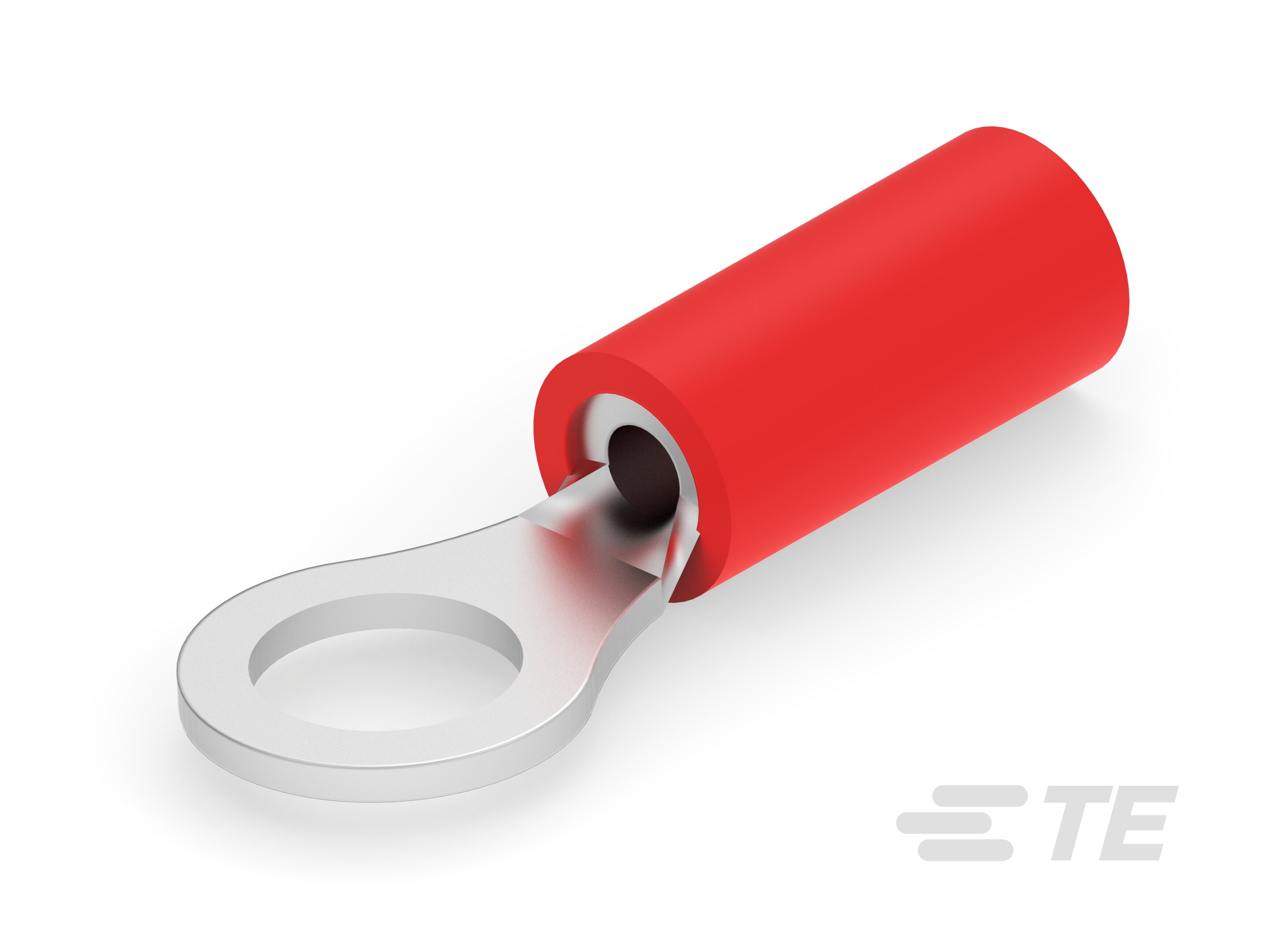

Closed Ring Tongue Terminal, 22 – 16 AWG, M5 Stud Size, 5.2 mm [.205 in] Stud Diameter, Closed Barrel, Straight, Tin, Partially Insulated, PIDG
2-130008-1
Closed Ring Tongue Terminal, 22 – 16 AWG, M5 Stud Size, 5.2 mm [.205 in] Stud Diameter, Closed Barrel, Straight, Tin, Partially Insulated, PIDG
-
- PIDG
- TE Internal #: 2-130008-1
- TE Internal Description: PIDG R 22-16 5MM TAPE
- All PIDG Ring Tongue Terminals (411)
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Wire Size (AWG): 22 – 16
-
Wire Size (mm²): .25 – 1.6
-
Wire Size (CMA): 509 – 3260
-
Stud Size : M5
Documents
Product Drawings
- COSSE PIDG ENG_CD_130008_H.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2-130008-1_H.pdf 3D
- Customer View Model ENG_CVM_CVM_2-130008-1_H.2d_dxf.zip English
- ENG_CVM_CVM_2-130008-1_H.3d_igs.zip English
- ENG_CVM_CVM_2-130008-1_H.3d_stp.zip English
Datasheets & Catalog Pages
- PIDG Terminals and Splices Quick Reference Guide ENG_DS_1-1773934-5_PIDG_QRG_0918.pdf English
