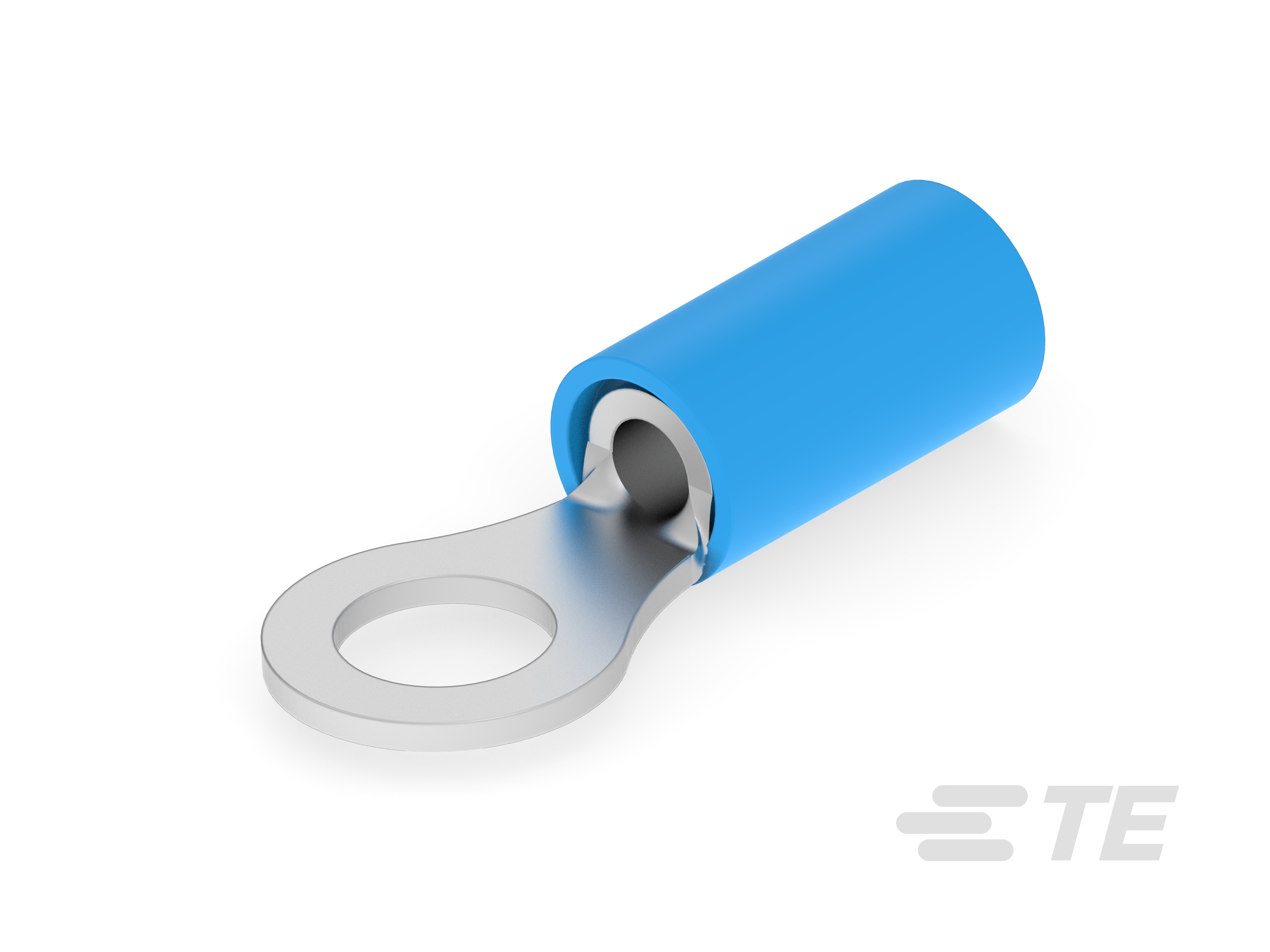

Closed Ring Tongue Terminal, 16 – 14 AWG, M5 Stud Size, 5.26 mm [.207 in] Stud Diameter, Closed Barrel, Straight, Tin, Partially Insulated, PIDG
2-130090-1
Closed Ring Tongue Terminal, 16 – 14 AWG, M5 Stud Size, 5.26 mm [.207 in] Stud Diameter, Closed Barrel, Straight, Tin, Partially Insulated, PIDG
-
- PIDG
- TE Internal #: 2-130090-1
- TE Internal Description: PIDG 16-14 RDE TAP
- All PIDG Ring Tongue Terminals (411)
-
Packaging Method : Tape Mounted
-
Operating Temperature Range : 150 °C [ 302 °F ]
-
Wire Size (AWG): 16 – 14
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Tongue Thickness : .79 mm [ .031 in ]
Documents
Product Drawings
- TERMINAL, RING TONGUE, P.I.D.G. WIRE SIZE: 16-14 AWG ENG_CD_130090_L.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2-130090-1_T.pdf 3D
- Customer View Model ENG_CVM_CVM_2-130090-1_T.2d_dxf.zip English
- ENG_CVM_CVM_2-130090-1_T.3d_igs.zip English
- ENG_CVM_CVM_2-130090-1_T.3d_stp.zip English
Agency Approvals
- CSA Certificate ENG_AAD_CSA_164196_6223_1437861_B.pdf English
