2-130171-1

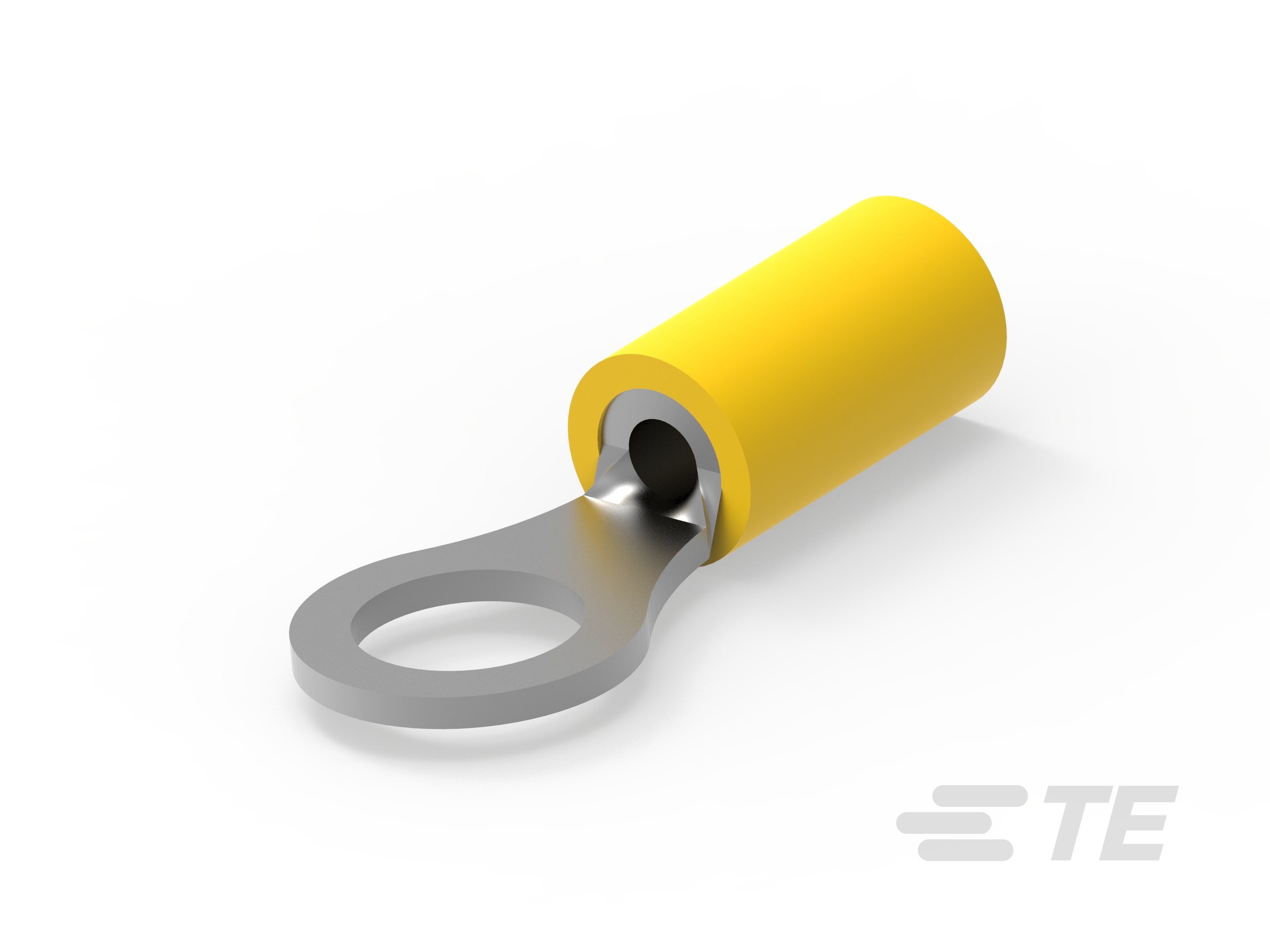

Closed Ring Tongue Terminal, 12 – 10 AWG, M5 Stud Size, 5.25 mm [.207 in] Stud Diameter, Closed Barrel, Straight, Tin, Partially Insulated
2-130171-1
Closed Ring Tongue Terminal, 12 – 10 AWG, M5 Stud Size, 5.25 mm [.207 in] Stud Diameter, Closed Barrel, Straight, Tin, Partially Insulated
-
- PIDG
- TE Internal #: 2-130171-1
- TE Internal Description: PIDG RING.
- All PIDG Ring Tongue Terminals (410)
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Wire Size (AWG): 12 – 10
-
Wire Size (mm²): 2.62 – 6.64
-
Wire Size (CMA): 5180 – 13100
-
Stud Size : M5
Documents
Product Drawings
- TERMINAL RING TONGUE, PIDG, WIRE SIZE 12-10 AWG ENG_CD_130171_B4.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2-130171-1_L.pdf 3D
- Customer View Model ENG_CVM_CVM_2-130171-1_L.2d_dxf.zip English
- ENG_CVM_CVM_2-130171-1_L.3d_igs.zip English
- ENG_CVM_CVM_2-130171-1_L.3d_stp.zip English
Datasheets & Catalog Pages
- PIDG Terminals and Splices Quick Reference Guide ENG_DS_1-1773934-5_PIDG_QRG_0918.pdf English
