Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

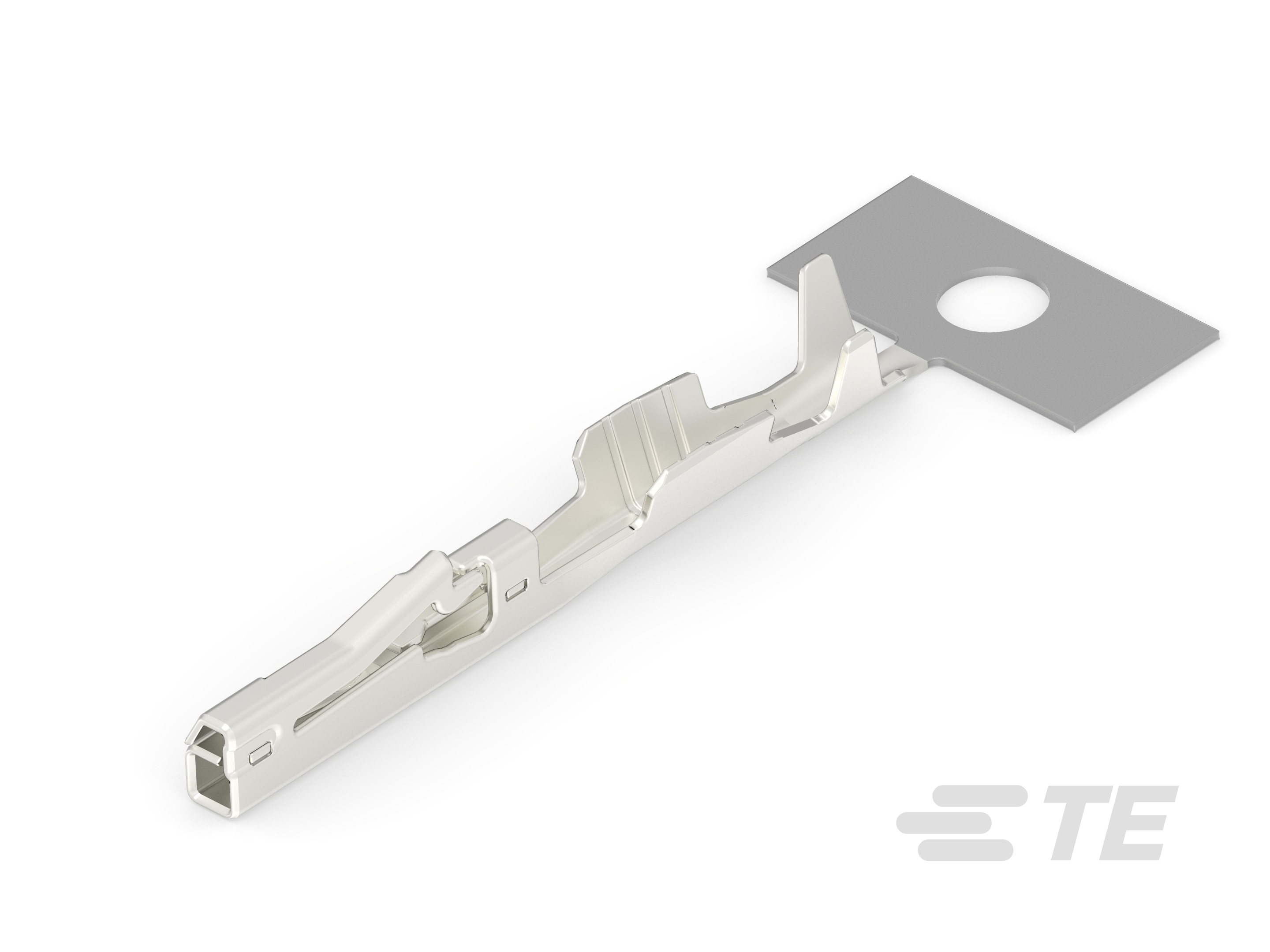

• Primary Locking Feature : Locking Lance

• Sealable : No

• Receptacle Style : 180°

• Interface Plating : Silver (Ag)

• Mating Tab Thickness : .4 mm [ .016 in ]

• Terminal Type : Receptacle

• Mating Tab Width : .5 mm [ .02 in ]

• Contact Fabrication : Stamped & Formed

• Typical Current Rating (A): 6

• Wire Contact Termination Area Plating Material : Tin

• Contact Size : .5mm

• Crimp Type : F-Crimp

• Product Terminates To : Wire

• Termination Method to Wire & Cable : Crimp

• Wire Size (AWG): 24 – 22

• Wire Size Search (mm²): .2, .25, .3

• Compatible Insulation Diameter Range : .95 – 1.3 mm [ .037 – .051 in ]

• Wire Size (mm²): .22 – .35

• Wire Size Search (AWG): 22, 23, 24

• Operating Temperature Range : -40 – 170 °C [ -40 – 338 °F ]

• Operating Temperature (Max) (°C): 80, 85, 90, 100, 105, 110, 120, 125, 130, 140, 145, 150, 170

• Operating Temperature (Max) (°F): 176, 185, 194, 212, 221, 230, 248, 257, 266, 284, 293, 302, 338

• Insulation Option : Uninsulated

• Conforms to KOMAX Automatic Component Insertion Guideline : Yes, per Version 5.0 (March 2018)

• Compatible With Wire Base Material : Copper

• Compatible With Agency/Standards Products : LV214

• Packaging Method : Reel

• Packaging Quantity : 17000
