2-2377473-1

Active

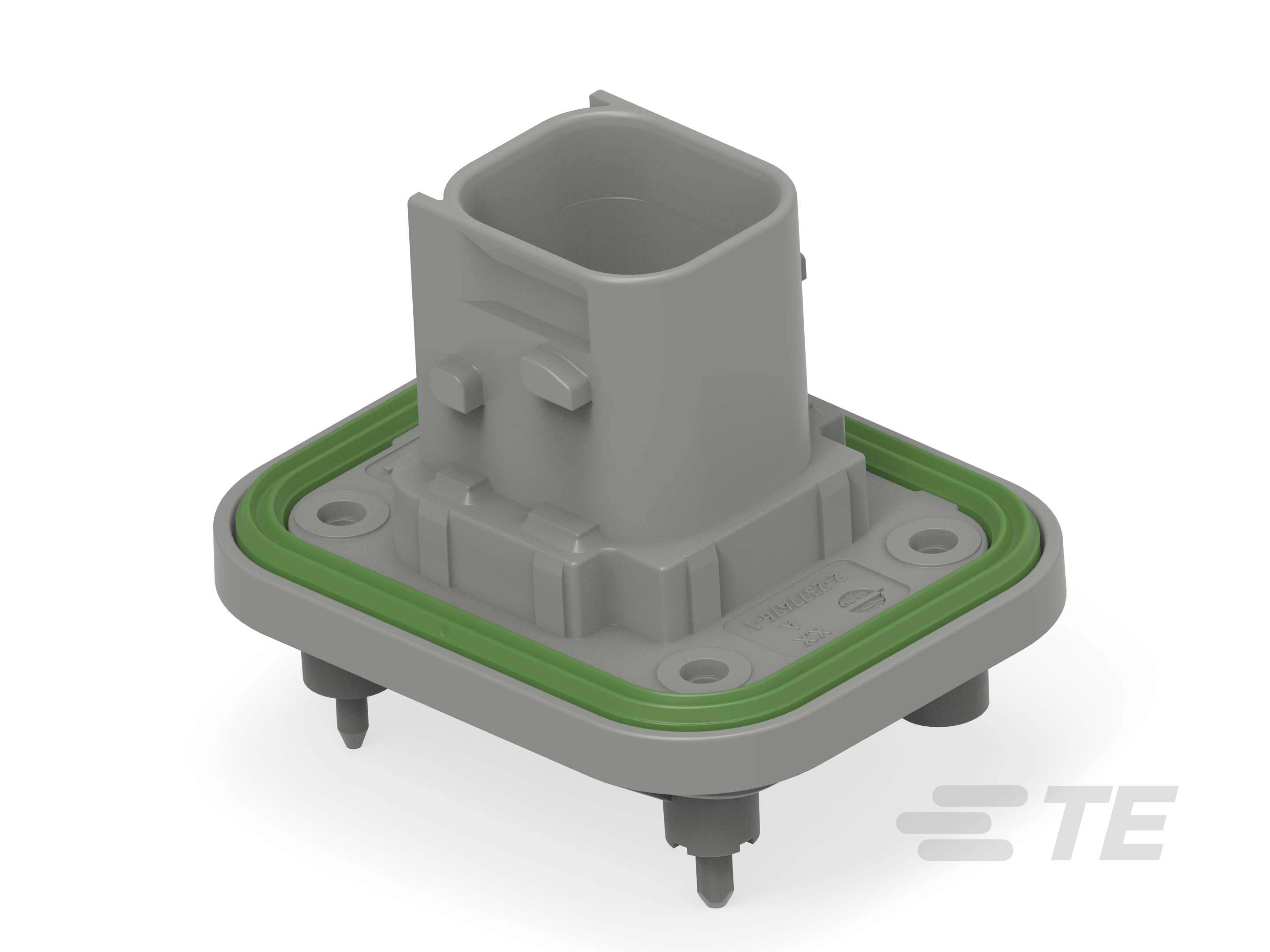

PCB Mount Header, Vertical, Wire-to-Board, 4 Position, 6 mm [.24 in] Centerline, Fully Shrouded, Silver (Ag), Through Hole - Solder, Sealable, Power

2-2377473-1

Active

PCB Mount Header, Vertical, Wire-to-Board, 4 Position, 6 mm [.24 in] Centerline, Fully Shrouded, Silver (Ag), Through Hole - Solder, Sealable, Power

TE Internal #: 2-2377473-1
TE Internal Description: 4POS,TAB2.8X0.8,HDR ASSY,180DEG,COD B
All Heavy Duty Sealed Connector Headers (18)

Packaging Method : Package
Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]
Primary Product Color : Gray
Connector & Contact Terminates To : Printed Circuit Board

See All Features

More Less

Get Free Samples
Compatible Parts & Tooling

Documents

Product Drawings

4POS ,TAB 2.8X0.8, HDR ASSY, 180DEG 4pol, Tab 2.8x0.8, Stiftwanne, 180 Grad ENG_CD_2377473_A3.pdf English

CAD Files

Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
3D PDF 3D_CVM_CVM_2-2377473-1_A.pdf 3D
Customer View Model ENG_CVM_CVM_2-2377473-1_A.2d_dxf.zip English
ENG_CVM_CVM_2-2377473-1_A.3d_igs.zip English
ENG_CVM_CVM_2-2377473-1_A.3d_stp.zip English

Product Specifications

Application Specification ENG_SS_114-94684_A1.pdf English
Product Specification ENG_SS_108-94808_A.pdf English

Product Change Notification

View Product Change Notification Login required to access product change notifications

Features

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

Connector & Contact Terminates To : Printed Circuit Board
Sealable : Yes
Connector System : Wire-to-Board
PCB Connector Assembly Type : PCB Mount Header
Header Type : Fully Shrouded

Configuration Features

Number of Positions : 4
PCB Mount Orientation : Vertical
Number of Rows : 2

Body Features

Primary Product Color : Gray
Connector & Keying Code : B

Contact Features

Contact Mating Area Plating Material : Silver (Ag)
Contact Current Rating (Max) (A): 20
Contact Type : Tab

Mechanical Attachment

Connector Mounting Type : Board Mount
PCB Mount Alignment : With
PCB Mount Retention : With
Mating Alignment : With

Housing Features

Centerline (Pitch) : 6 mm [ .24 in ]

Usage Conditions

Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]
Operating Temperature (Max) : 140 °C [ 284 °F ]

Operation/Application

Circuit Application : Power

Industry Standards

UL Flammability Rating : UL 94V-0

Packaging Features

Packaging Method : Package
Packaging Quantity : 1
