2-320577-3

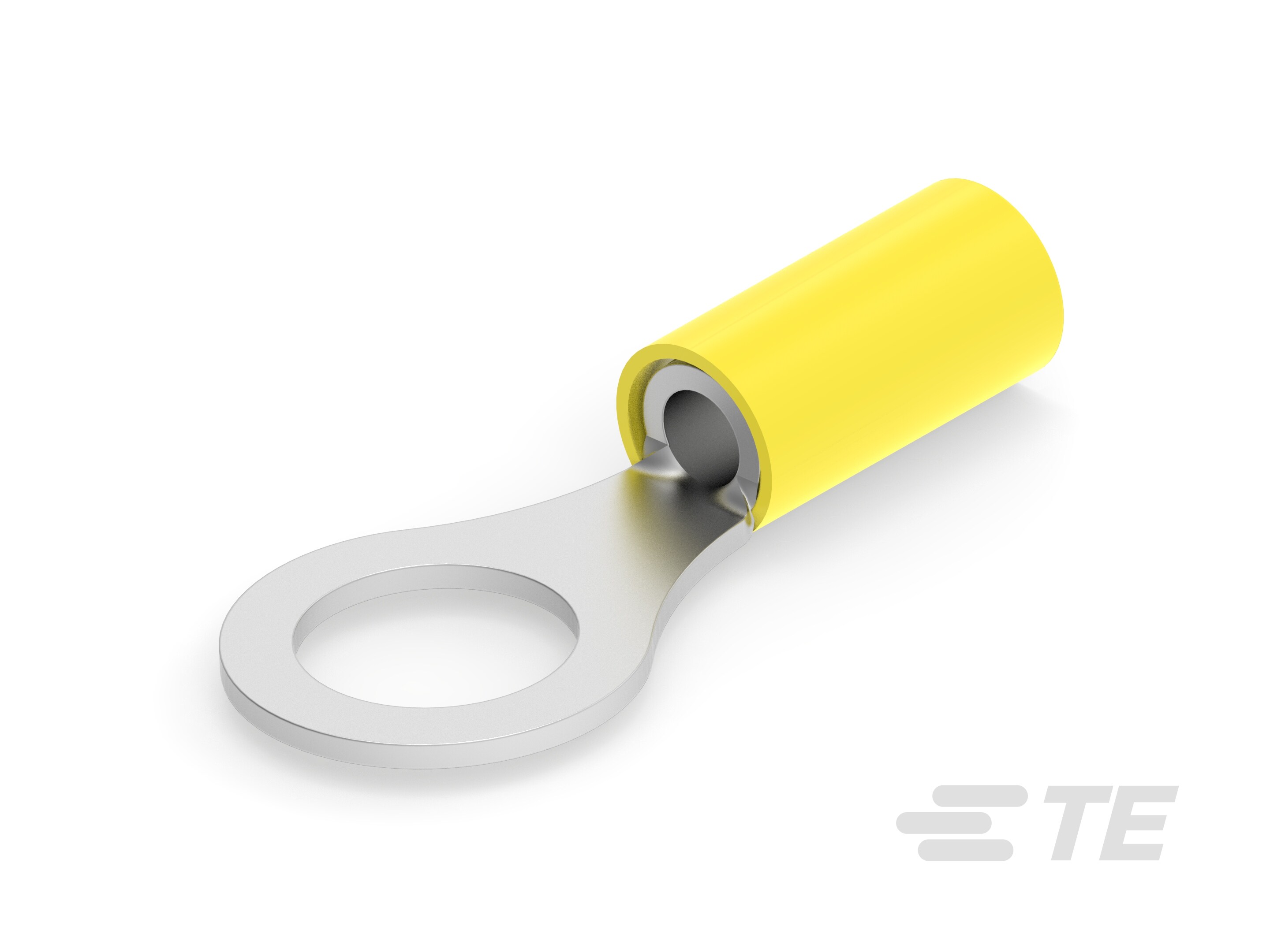

Closed Ring Tongue Terminal, 12 – 10 AWG, 3/8 Stud Size, 9.53 mm [.375 in] Stud Diameter, Closed Barrel, Straight, Tin, Partially Insulated
2-320577-3
Closed Ring Tongue Terminal, 12 – 10 AWG, 3/8 Stud Size, 9.53 mm [.375 in] Stud Diameter, Closed Barrel, Straight, Tin, Partially Insulated
-
- PIDG
- TE Internal #: 2-320577-3
- TE Internal Description: TERMINAL,PIDG R 12-10 3/8
- All PIDG Ring Tongue Terminals (410)
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Wire Size (AWG): 12 – 10
-
Wire Size (mm²): 3 – 6
-
Wire Size (CMA): 5180 – 13100
-
Stud Size : 3/8
Documents
Product Drawings
- TERMINAL, RING TONGUE, PIDG (12-10 AWG) PIDG IR (12 & 10 AWG) ENG_CD_320577_P4.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2-320577-3_U.pdf 3D
- Customer View Model ENG_CVM_CVM_2-320577-3_U.2d_dxf.zip English
- ENG_CVM_CVM_2-320577-3_U.3d_igs.zip English
- ENG_CVM_CVM_2-320577-3_U.3d_stp.zip English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-2049-4_P.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_E13288_19791001_C.pdf English
- CSA Certificate ENG_AAD_CSA_164196_6223_1437861_B.pdf English
