Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

• Military Part Class : Class II

• Barrel Type : Closed

• Terminal Orientation : Straight

• Terminal Plating Material : Tin

• Packaging Quantity : 1

• Packaging Method : Loose Piece

• Stripe Color : Blue

• Product Weight (g): .468

• Government Qualified Terminal : No

• Voltage Rating (V): 300

• Wire Insulation Support : With

• Number of Holes : 1

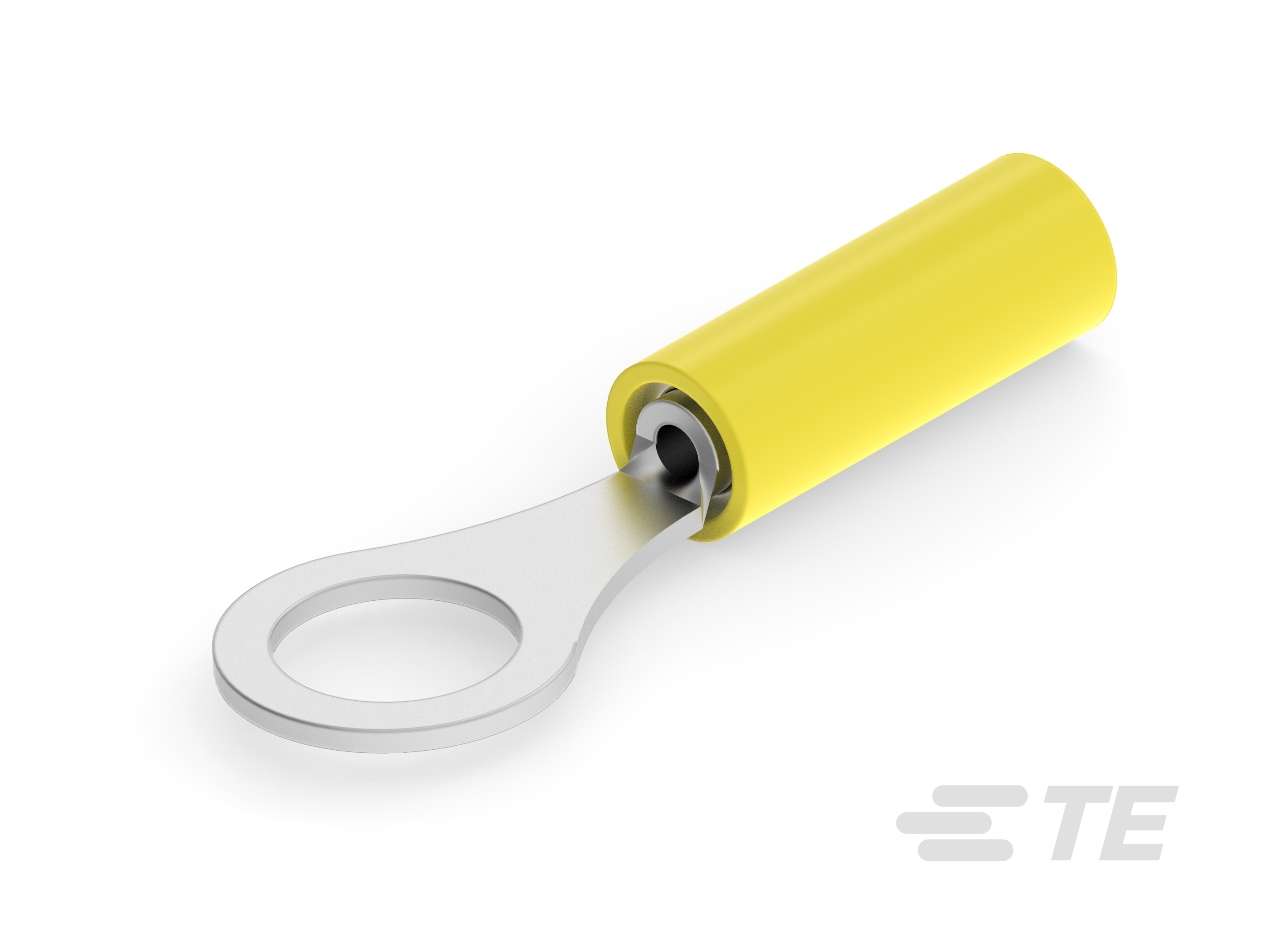

• Ring Terminal Product Type : Closed Ring Tongue Terminal

• Stud Size : M4

• Sealable : No

• Wire Insulation Support Retention Type : Insulation Restriction

• Wire Size (AWG): 24

• Wire Size (CMA): 475

• Stud Diameter : 4.34 mm [ .171 in ]

• Tongue Thickness : .79 mm [ .031 in ]

• Product Length : 18.8 mm [ .74 in ]

• Compatible Insulation Diameter (Max) : 1.4 mm [ .055 in ]

• Compatible Insulation Diameter Range : .79 – 1.4 mm [ .031 – .055 in ]

• Insulation Option : Partially Insulated

• Compatible With Wire Base Material : Copper

• Compatible With Wire Plating Material : Tin
