2-36160-1

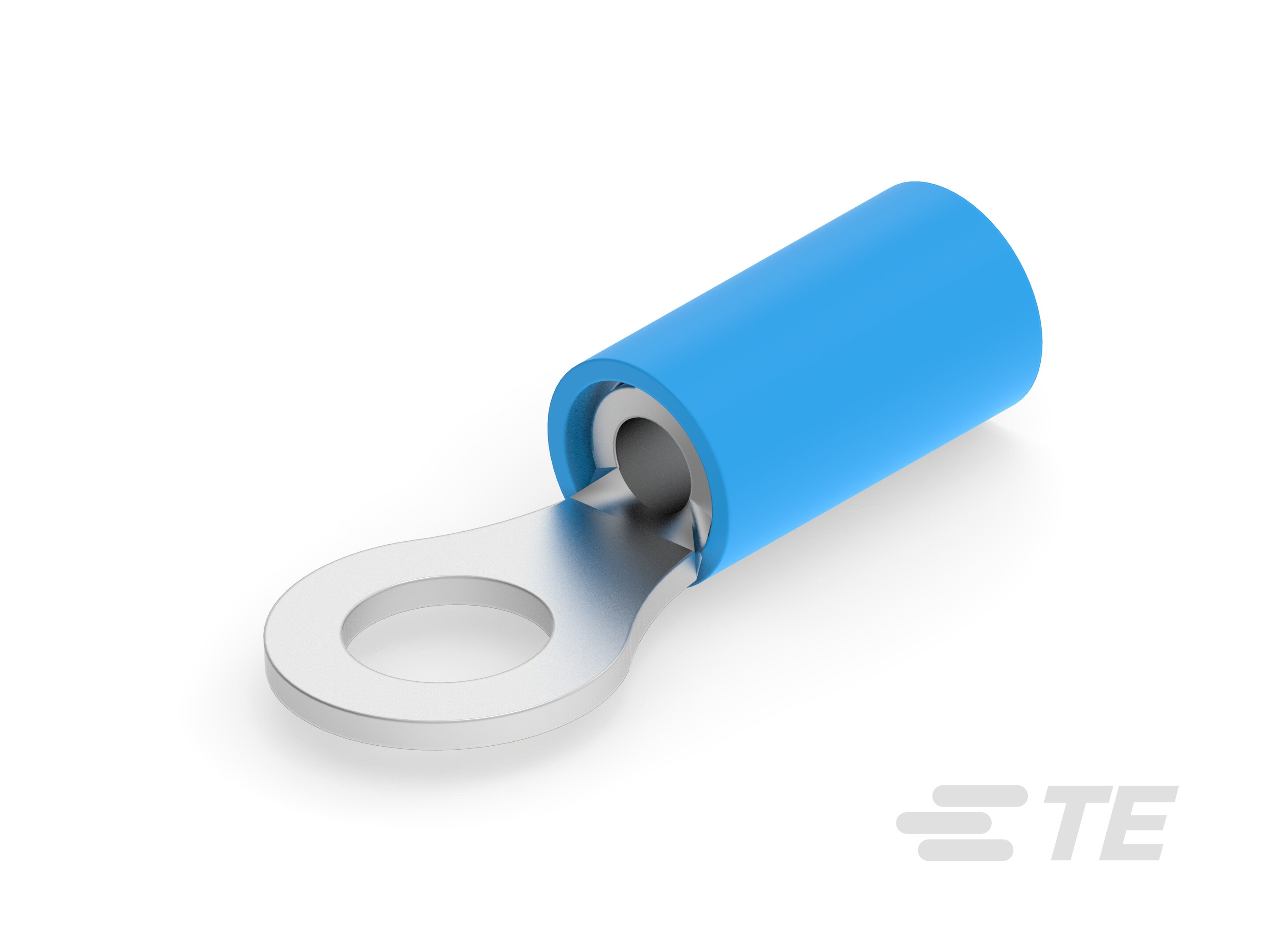

Closed Ring Tongue Terminal, 16 – 14 AWG, #10 Stud Size, 5 mm [.197 in] Stud Diameter, Closed Barrel, Straight, Tin, Partially Insulated
2-36160-1
Closed Ring Tongue Terminal, 16 – 14 AWG, #10 Stud Size, 5 mm [.197 in] Stud Diameter, Closed Barrel, Straight, Tin, Partially Insulated
-
- PIDG
- TE Internal #: 2-36160-1
- TE Internal Description: PIDG 16-14 R 10; TAPE
- All PIDG Ring Tongue Terminals (411)
-
Packaging Method : Tape Mounted
-
Operating Temperature Range : 105 °C [ 221 °F ]
-
Wire Size (AWG): 16 – 14
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Tongue Thickness : .79 mm [ .031 in ]
Documents
Product Drawings
- TERMINAL, RING TONGUE, PIDG , WIRE SIZE: 16-14 AWG ENG_CD_36160_P.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2-36160-1_W.pdf 3D
- Customer View Model ENG_CVM_CVM_2-36160-1_W.2d_dxf.zip English
- ENG_CVM_CVM_2-36160-1_W.3d_igs.zip English
- ENG_CVM_CVM_2-36160-1_W.3d_stp.zip English
Agency Approvals
- UL Report ENG_AAD_UL_E13288_19791001_C.pdf English
