2102096-1

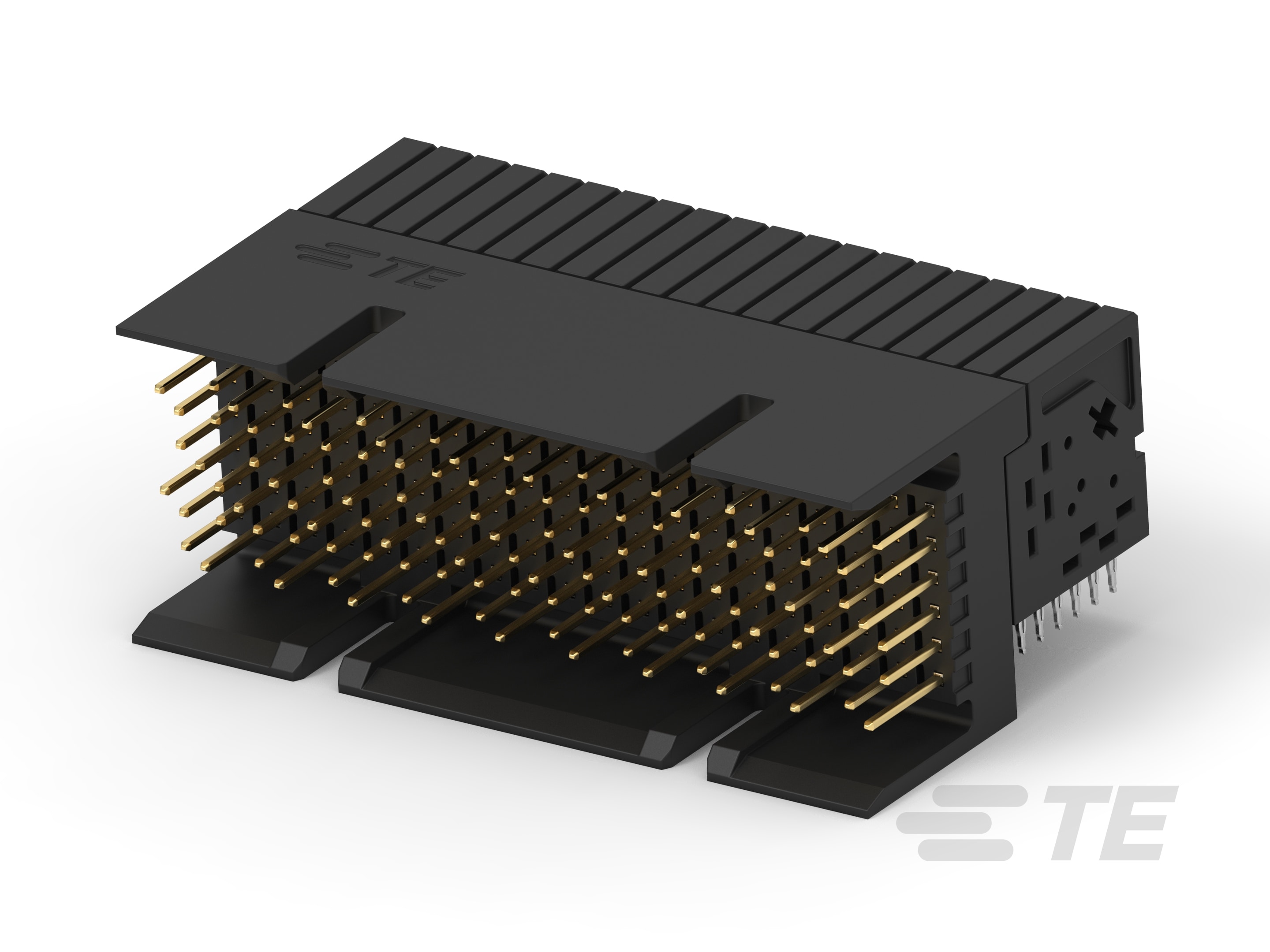

120 Position High Speed Backplane Connector, 6 Row, 20 Column, PCB Mount Header, Right Angle, Partially Shrouded, .08 mm [1.9 in] Centerline
2102096-1
120 Position High Speed Backplane Connector, 6 Row, 20 Column, PCB Mount Header, Right Angle, Partially Shrouded, .08 mm [1.9 in] Centerline
-
- Fortis Zd
- TE Internal #: 2102096-1
- TE Internal Description: Fortis Zd 2Pr 20Col R/A Cent Module Assy
- All Backplane Connector: Plug-in module (30)
-
Number of Positions : 120
-
Row-to-Row Spacing : 1.4 mm [ .05 in ]
-
Mating Alignment : Without
-
Number of Rows : 6
-
Number of Columns : 20
Documents
Product Drawings
- Fortis Zd, 2-PAIR, 20-COLUMN, R/A, CENTER MODULE ASSEMBLY ENG_CD_2102096_B.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2102096-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2102096-1_A.2d_dxf.zip English
- ENG_CVM_CVM_2102096-1_A.3d_igs.zip English
- ENG_CVM_CVM_2102096-1_A.3d_stp.zip English
Datasheets & Catalog Pages
- Fortis Zd Connector Brochure ENG_DS_1-1773458-7_fortis_A1.pdf English
- Fortis Zd LRM ENG_DS_1-1773857-2_fortiszdlrm_0615.pdf English
Product Specifications
- Application Specification ENG_SS_114-13267_F.pdf English
- Product Specification ENG_SS_108-2409_D.pdf English
