Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

• Bolt Head Size (Across Flats) (mm): 13

• Inside Diameter Range (mm): 30, 33

• Compatible Conductor Cross-Section Range (mm²): 500 – 630

• Compatible With Approved Standards Products : IEC 61238-1 Class A

• Product Availability : China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas

• Installation Technology : Shear Bolt

• Voltage Class (kV): ≤ 42

• Compatible Conductor Material : Copper, Aluminum

• Conductor Type : Solid, Stranded, Flexible

• Primary Product Material : Aluminum Alloy

• Blocked : Yes

• Number of Bolts : 6

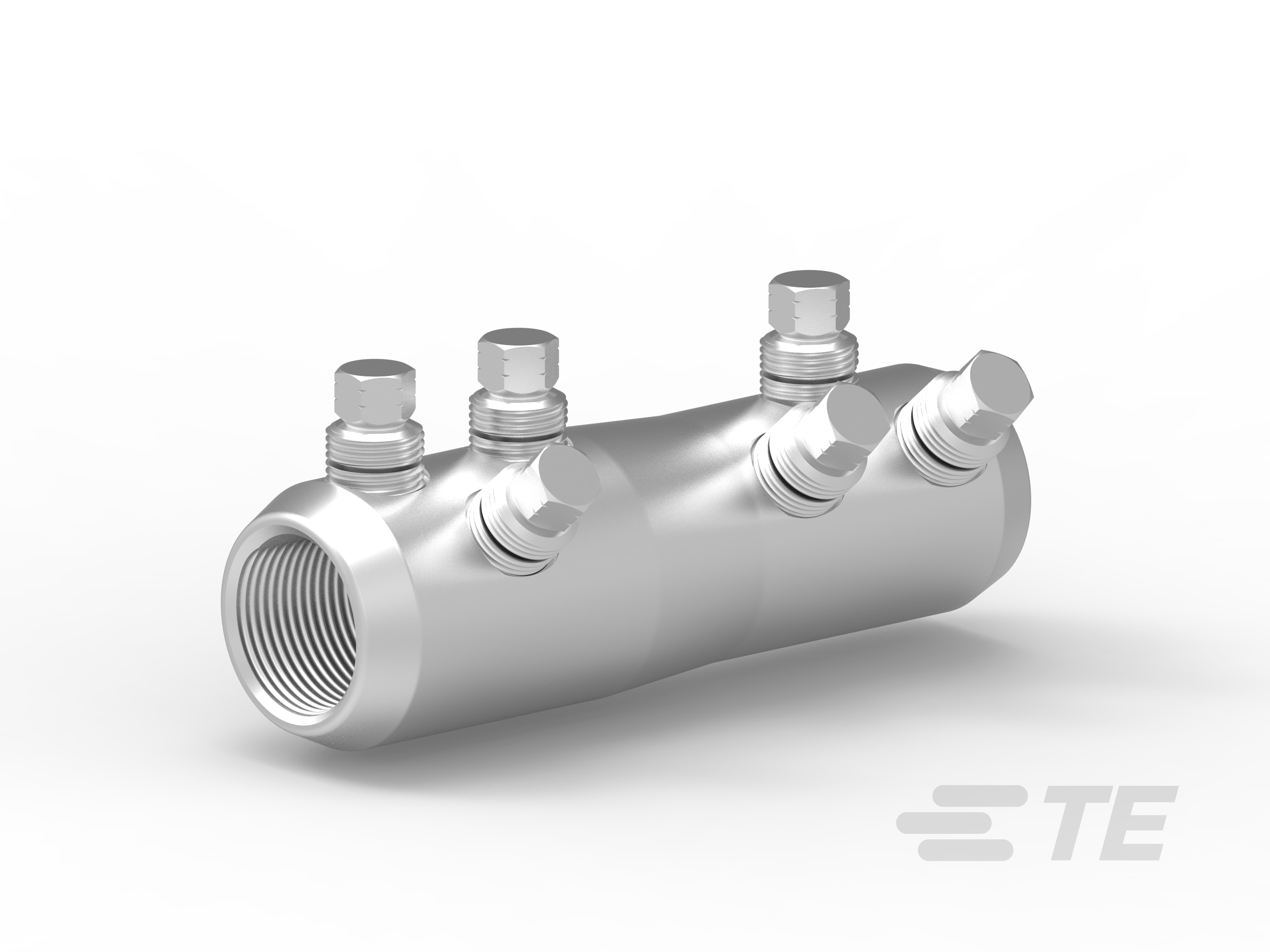

• Mechanical Connector Product Type : Connector
