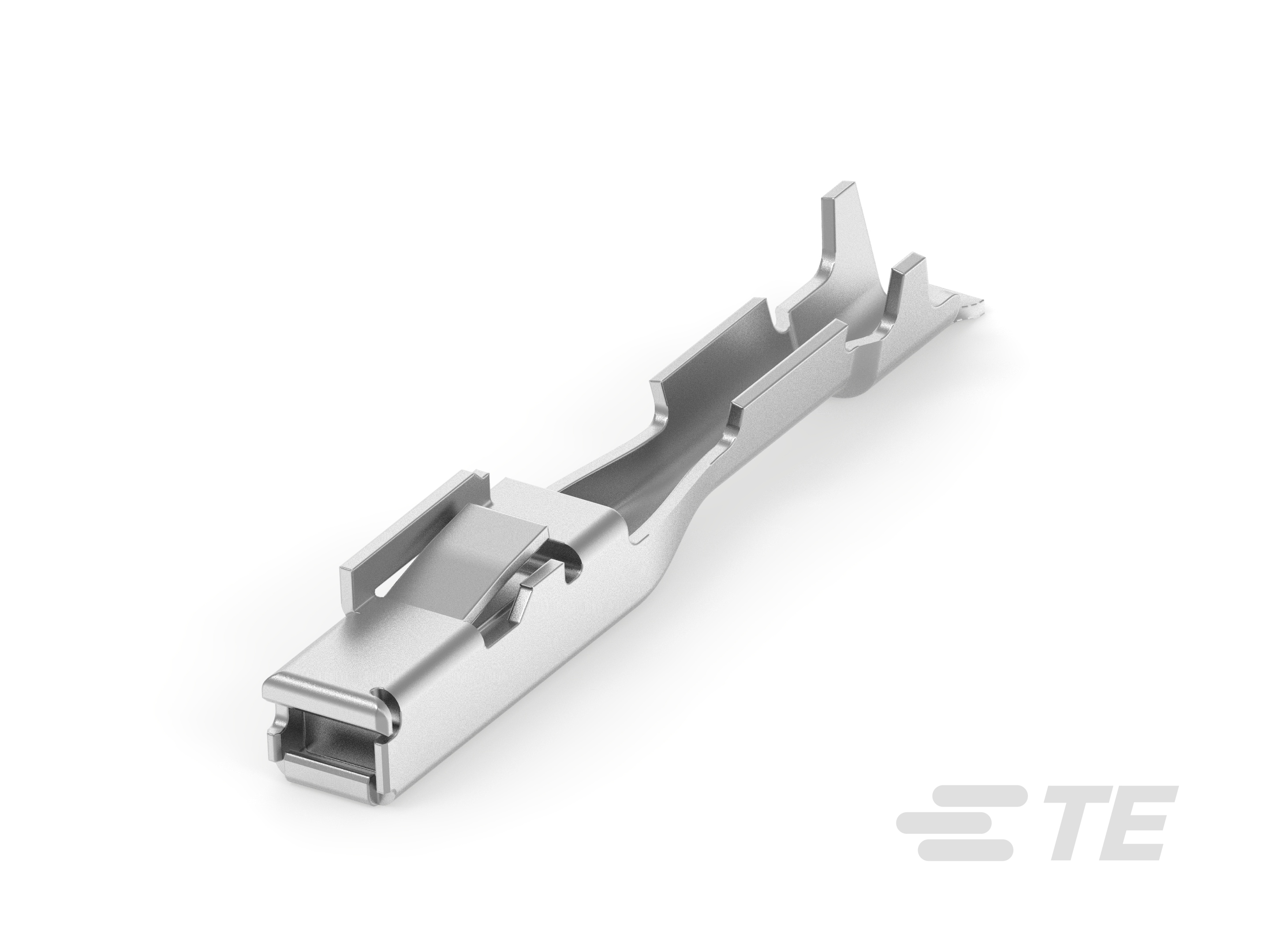

2109006-3
Receptacle, Mating Tab Width 1.5 mm [.059 in], Tab Thickness .64 mm [.025 in], 18 – 16 AWG Wire Size, Multilock Connector System, Automotive Terminals
2109006-3
Receptacle, Mating Tab Width 1.5 mm [.059 in], Tab Thickness .64 mm [.025 in], 18 – 16 AWG Wire Size, Multilock Connector System, Automotive Terminals
-
- Multilock Connector System
- TE Internal #: 2109006-3
- TE Internal Description: 060 REC(M) CONT
- All MULTILOCK, RECEPTACLE AND TAB (81)
-
Packaging Method : Reel
-
Operating Temperature Range : -40 – 105 °C [ -40 – 221 °F ]
-
Interface Plating : Tin (Sn)
-
Operating Temperature (Max) (°C): 100, 105, 85, 80, 90
-
Operating Temperature (Max) (°F): 212, 221, 176, 194, 185
-
Wire Size (AWG): 18 – 16
Documents
Product Drawings
- 060 RECEPACLE CONTACT ENG_CD_2109006_A5.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2109006-3_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2109006-3_A.2d_dxf.zip English
- ENG_CVM_CVM_2109006-3_A.3d_igs.zip English
- ENG_CVM_CVM_2109006-3_A.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-61036_C.pdf English
- Product Specification ENG_SS_108-61116_A1.pdf English
Instruction Sheets
- Instruction Sheet (non U.S.) ENG_SS_411-61008_A.pdf English
