2112046-1

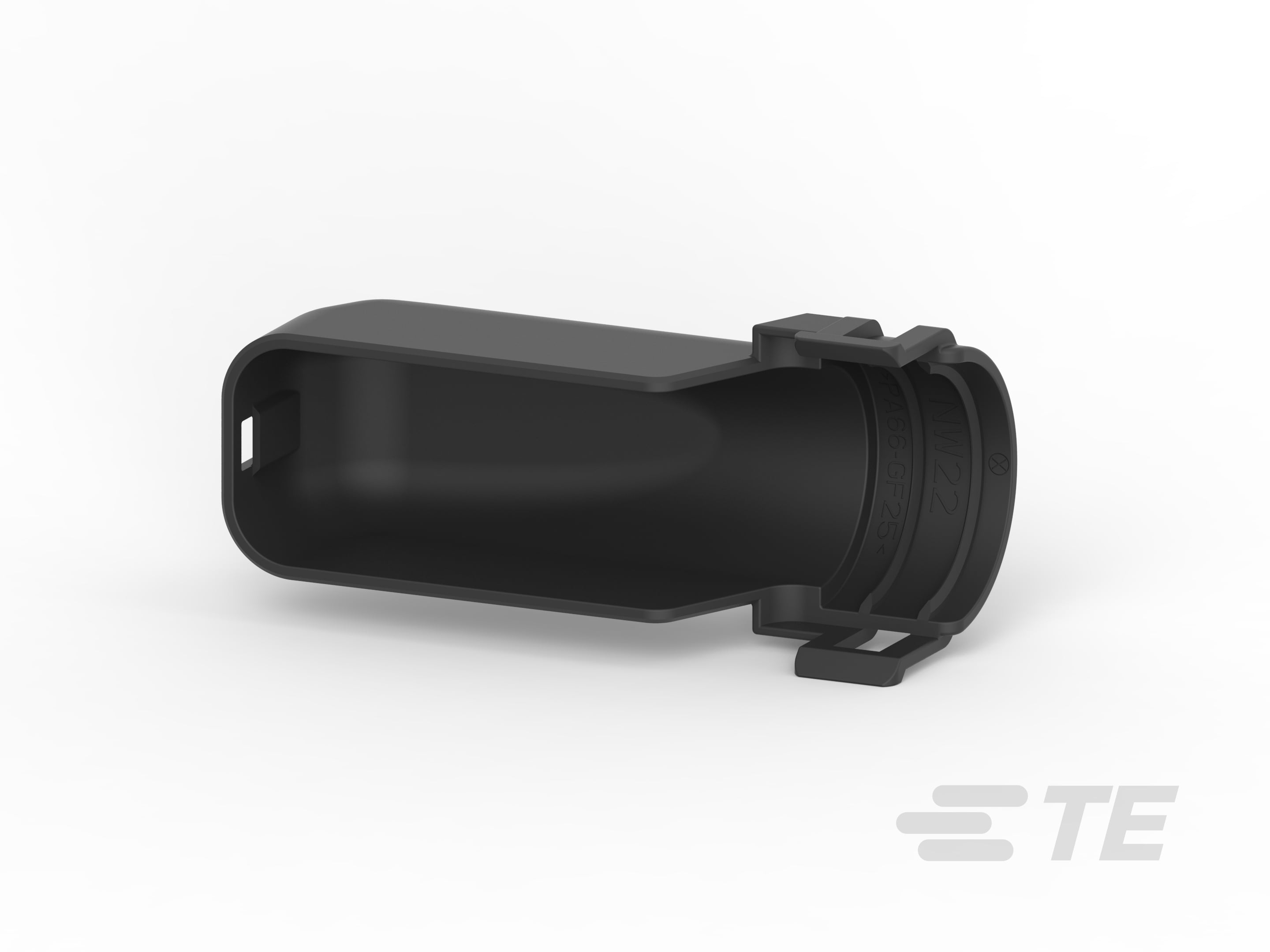

Cover - Cable Exit, Cable Exit Angle 90°, Black, PA GF, 26 Position, -40 – 140 °C [-40 – 284 °F], LEAVYSEAL, Automotive Connector Caps & Covers
2112046-1
Cover - Cable Exit, Cable Exit Angle 90°, Black, PA GF, 26 Position, -40 – 140 °C [-40 – 284 °F], LEAVYSEAL, Automotive Connector Caps & Covers
-
- AMP
- LEAVYSEAL
- TE Internal #: 2112046-1
- TE Internal Description: COVER,90,FOR 26POS
- All LEAVYSEAL Connector Backshells (13)
-
Packaging Method : Box
-
Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]
-
Primary Product Color : Black
-
Primary Product Material : PA GF
-
Operating Temperature (Max) (°C): 100, 110, 120, 125, 80, 90, 130, 70, 85, 105, 140, 75
-
Operating Temperature (Max) (°F): 266, 257, 248, 230, 221, 212, 176, 167, 158, 284, 185, 194
Documents
Product Drawings
- COVER FOR 26 POS. HOUSING Abdeckkappe fuer 26 pol. Gehaeuse ENG_CD_2112046_A1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2112046-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2112046-1_A.2d_dxf.zip English
- ENG_CVM_CVM_2112046-1_A.3d_igs.zip English
- ENG_CVM_CVM_2112046-1_A.3d_stp.zip English
Datasheets & Catalog Pages
- LEAVYSEAL CONNECTORS ENG_CS_1-1773972-7_A.pdf English
- ICT Terminals and Connectors Catalogue ENG_DS_1-1773950-7_A.pdf English
- CONNECTOR SELECTOR ENG_DS_1-1773962-8_A.pdf English
Product Specifications
- Application Specification GER_SS_114-94010_A.pdf German
- Product Specification ENG_SS_108-94214_A1.pdf English
