View products below to see detailed pricing

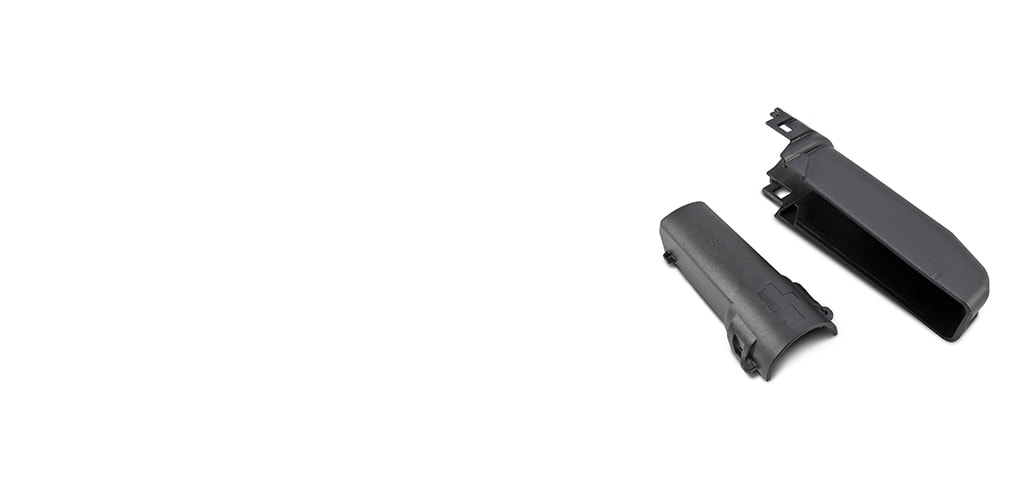

LEAVYSEAL Connector Backshells

LEAVYSEAL

LEAVYSEAL Connector Backshells are designed for industrial and commercial applications, offering protection with IP69K ratings against water, dust, and contaminants. They come in various configurations and support multiple wire exit sizes. Compatible with different LEAVYSEAL connector housings, these backshells provide strain relief and mechanical protection, making them suitable for secure electrical connections in demanding environments.

More Less

Product Features

Packaging Method : Carton, Box, Bag
Operating Temperature Range (°C): -40 – 120, -40 – 140, -40 – 100, -40 – 130
Operating Temperature Range (°F): -40 – 248, -40 – 284, -40 – 212, -40 – 266
Primary Product Color : Black
Primary Product Material : PA GF, PA, PBT GF
Strain Relief : With, Without

Available from

Product	TE Part #	Documents	Protection & Strain Relief Accessory Type	Cable Exit Angle	Strain Relief	Primary Product Material	Number of Positions	Operating Temperature (Max)	Operating Temperature Range
COVER,90,FOR 26POS Buy on te.com	2112046-1	Product Drawing 3D PDF	Cover - Cable Exit	90°	Without	PA GF	26	100 °C, 110 °C, 120 °C, 125 °C, 80 °C, 90 °C, 130 °C, 70 °C, 85 °C, 105 °C, 140 °C, 75 °C	-40 – 140 °C
COVER,NW29 Buy on te.com	2141345-1	Product Drawing 3D PDF	Cover - Cable Exit	90°	With	PA	92	90 °C, 100 °C, 105 °C, 85 °C, 120 °C, 110 °C, 70 °C, 80 °C, 75 °C	-40 – 120 °C
COVER F.15P REC-HSG Buy on te.com	9-1394049-1	Product Drawing 3D PDF	Cover - Cable Exit	90°	With	PA GF	15	105 °C, 75 °C, 80 °C, 90 °C, 70 °C, 100 °C, 110 °C, 120 °C, 85 °C	-40 – 120 °C
COVER,90,FOR 21POS. Buy on te.com	2112167-1	Product Drawing 3D PDF	Cover - Cable Exit	90°	With	PA	21	85 °C, 105 °C, 120 °C, 110 °C, 75 °C, 100 °C, 70 °C, 90 °C, 80 °C	-40 – 120 °C
COVER FOR 62POS.REC.HSG	1418882-1	Product Drawing 3D PDF	Cover - Cable Exit	90°	With	PA GF	62	120 °C, 85 °C, 70 °C, 80 °C, 90 °C, 105 °C, 110 °C, 100 °C, 75 °C	-40 – 120 °C
COVER,FOR 22POS Buy on te.com	2112452-1	Product Drawing 3D PDF	Cover - Cable Exit	90°	With	PA GF	22	70 °C, 90 °C, 130 °C, 105 °C, 85 °C, 125 °C, 120 °C, 110 °C, 100 °C, 80 °C, 75 °C	-40 – 130 °C
COVER,90 Buy on te.com	1823500-1	Product Drawing 3D PDF	Cover - Cable Exit	90°	With	PA GF	62	70 °C, 90 °C, 130 °C, 140 °C, 105 °C, 85 °C, 125 °C, 120 °C, 110 °C, 100 °C, 80 °C, 75 °C	-40 – 140 °C
COVER,90,FOR 46POS Buy on te.com	2112233-1	Product Drawing 3D PDF	Cover - Cable Exit	90°	With	PA GF	46	110 °C, 75 °C, 100 °C, 85 °C, 70 °C, 90 °C, 80 °C, 120 °C, 105 °C	-40 – 120 °C
COVER,90,DEGREE	1703997-1	Product Drawing 3D PDF	Cover - Cable Exit	90°	Without	PA	92	90 °C, 70 °C, 105 °C, 85 °C, 120 °C, 110 °C, 100 °C, 80 °C, 75 °C	-40 – 120 °C
VERSCHL-KAP21P,DICH	1-1394052-1	Product Drawing 3D PDF	Cover	-	Without	PA GF	21	90 °C, 100 °C, 70 °C, 85 °C, 80 °C, 75 °C	-40 – 100 °C
COVER F.21P REC-HSG	1394050-2	Product Drawing 3D PDF	Cover	90°	With	PA GF	21	105 °C, 120 °C, 110 °C, 100 °C, 70 °C, 85 °C, 90 °C, 80 °C, 75 °C	-40 – 120 °C
COVER FOR 62 POS TAB HEADER ASSY	1718295-1	Product Drawing 3D PDF	Cover	-	Without	PBT GF	62	110 °C, 100 °C, 70 °C, 90 °C, 105 °C, 85 °C, 80 °C, 75 °C, 120 °C	-40 – 120 °C
COVER F.21P REC-HSG Buy on te.com	9-1394050-1	Product Drawing 3D PDF	Cover - Cable Exit	90°	With	PA GF	21	75 °C, 80 °C, 90 °C, 85 °C, 105 °C, 120 °C, 110 °C, 100 °C, 70 °C	-40 – 120 °C

Overview

Key Benefits

LEAVYSEAL Connector Backshells

Enhanced Environmental Protection: Offers resistance to water and dust ingress with IP69K rating, suitable for challenging conditions.

Flexible Installation: Supports various wire exit sizes and configurations, including 90° and 180° exits, for diverse application needs.

Durable Construction: Made from high-quality, flame-retardant materials, providing reliability in harsh environments.

Mechanical Protection: Provides strain relief and protection against physical damage, extending the lifespan of connections.

Versatile Compatibility: Compatible with multiple LEAVYSEAL connector housings, accommodating different positions and applications.

Streamlined Design: Features a clean, professional look while maintaining functionality, suitable for visible installations.

Maintenance Reduction: Robust design reduces the frequency of maintenance and repairs, lowering operational costs.

Improved Cable Management: Available in smooth and ribbed variants, preventing damage to cable jackets and accommodating corrugated tubing.

Temperature Resilience: Operates effectively across a wide temperature range, supporting applications in extreme climates.

Accessory Integration: Compatible with additional accessories like locking slides and sealing covers for added functionality and protection.

To achieve an IP6K9K rating for LEAVYSEAL connectors, a backshell must be used.

Key Features

LEAVYSEAL Connector Backshells

Feature
IP69K Rating	Provides superior resistance to water and dust ingress, suitable for extreme environmental conditions.
Wire Exit Sizes	Available with NW 13, NW 17, NW 22, NW 26, and NW 29 wire exits to accommodate various cable diameters.
Exit Configurations	Available for 90°
Flame-Retardant Materials	Constructed from UL 94 V-0 rated materials for enhanced safety in fire-prone environments.
Compatible Connector Housings	Fits LEAVYSEAL housings with 15, 22, 26, 39, 46, 62, and 92 positions, enabling broad compatibility.
Smooth and Ribbed Variants	Smooth exits prevent damage to cable jackets, while ribbed exits accommodate corrugated tubing.
Temperature Tolerance	Functions in a wide temperature range from -40°C to +140°C, suitable for diverse applications.
Mechanical Protection	Provides strain relief and protects against physical damage and environmental stress.

Catalog

LEAVYSEAL Catalog (English)

Infographic

LEAVYSEAL Infographic (English)

Infographic

LEAVYSEAL Extension Infographic (English)

Real World Applications

LEAVYSEAL Connector Backshells

Heavy-Duty Trucks: Applied in engine compartments and undercarriages, where connectors need to handle exposure to oil, dirt, and vibration, providing secure and protected electrical connections.

Agricultural Equipment: Used in tractors, combines, and other agricultural machinery to safeguard electrical connections from dust, moisture, and harsh weather conditions, enhancing operational reliability.

Construction Vehicles: Suitable for use in excavators, loaders, and bulldozers, where electrical connections are exposed to heavy mechanical loads, mud, and dust, helping to maintain the integrity of the electrical systems.

Public Transportation: Integrated into buses and trains for various systems such as lighting, climate control, and passenger information systems, protecting against the rigors of daily operation and environmental stress.

Mining Equipment: Essential for mining trucks and drilling rigs, where connectors face extreme conditions such as heavy vibrations, dust, and moisture, providing protection and reliability for electrical systems.

Utility Vehicles: Used in emergency vehicles and service trucks, where backshells protect electrical connections in diverse environments, from urban settings to rural areas, supporting reliable vehicle operation and equipment functionality.

FAQ

LEAVYSEAL Connector Backshells

Q: What makes LEAVYSEAL Connector Backshells suitable for harsh environments?

A: LEAVYSEAL Connector Backshells offer IP69K ratings, providing robust protection against water, dust, and other contaminants. This makes them suitable for applications where connectors are exposed to extreme environmental conditions, such as in heavy-duty trucks, agricultural machinery, and construction vehicles.

Q: How do LEAVYSEAL Connector Backshells improve the durability of electrical connections?

A: These backshells are constructed from flame-retardant, high-quality materials that withstand harsh environments and high temperatures. They help prevent physical damage to cables and connectors, thereby extending the lifespan of electrical connections in demanding applications.

Q: What are the advantages of using LEAVYSEAL Connector Backshells in industrial and commercial transportation?

A: LEAVYSEAL Connector Backshells provide mechanical protection and strain relief, reducing maintenance needs and operational downtime. Their compatibility with various accessories and their ability to handle extreme conditions make them an excellent choice for maintaining reliable electrical systems in industrial and commercial transportation.

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Sealable No, Yes
Protection & Strain Relief Accessory Type Cover, Cover - Cable Exit

Configuration Features

Number of Positions 15, 21, 22, 26, 46, 62, 92

Body Features

Primary Product Color Black
Primary Product Material PA GF, PA, PBT GF
Cable Exit Angle 90°

Mechanical Attachment

Strain Relief With, Without

Dimensions

Compatible Cable Bundle Diameter Range (mm) 17, 18.6, 19, 19.3, 21, 26, 28.6, 29.5, 31.2
Compatible Cable Bundle Diameter Range (in) .669, .732, .748, .76, .827, 1.024, 1.126, 1.161, 1.228

Usage Conditions

Operating Temperature Range (°C) -40 – 120, -40 – 140, -40 – 100, -40 – 130
Operating Temperature Range (°F) -40 – 248, -40 – 284, -40 – 212, -40 – 266
Operating Temperature (Max) (°C) 70, 75, 80, 85, 90, 100, 105, 110, 120, 125, 130, 140
Operating Temperature (Max) (°F) 158, 167, 176, 185, 194, 212, 221, 230, 248, 257, 266, 284
Compatible With Connector Style Housing For Male Terminals, Housing For Female Terminals

Industry Standards

UL Flammability Rating UL 94HB, UL 94V-0

Packaging Features

Packaging Method Carton, Box, Bag
Packaging Quantity 150, 200, 250, 300, 500, 1000

Other

Serviceable Yes

Reference Number

TE Internal Number CAT-L489-B128
