2112132-1

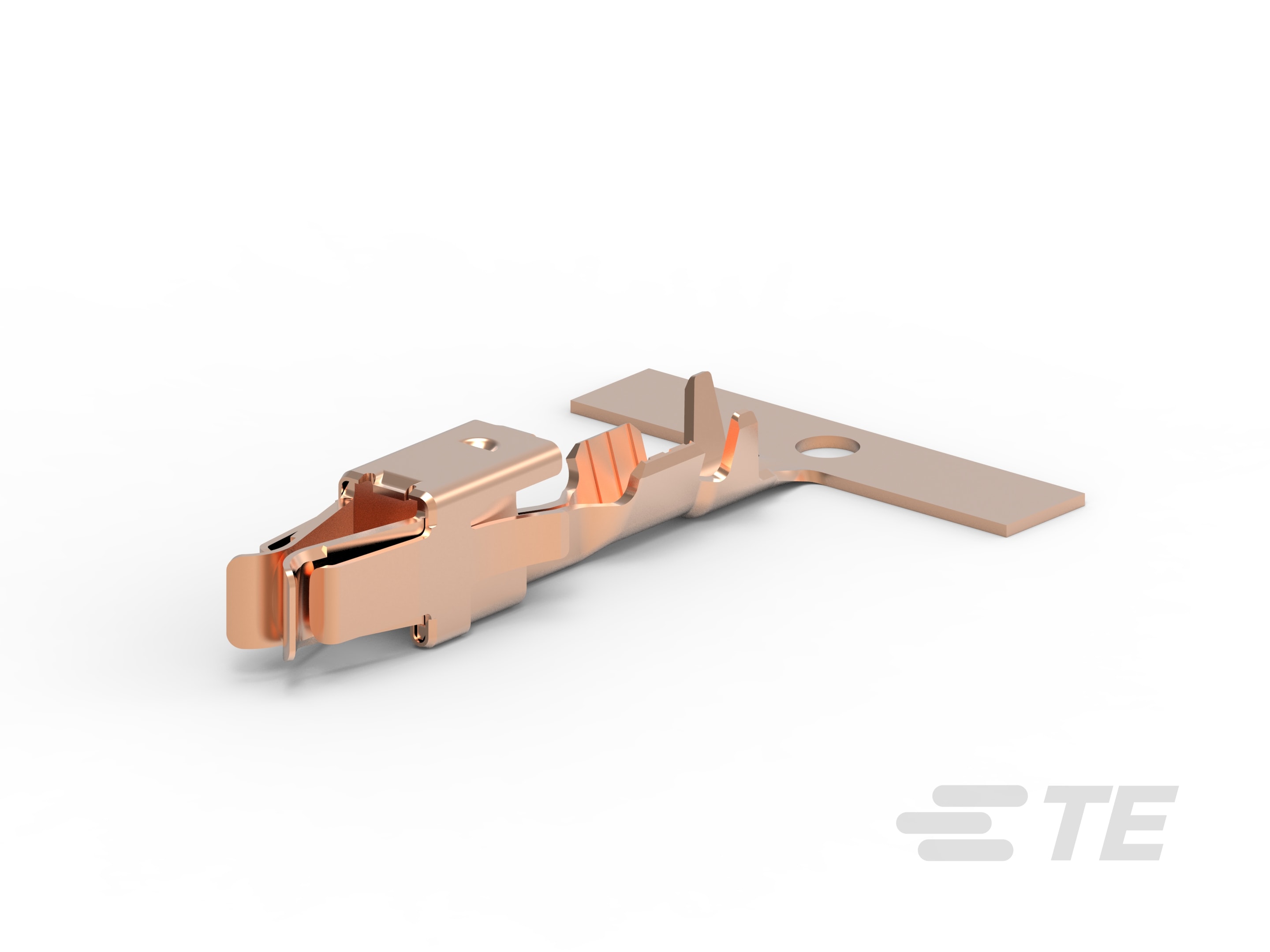

Receptacle Terminal, 24 – 20 AWG, .2 – .5 mm² Wire, 2.8 mm [.11 in] Tab Width, .8 mm [.031 in] Tab Thickness, Terminates To Wire, Junior Power Timer
2112132-1
Receptacle Terminal, 24 – 20 AWG, .2 – .5 mm² Wire, 2.8 mm [.11 in] Tab Width, .8 mm [.031 in] Tab Thickness, Terminates To Wire, Junior Power Timer
-
- Junior Power Timer
- TE Internal #: 2112132-1
- TE Internal Description: JPT REC 2.8 Contact SRC Blank
- All TIMER, RECEPTACLE AND TAB (279)
-
Terminal Type : Receptacle
-
Wire Size (AWG): 24 – 20
-
Wire Size (mm²): .2 – .5
-
Mating Tab Width : 2.8 mm [ .11 in ]
-
Primary Locking Feature : Locking Lance
