Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

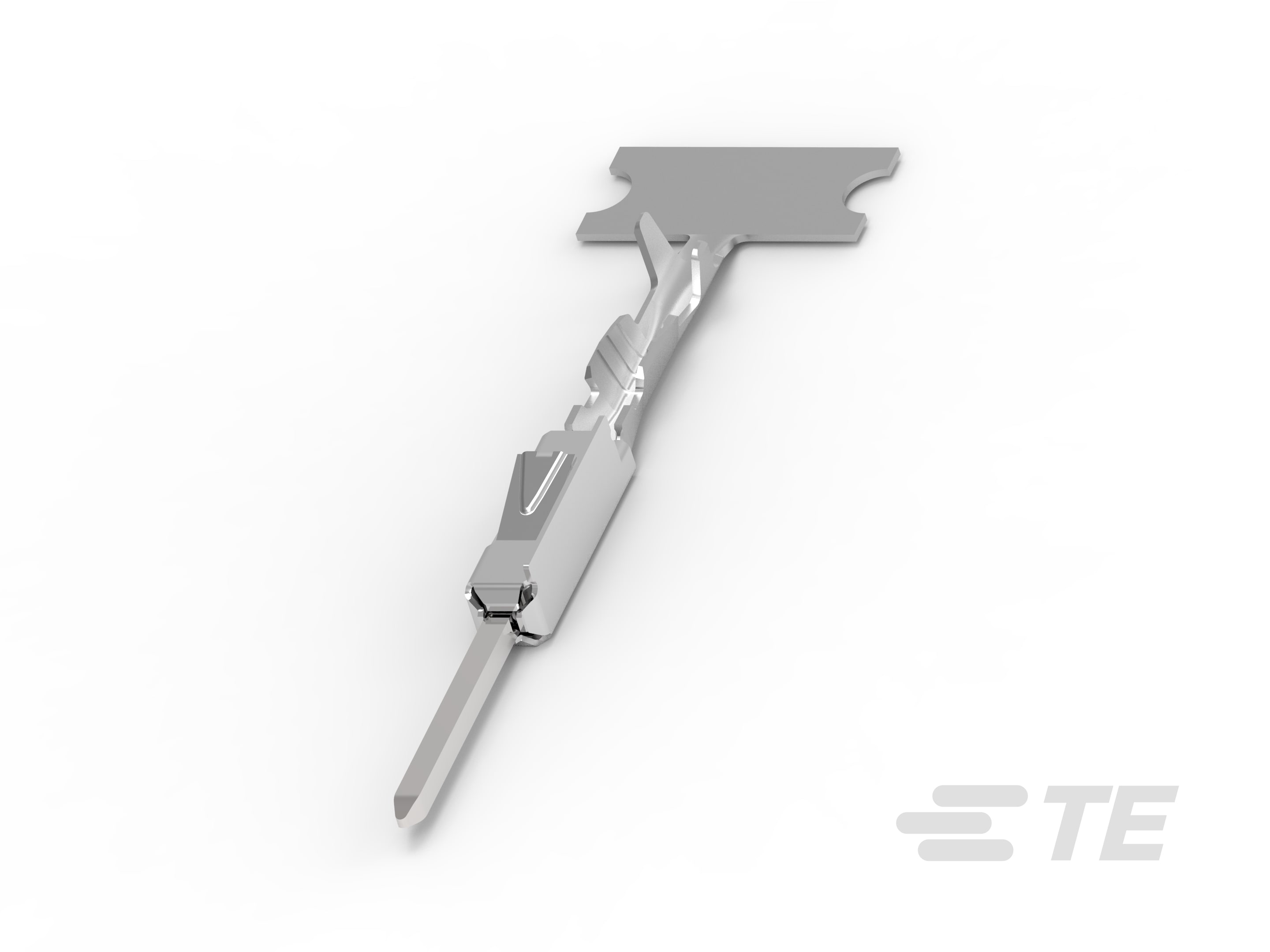

• Wire Contact Termination Area Plating Material : Silver

• Contact Fabrication : Stamped & Formed

• Contact Size : .63mm

• Crimp Type : F-Crimp

• Typical Current Rating (A): 7.5

• Terminal Type : Tab

• Mating Tab Width : .63 mm [ .025 in ]

• Mating Tab Thickness : .63 mm [ .025 in ]

• Interface Plating : Silver (Ag)

• Compatible Insulation Diameter Range : .85 – 1.2 mm [ .033 – .047 in ]

• Wire Size (AWG): 26 – 25

• Wire Size (mm²): .13 – .17

• Wire Size Search (mm²): .13, .15

• Wire Size Search (AWG): 25, 26

• Receptacle Style : 180°

• Sealable : No

• Primary Locking Feature : Locking Lance

• Termination Method to Wire & Cable : Crimp

• Product Terminates To : Wire

• Insulation Option : Uninsulated

• Operating Temperature (Max) (°C): 130, 80, 125, 105, 90, 100, 85, 140, 110, 120

• Operating Temperature (Max) (°F): 248, 221, 230, 176, 194, 284, 185, 212, 266, 257

• Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]

• Packaging Quantity : 13000

• Packaging Method : Reel

• Conforms to Automation Guideline : Yes, KOMAX Automatic Component Insertion per Version 5.0 (March 2018)

• Compatible With Wire Base Material : Copper
