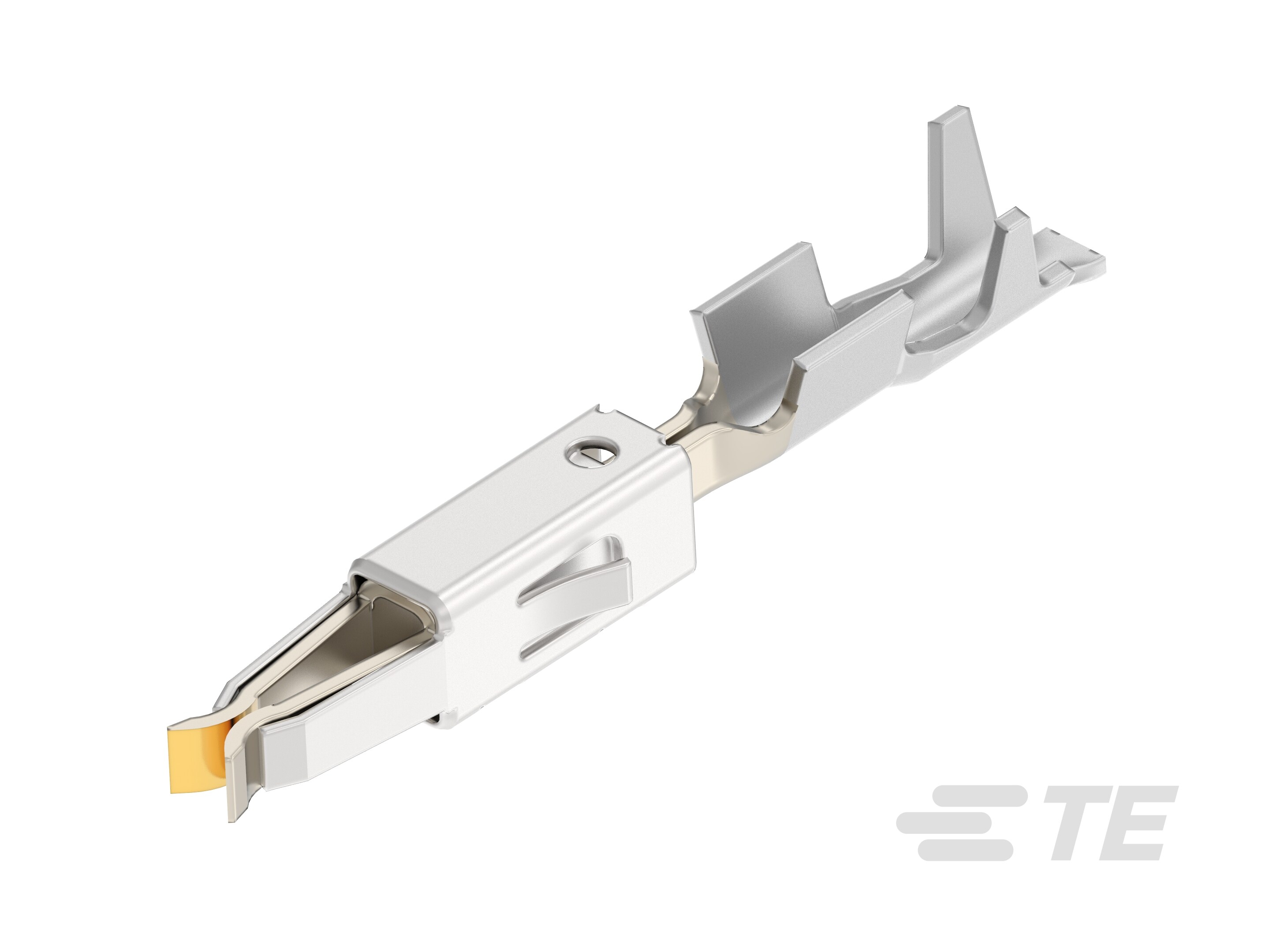

Receptacle, Mating Tab Width 1.6 mm [.063 in], Tab Thickness .6 mm [.024 in], 24 – 20 AWG Wire Size, Micro Timer II, Automotive Terminals
2141900-3
Receptacle, Mating Tab Width 1.6 mm [.063 in], Tab Thickness .6 mm [.024 in], 24 – 20 AWG Wire Size, Micro Timer II, Automotive Terminals
-
- AMP
- Micro Timer II
- TE Internal #: 2141900-3
- TE Internal Description: MT 2,TERMINAL
- All TIMER, RECEPTACLE AND TAB (278)
-
Packaging Method : Reel
-
Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]
-
Interface Plating : Gold (Au)
-
Operating Temperature (Max) : 140 °C [ 284 °F ]
