Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

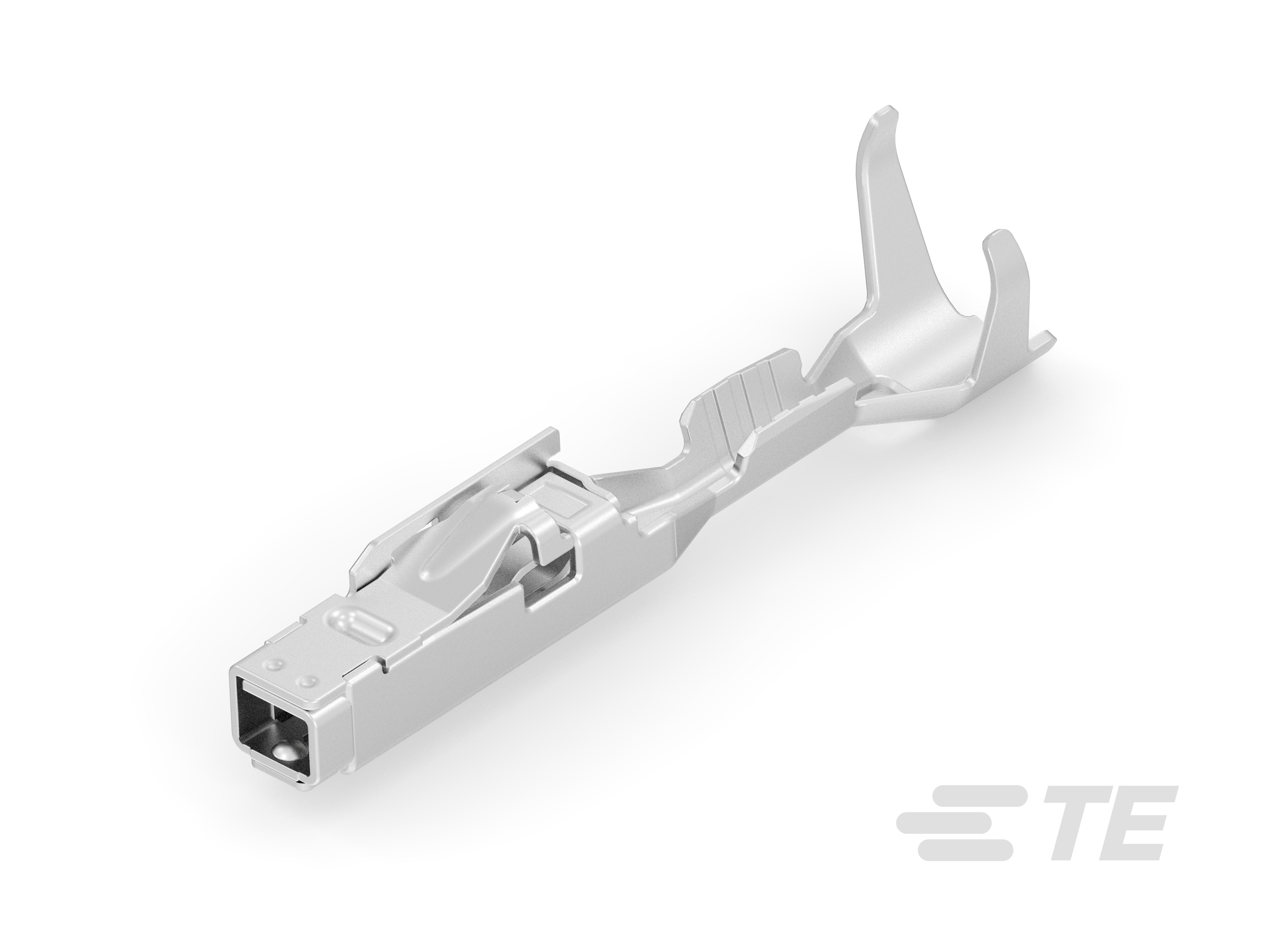

• Primary Locking Feature : Locking Lance

• Sealable : Yes

• Receptacle Style : 180°

• Terminal Seal Type : Single Wire Seal (SWS)

• Interface Plating : Silver (Ag)

• Mating Tab Thickness : .6 mm [ .024 in ]

• Terminal Type : Receptacle

• Mating Tab Width : 1.2 mm [ .047 in ]

• Contact Fabrication : Stamped & Formed

• Typical Current Rating (A): 7

• Wire Contact Termination Area Plating Material : Tin

• Contact Size : 1.2mm

• Crimp Type : F-Crimp

• Product Terminates To : Wire

• Termination Method to Wire & Cable : Crimp

• Wire Size (AWG): 26 – 24

• Wire Size Search (mm²): .13, .15, .2

• Compatible Insulation Diameter Range : .85 – 1.2 mm [ .033 – .047 in ]

• Wire Size (mm²): .13 – .22

• Wire Size Search (AWG): 25, 24, 26

• Operating Temperature Range : -40 – 150 °C [ -40 – 302 °F ]

• Operating Temperature (Max) (°C): 80, 85, 90, 100, 105, 110, 120, 125, 130, 140, 145, 150

• Operating Temperature (Max) (°F): 176, 185, 194, 212, 221, 230, 248, 257, 266, 284, 293, 302

• Insulation Option : Uninsulated

• Compatible With Wire Base Material : Copper

• Compatible With Agency/Standards Products : LV214

• Packaging Method : Reel

• Packaging Quantity : 7500
