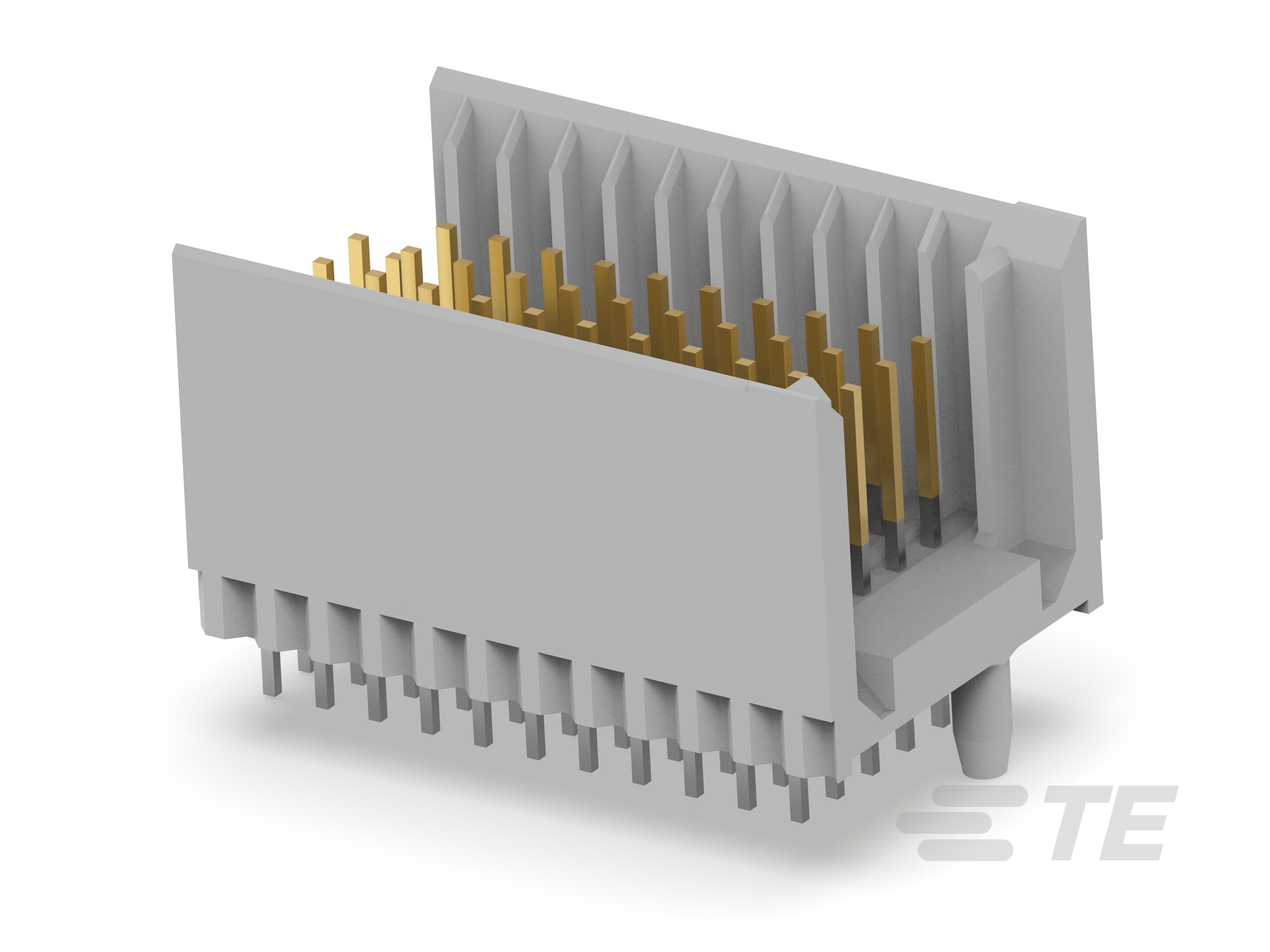

Hard Metric Backplane PCB Mount Header, 1 Gb/s, 11 Column, 5 Row, 55 Position, 2 mm Centerline, Vertical, Gray, Tube, Gold, Z-PACK 2mm HM
2170872-1
Hard Metric Backplane PCB Mount Header, 1 Gb/s, 11 Column, 5 Row, 55 Position, 2 mm Centerline, Vertical, Gray, Tube, Gold, Z-PACK 2mm HM
-
- Z-PACK
- Z-PACK 2mm HM
- TE Internal #: 2170872-1
- TE Internal Description: Z-PACK TYPE/C MALE HDR 55P
- All Hard Metric Male Connector: Traditional Backplane, Mezzanine, 2mm (124)
-
PCB Connector Assembly Type : PCB Mount Header
-
Data Rate (Gb/s): 1
-
Number of Columns : 11
-
Number of Rows : 5
-
Number of Positions : 55
Documents
Product Drawings
- MALE ASSEMBLY, Z-PACK 2mm HM, TYPE C ENG_CD_2170872_A_baseFilename.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2170872-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2170872-1_A.2d_dxf.zip English
- ENG_CVM_CVM_2170872-1_A.3d_igs.zip English
- ENG_CVM_CVM_2170872-1_A.3d_stp.zip English
Product Specifications
- Product Specification ENG_SS_108-19082_C.pdf English
