2301844-1

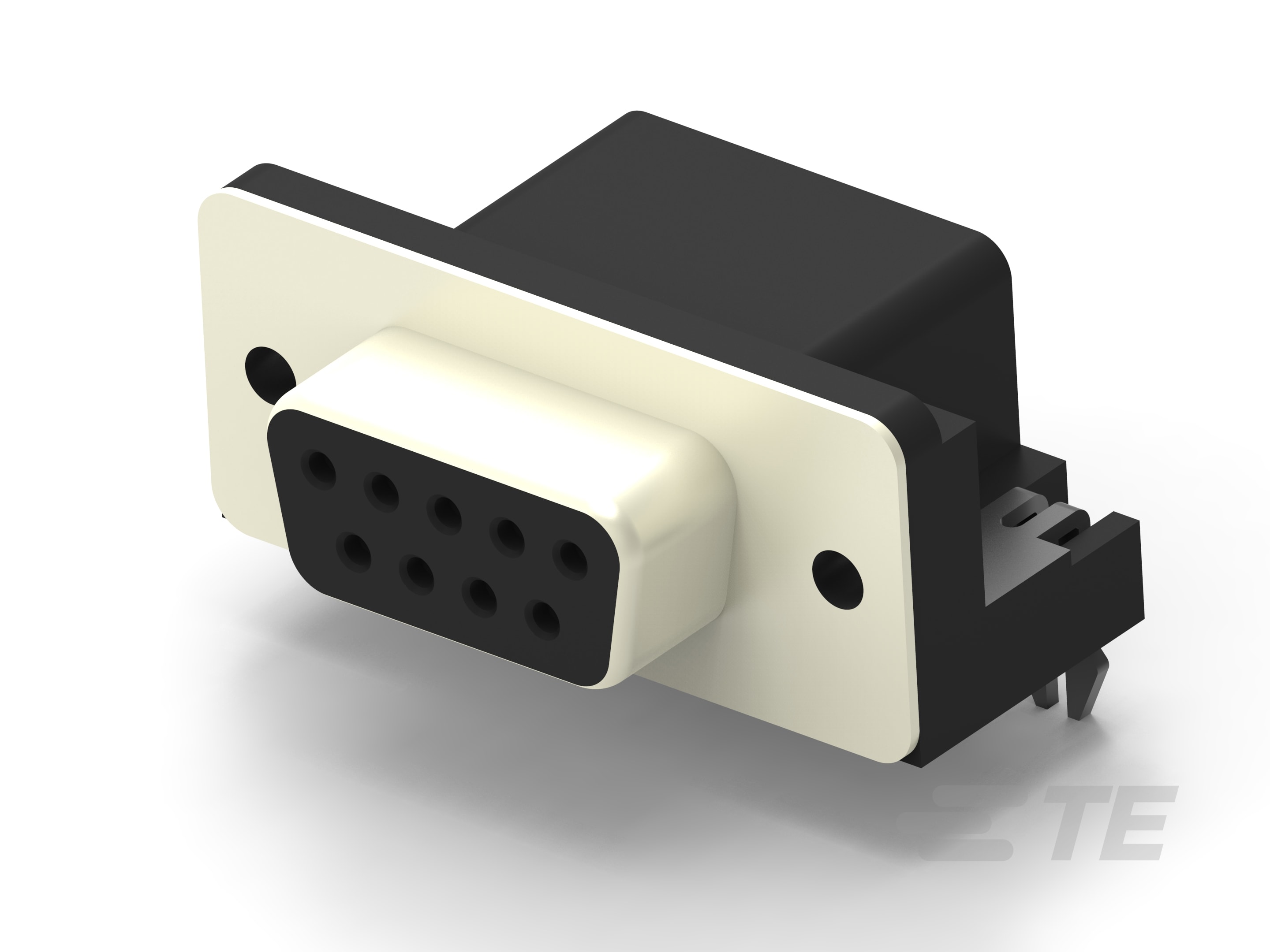

Receptacle, Wire-to-Board, 9 Position, 2.77 mm [.109 in] Centerline, 2 Row, Shell Size 1, Round, Standard Profile, Right Angle, PCB D-Sub Connectors
2301844-1
Receptacle, Wire-to-Board, 9 Position, 2.77 mm [.109 in] Centerline, 2 Row, Shell Size 1, Round, Standard Profile, Right Angle, PCB D-Sub Connectors
- TE Internal #: 2301844-1
- TE Internal Description: AMPL REC HD20, R/A, 9P, B/L,4-40 INS
- All D-Sub Receptacle Assembly: Right Angle, Shell Size 1, 2.74mm (77)
-
Connector & Housing Type : Receptacle
-
Connector System : Wire-to-Board
-
Number of Positions : 9
-
Centerline (Pitch) : 2.77 mm [ .109 in ]
-
Number of Rows : 2
Documents
Product Drawings
- 9 WAY D-SUB SOCKET WITH BOARD LOCK ENG_CD_2301844_H.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2301844-1_B.pdf 3D
- Customer View Model ENG_CVM_CVM_2301844-1_B.2d_dxf.zip English
- ENG_CVM_CVM_2301844-1_B.3d_igs.zip English
- ENG_CVM_CVM_2301844-1_B.3d_stp.zip English
Product Specifications
- Product Specification ENG_SS_108-130013_A.pdf English
- Qualification Test Report ENG_SS_501-32048_A.pdf English
