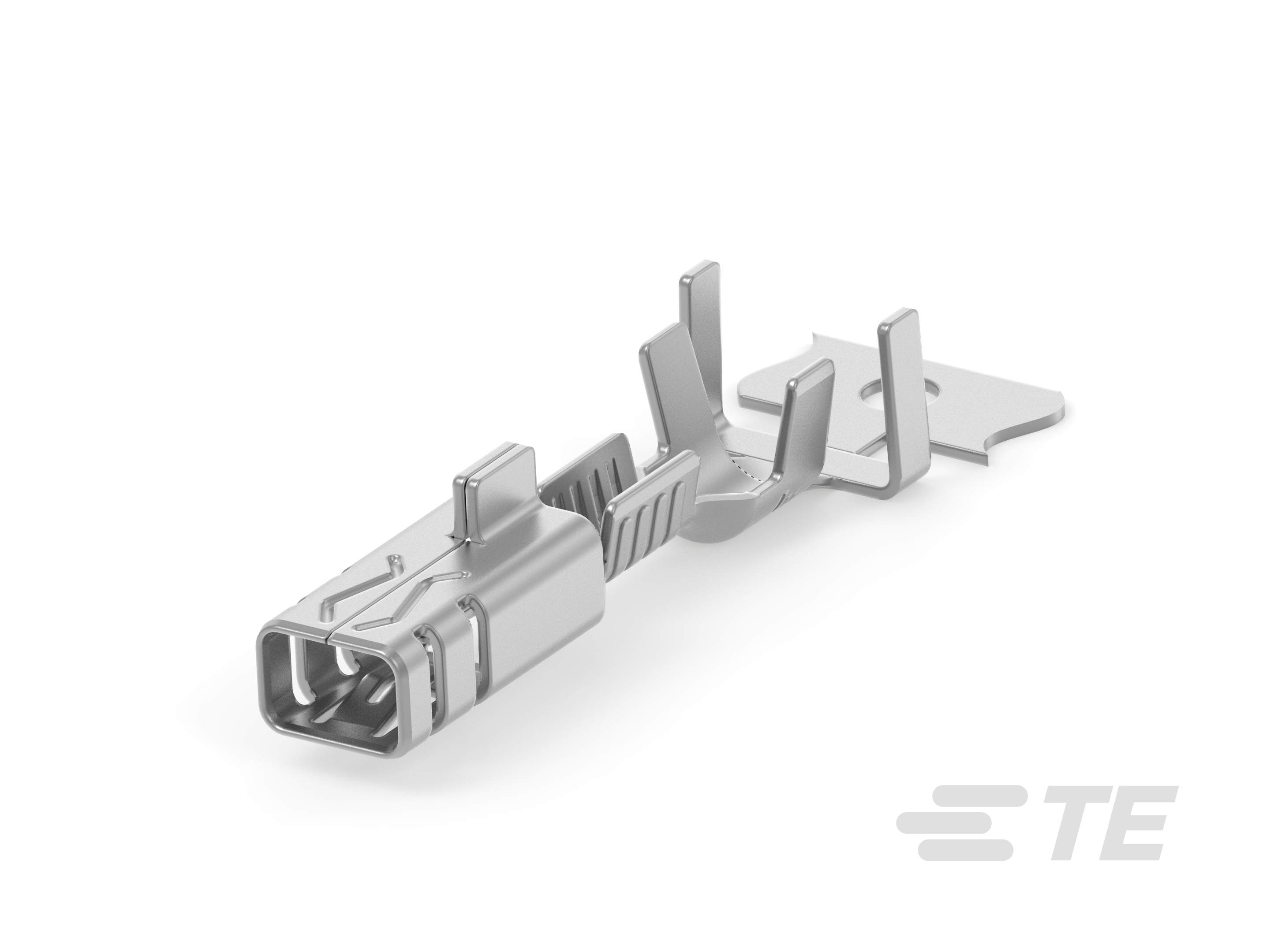

2324732-2
Receptacle Contact, Tin (Sn), 600 VAC, 600 VDC, 24 – 20 AWG, .2 – .5 mm² Wire, Crimp, Copper Alloy, Power, Power Triple Lock
2324732-2
Receptacle Contact, Tin (Sn), 600 VAC, 600 VDC, 24 – 20 AWG, .2 – .5 mm² Wire, Crimp, Copper Alloy, Power, Power Triple Lock
-
- Power Triple Lock
- TE Internal #: 2324732-2
- TE Internal Description: PTL RECEPTACLE CONTACT, 20 - 24 AWG
- All Receptacle Contact — POWER TRIPLE LOCK (11)
-
Contact Type : Receptacle
-
Contact Mating Area Plating Material : Tin (Sn)
-
Wire Contact Termination Area Plating Material : Pre-Tin
-
Operating Voltage (VAC): 600
-
Operating Voltage (VDC): 600
Documents
Product Drawings
- RECEPTACLE CONTACT POWER TRIPLE LOCK ENG_CD_2324732_A2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2324732-2_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2324732-2_A.2d_dxf.zip English
- ENG_CVM_CVM_2324732-2_A.3d_igs.zip English
- ENG_CVM_CVM_2324732-2_A.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-106118_N.pdf English
- Product Specification ENG_SS_108-106118_H.pdf English
