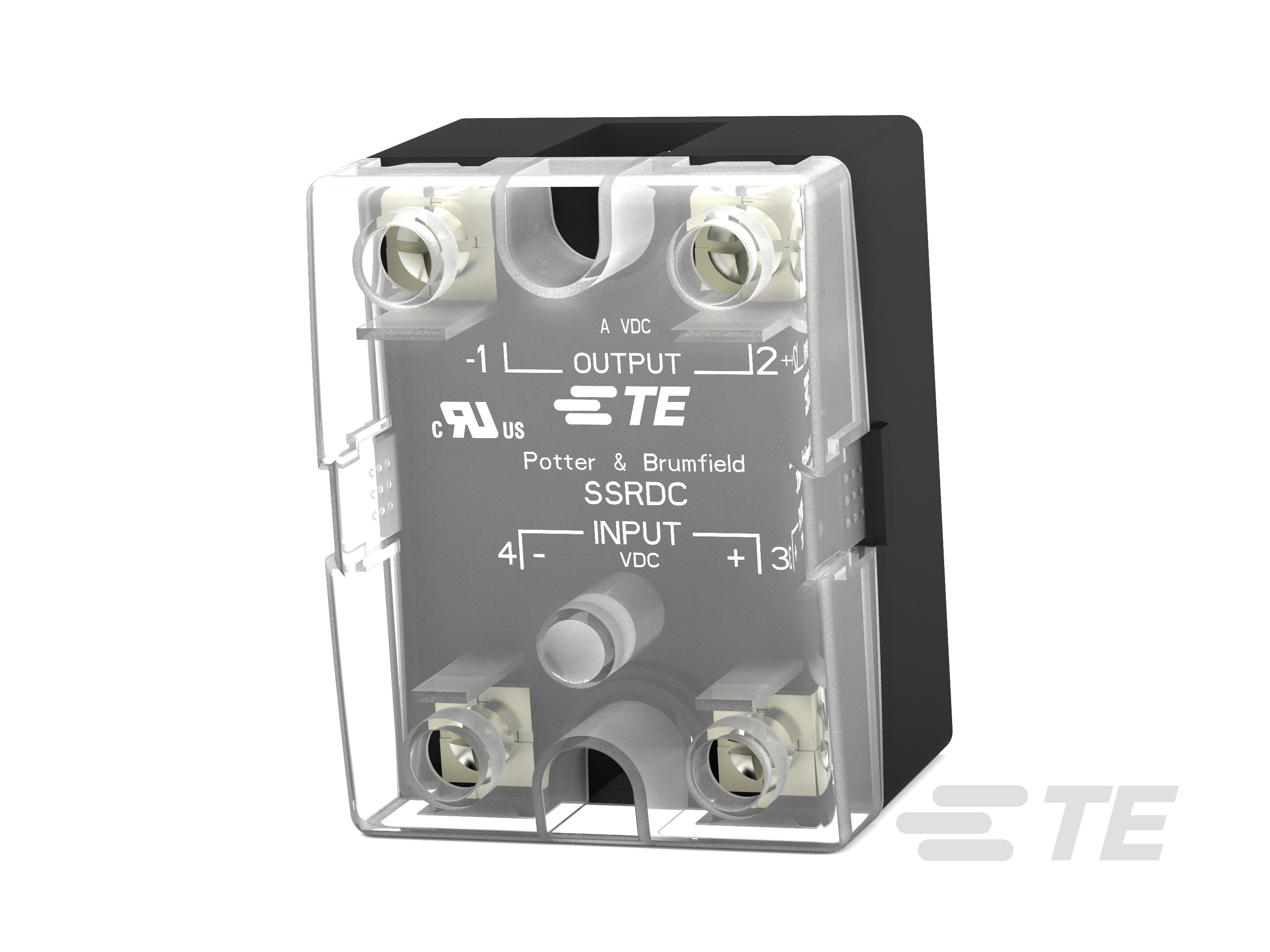

SSRDC-200D12
DC Input Solid State Relay, 1 Form A SPST-NO, 3.5 – 32 VDC Input, 200 VDC Output, DC Output, Chassis, Black, Potter & Brumfield SSRDC
SSRDC-200D12
DC Input Solid State Relay, 1 Form A SPST-NO, 3.5 – 32 VDC Input, 200 VDC Output, DC Output, Chassis, Black, Potter & Brumfield SSRDC
-
- Potter & Brumfield SSRDC
- TE Internal #: 2330274-1
- TE Internal Description: SSRDC-200D12 = Hokey Puck,12A,200V DC
- All Solid State Relays: Chassis Mount (3)
-
Input Current Type : DC
-
Contact Arrangement : 1 Form A SPST-NO
-
Input Voltage (VDC): 3.5 – 32
-
Output Voltage Rating (VDC): 200
-
Output Current Type : DC
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2330274-1_A1.pdf 3D
- Customer View Model ENG_CVM_CVM_2330274-1_A1.3d_igs.zip English
- ENG_CVM_CVM_2330274-1_A1.3d_stp.zip English
- ENG_CVM_CVM_2330274-1_A1.2d_dxf.zip English
Datasheets & Catalog Pages
- POTTER & BRUMFIELD SOLID STATE RELAYS ENG_DS_1-1773951-4_SSRDC_Series_NPI_Product_Fly_518.pdf English
- DC Load Solid State Relay Hockey Puck ENG_DS_SSRDC_1.pdf English
Agency Approvals
- UL ENG_AAD_UL_CERTB_E29244_20160921_C1_7.pdf English
