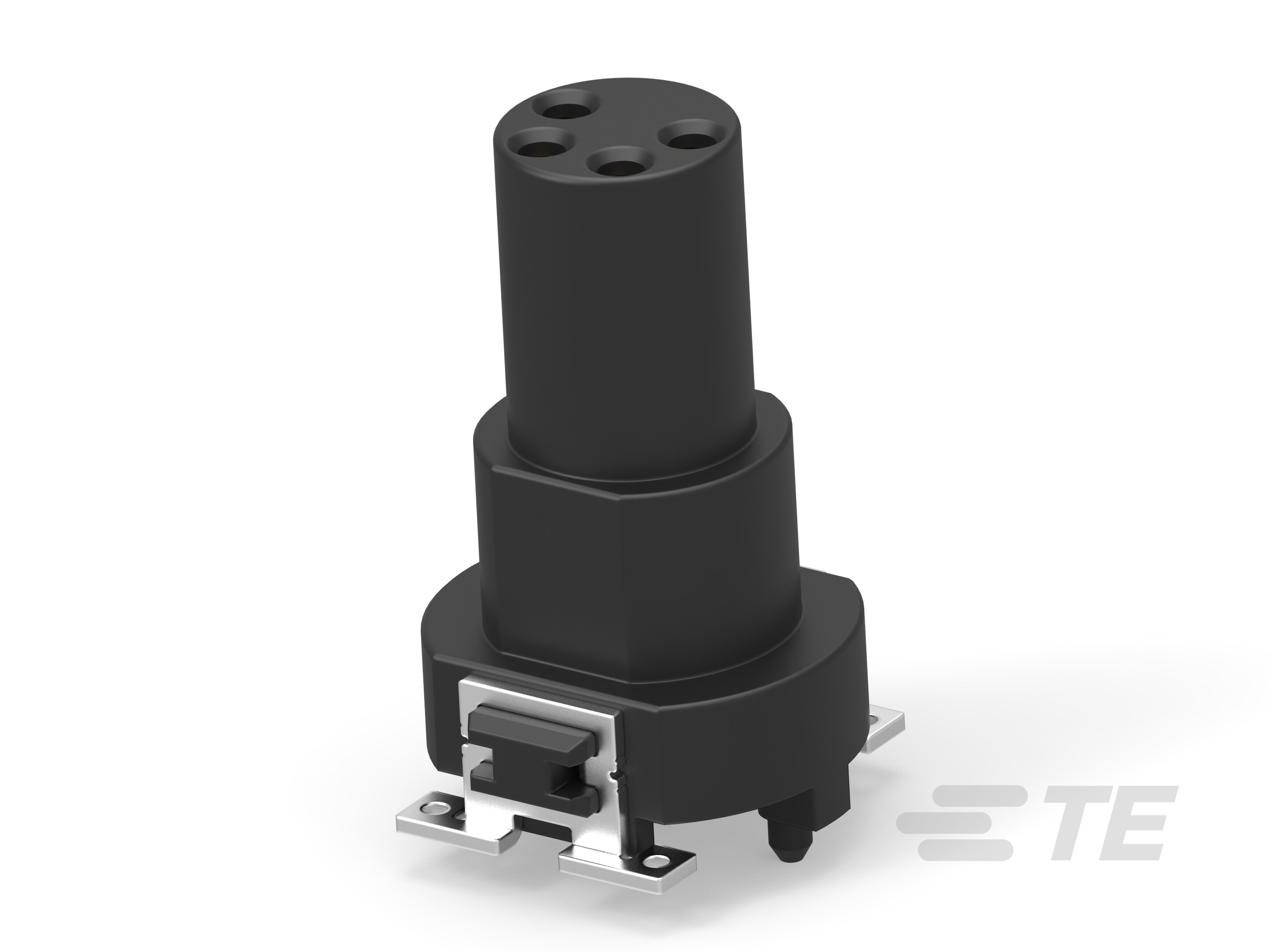

4 Position Circular Connector, Board-to-Board, Printed Circuit Board, Power & Signal, Board Mount, A Code, Contacts Preloaded, Plug, M8 Connector
234234-E
4 Position Circular Connector, Board-to-Board, Printed Circuit Board, Power & Signal, Board Mount, A Code, Contacts Preloaded, Plug, M8 Connector
-
- ERNI
- M8 Connector
- TE Internal #: 234234-E
- TE Internal Description: M8 FEMALE, A CODE, 4P, 16.25MM SMT
-
Number of Positions : 4
-
Connector System : Board-to-Board
-
Connector & Contact Terminates To : Printed Circuit Board
-
Contact Current Rating (Max) (A): 4
-
Circuit Application : Power & Signal
Documents
Product Drawings
- M8 FEMALE, A CODE, 4P, 16.25MM SMT ENG_CD_224151-E_L2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_234234-E_L.pdf 3D
- Customer View Model ENG_CVM_CVM_234234-E_L.3d_igs.zip English
- ENG_CVM_CVM_234234-E_L.3d_stp.zip English
- ENG_CVM_CVM_234234-E_L.2d_dxf.zip English
Product Specifications
- Application Specification ENG_SS_114-94781_A.pdf English
- Product Specification ENG_SS_108-94887_B.pdf English
Agency Approvals
- UL ENG_AAD_UL_CERT_E84703_20140116_C1_2.pdf English
