93-22050

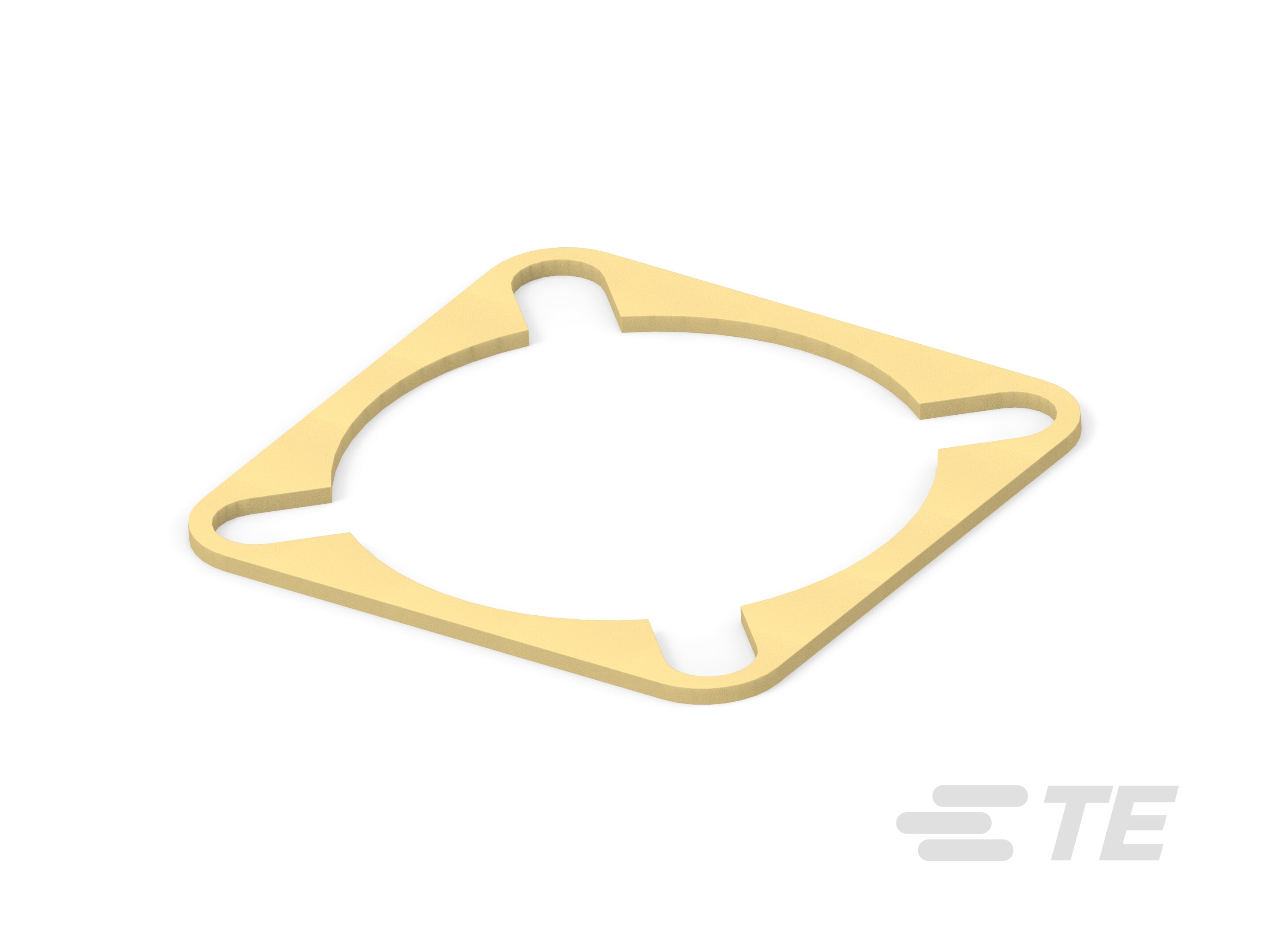

EMI Connector Gasket, Conductive Sheet, Silicone Binding, Silver Plated Aluminum (Ag/Al) Filler, .8 mm [.031 in] Thick, Kemtron 93 Series
93-22050
EMI Connector Gasket, Conductive Sheet, Silicone Binding, Silver Plated Aluminum (Ag/Al) Filler, .8 mm [.031 in] Thick, Kemtron 93 Series
-
- Kemtron
- Kemtron 93 Series
- TE Internal #: 2427990-1
- TE Internal Description: Conn G SSA 38999 S3 Shell 13
- Mil-Spec: MIL-DTL-38999
- All Std MIL-DTL-38999 Series III Conn Gasket (36)
-
Operating Temperature Range : -55 – 160 °C [ -67 – 320 °F ]
-
Product Width : 29.29 mm [ 1.153 in ]
-
Resistance to Petroleum : No
-
Gasket Type : EMI Connector Gasket
-
Product Thickness : .8 mm [ .031 in ]
Documents
Product Drawings
- 93 CONNECTOR GASKETS MIL-DTL-38999 ENG_CD_93-CONNECTOR-GASKETS_A1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2427990-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2427990-1_A.3d_igs.zip English
- ENG_CVM_CVM_2427990-1_A.3d_stp.zip English
- ENG_CVM_CVM_2427990-1_A.2d_dxf.zip English
Datasheets & Catalog Pages
- Performance Materials brochure ENG_CS_performance-materials-brochure_A.pdf English
- Connector Gasket ENG_DS_connector-gasket_D.pdf English
Product Specifications
- Application Specification ENG_SS_114-120007_A3.pdf English
- Product Specification ENG_SS_108-120068_B2.pdf English
