AV1210E112R04

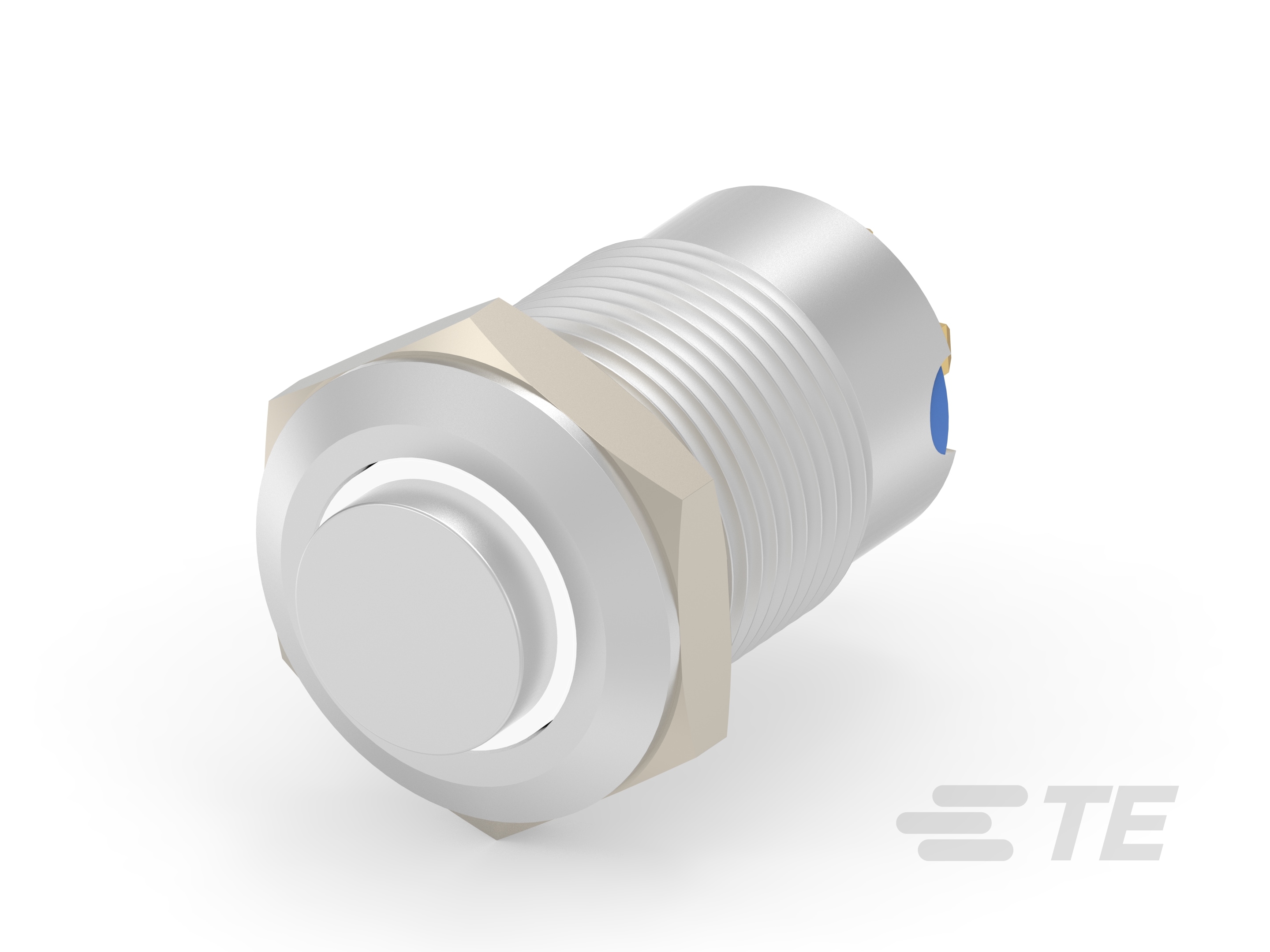

Anti-Vandal Switch, Single Pole - Single Throw Configuration (Pole-Throw), Single Actuator, Extended Actuator, Illuminated, ALCOSWITCH Anti-Vandal 12
AV1210E112R04
Anti-Vandal Switch, Single Pole - Single Throw Configuration (Pole-Throw), Single Actuator, Extended Actuator, Illuminated, ALCOSWITCH Anti-Vandal 12
-
- Alcoswitch
- ALCOSWITCH Anti-Vandal 12
- TE Internal #: 2474606-1
- TE Internal Description: AV12 SPM 0.1A/24VDC White LED 12V
- All ALCOSWITCH Anti Vandal 12 mm Switch Series (22)
-
Push Button Switch Product Type : Anti-Vandal Switch
-
Configuration (Pole-Throw) : Single Pole - Single Throw
-
Number of Actuators : Single
-
Actuator Profile : Extended
-
Bushing Style : Threaded
Documents
Product Drawings
- ANTI-VANDAL SWITCH 12MM ENG_CD_2474606_1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2474606-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2474606-1_A.3d_stp.zip English
- ENG_CVM_CVM_2474606-1_A.2d_dxf.zip English
- ENG_CVM_CVM_2474606-1_A.3d_igs.zip English
Datasheets & Catalog Pages
- ALCOSWITCH Anti-Vandal Switch ENG_DS_1-1773878-3_Alcoswitch_AntiVandal_6.pdf English
