3-100143-0

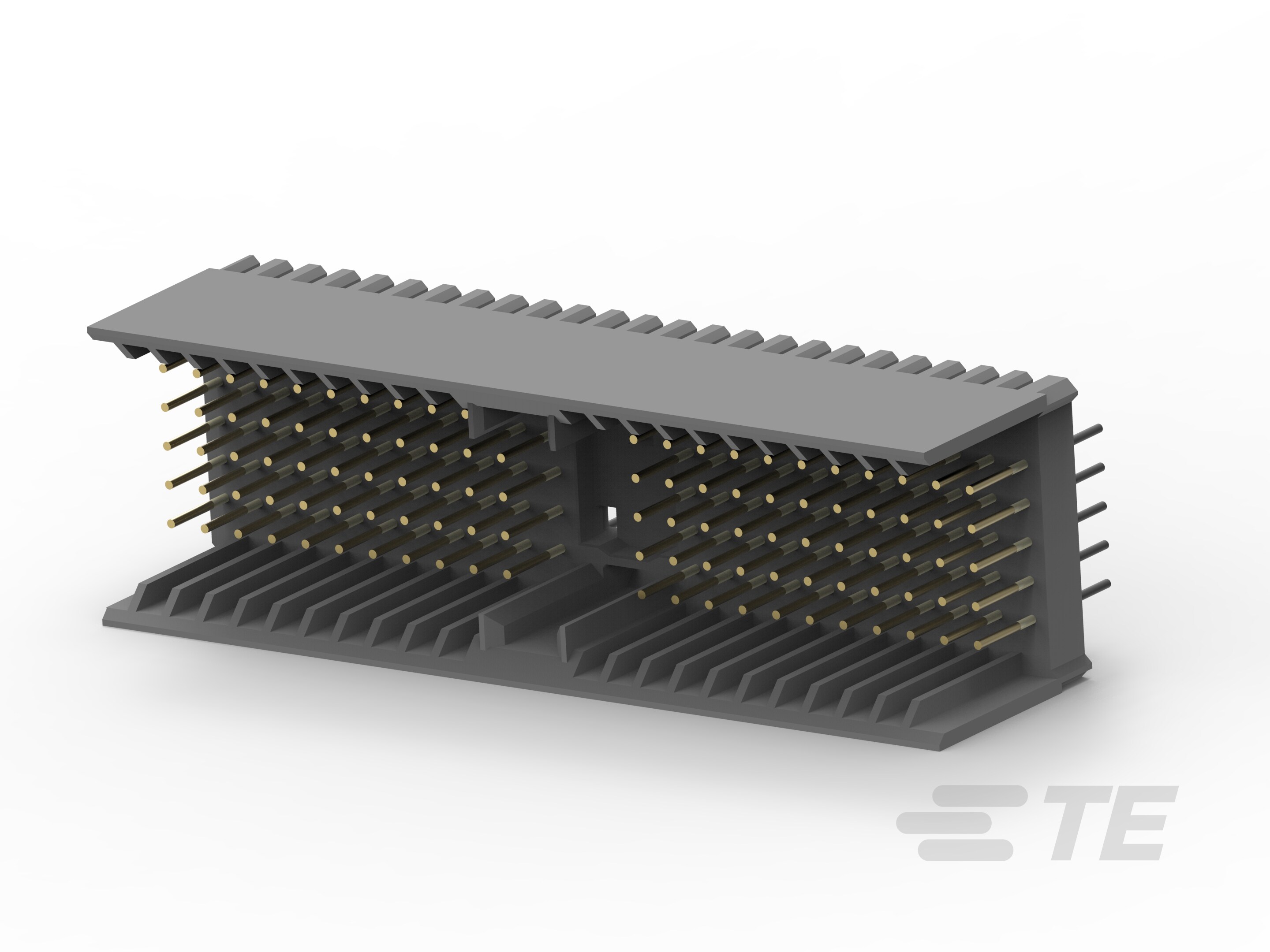

Hard Metric Backplane PCB Mount Header, 1 Gb/s, 22 Column, 5 Row, Traditional Backplane, 110 Position, 2 mm [.07 in] Centerline, Z-PACK 2mm HM
3-100143-0
Hard Metric Backplane PCB Mount Header, 1 Gb/s, 22 Column, 5 Row, Traditional Backplane, 110 Position, 2 mm [.07 in] Centerline, Z-PACK 2mm HM
-
- Z-PACK
- Z-PACK 2mm HM
- TE Internal #: 3-100143-0
- TE Internal Description: PACK/A MALE HDR 110P, 2MM HM
- All Hard Metric Male Connector: Traditional Backplane, Mezzanine, 2mm (124)
-
PCB Connector Assembly Type : PCB Mount Header
-
Data Rate (Gb/s): 1
-
Number of Columns : 22
-
Number of Rows : 5
-
Backplane Architecture : Traditional Backplane
Documents
Product Drawings
- MALE ASSEMBLY, Z-PACK 2mm HM, TYPE A ENG_CD_100143_P.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_3-100143-0_K.pdf 3D
- Customer View Model ENG_CVM_CVM_3-100143-0_K.2d_dxf.zip English
- ENG_CVM_CVM_3-100143-0_K.3d_igs.zip English
- ENG_CVM_CVM_3-100143-0_K.3d_stp.zip English
Product Specifications
- Product Specification ENG_SS_108-19082_C.pdf English
