3-1447221-3

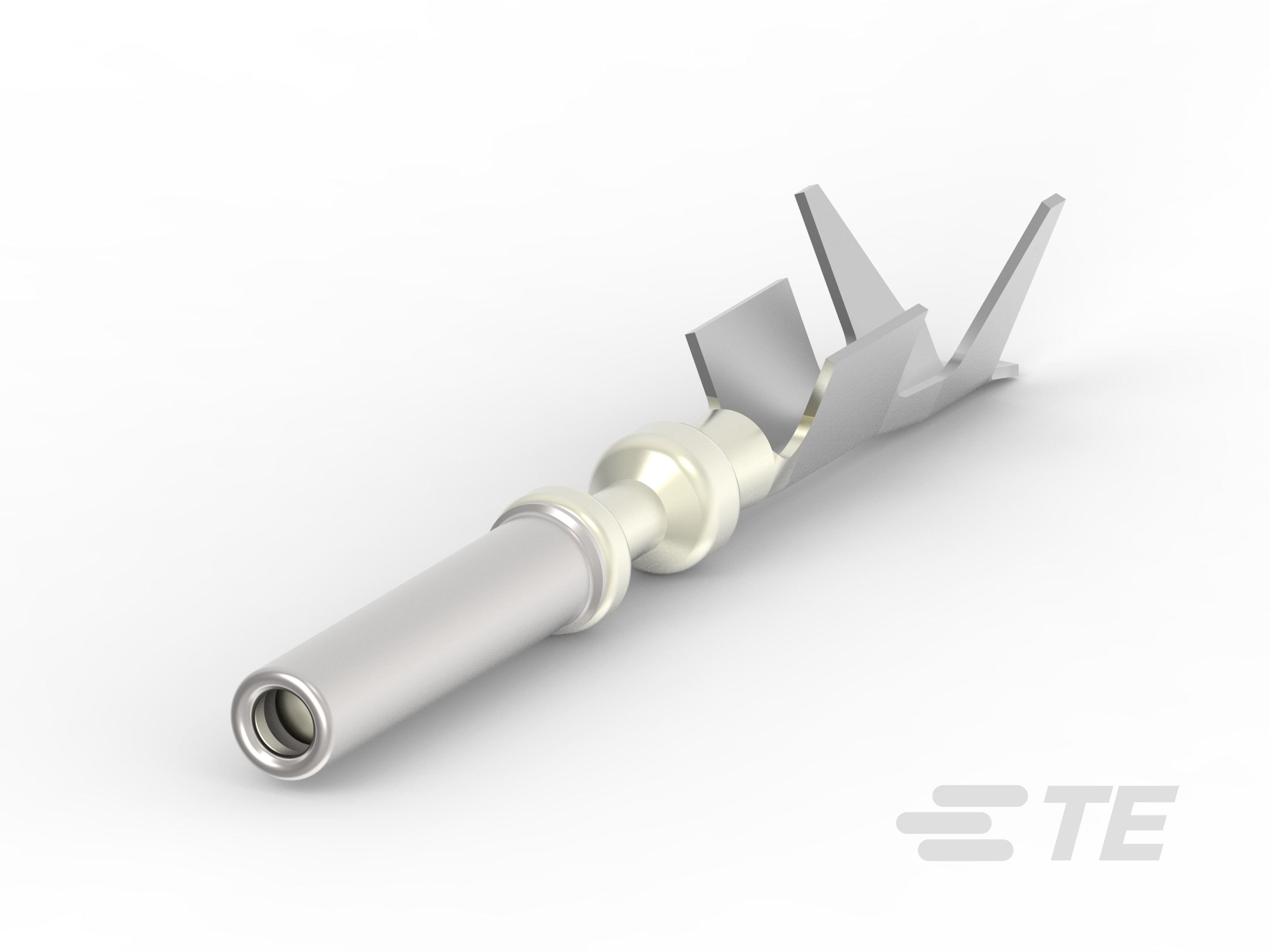

Receptacle, Pin Diameter 1 mm [.039 in], 18 – 16 AWG Wire Size, .75 – 1.25 mm² Wire Size, Sealable, Family Seal, SUPERSEAL 1.0mm, Automotive Terminals
3-1447221-3
Receptacle, Pin Diameter 1 mm [.039 in], 18 – 16 AWG Wire Size, .75 – 1.25 mm² Wire Size, Sealable, Family Seal, SUPERSEAL 1.0mm, Automotive Terminals
-
- AMP
- SUPERSEAL 1.0mm
- TE Internal #: 3-1447221-3
- TE Internal Description: S/S REC CONTACT ASSY, AU, 0.75-1.25
- Alias #: 3900187-01
- All SUPERSEAL Connector Contacts: 1.0 mm (6)
-
Packaging Method : Reel
-
Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]
-
Interface Plating : Gold (Au)
-
Operating Temperature (Max) : 125 °C [ 257 °F ]
-
Wire Size (AWG): 18 – 16
