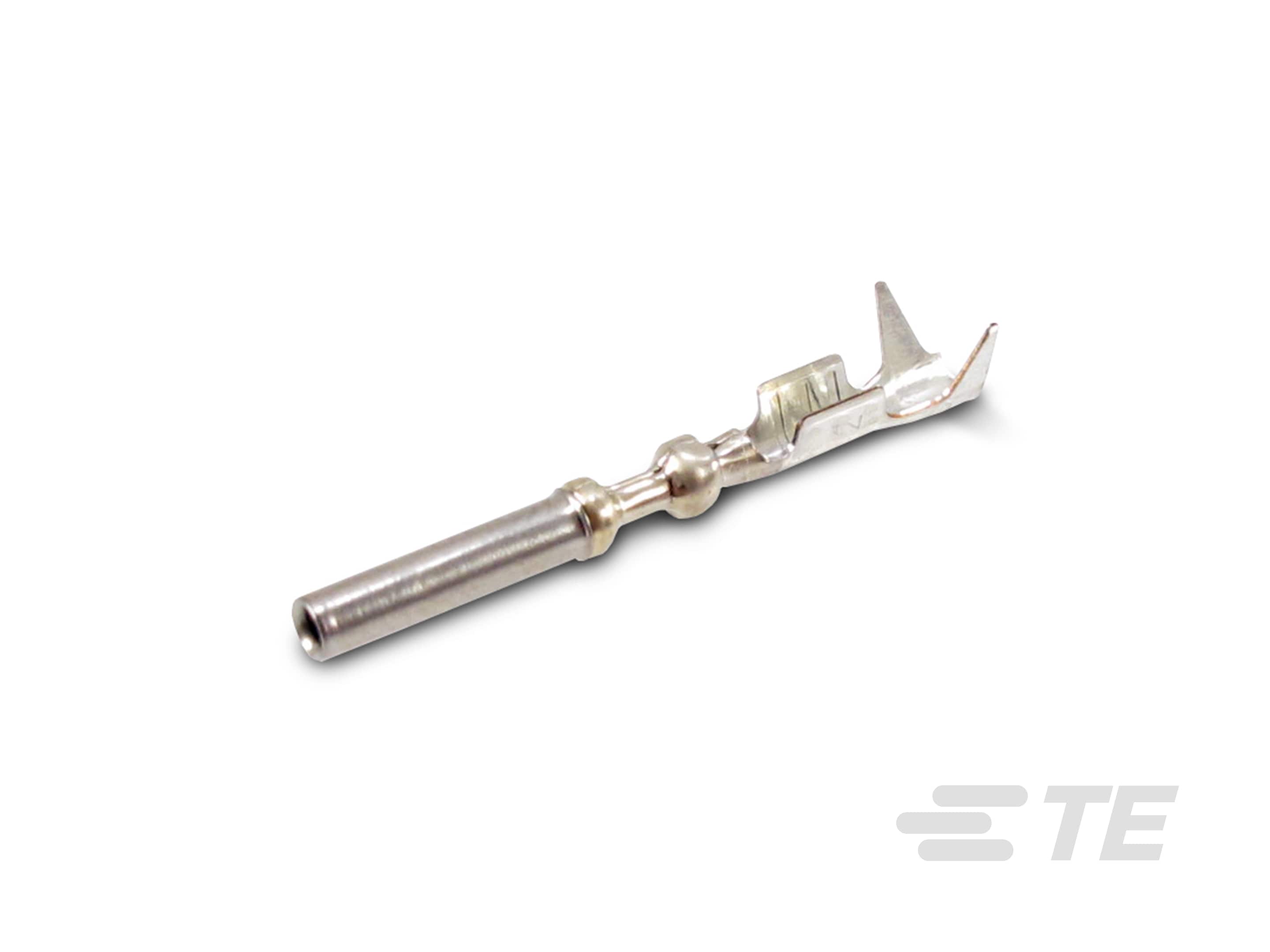

SUPERSEAL Connector Contacts: 1.0 mm

SUPERSEAL 1.0mm

SUPERSEAL 1.0 mm plug housings use the AMP SUPERSEAL double spring, stamped & formed contact system, rated up to 15 amps. They are available in gold plating and accept wire sizes from 1.25 to 0.50 mm².

More Less

Product Features

Packaging Method : Reel, Package
Operating Temperature Range (°C): -40 – 125, -40 – 120
Operating Temperature Range (°F): -40 – 257, -40 – 248
Termination Method to Wire & Cable : Crimp
Customer Preferred Contact : No
Operating Temperature (Max) (°C): 125, 120
Operating Temperature (Max) (°F): 257, 248

Available from

Product	TE Part #	Documents	Terminal Type	Mating Tab Width	Mating Pin Diameter	Terminal Transmits	Wire Size	Wire Size	Sealable	Terminal Seal Type	Wire Size Search	Wire Size Search	Primary Locking Feature	Interface Plating	Operating Temperature (Max)	Tab Length	Operating Temperature Range
1.0 SEALED RECEPTACLE CONTACT Buy on te.com	1554723-1	Product Drawing 3D PDF	Receptacle	1 mm	-	0 – 24 A (Low Power)	20 – 18 AWG	.5 – .85 mm²	Yes	-	-	-	On the Terminal	Tin (Sn)	120 °C	16.25 mm	-40 – 120 °C
MERTEC FTERM AU 13002630101	1437284-9	Product Drawing 3D PDF	Socket	-	1.94 mm	0 – 24 A (Low Power)	20 – 14 AWG	.5 – 2 mm²	No	-	1.5 mm², 2 mm², .5 mm², .6 mm², .8 mm², 1 mm², 1.25 mm²	19 AWG, 17 AWG, 16 AWG, 20 AWG, 14 AWG, 15 AWG, 18 AWG	-	Gold (Au)	-	-	-
S/S REC CONTACT ASSY, AU, 0.75-1.25	3-1447221-3	Product Drawing 3D PDF	Receptacle	-	1 mm	0 – 24 A (Low Power)	18 – 16 AWG	.75 – 1.25 mm²	Yes	Family Seal	1.25 mm², .75 mm², 1 mm²	16 AWG, 18 AWG, 17 AWG	Clean Body	Gold (Au)	125 °C	22.12 mm	-40 – 125 °C
S/S REC CONTACT ASSY, AU, 0.5 Buy on te.com	3-1447221-4	Product Drawing 3D PDF	Receptacle	-	1 mm	0 – 24 A (Low Power)	20 AWG	.5 mm²	Yes	Family Seal	.5 mm²	20 AWG	Clean Body	Gold (Au)	125 °C	22.12 mm	-40 – 125 °C
S/S REC CONTACT ASSY, AU, 0.3	3-1447221-5	Product Drawing 3D PDF	Receptacle	-	1.12 mm	0 – 24 A (Low Power)	18 – 16 AWG	.75 – 1.25 mm²	Yes	Family Seal	.3 mm²	22 AWG	Clean Body	Gold (Au)	125 °C	22.12 mm	-40 – 125 °C
MERTEC FTERM AU 13002630102	1-1437284-0	Product Drawing 3D PDF	Socket	-	-	-	16 – 14 AWG	1.25 – 2 mm²	No	-	2 mm², 1.5 mm², 1.25 mm²	16 AWG, 15 AWG, 14 AWG	-	-	-	-	-

Overview

Superseal 1.0 contacts are double spring, stamped & formed contacts.

SUPERSEAL 1.0 Range

VIEW ALL SUPERSEAL 1.0 PRODUCTS
Our range of SUPERSEAL 1.0 connectors is designed to meet the increasing need for dependable printed circuit board applications in harsh environments.

FAQ

Frequently Asked Questions

Q: What is a SUPERSEAL 1.0 connector?

A: Our SUPERSEAL 1.0 environmentally sealed connectors are available in cable plugs and PCB mount headers. The SUPERSEAL 1.0 connectors are used in harsh environment applications where even a small degradation in connection may be critical.

Q: What are the appropriate applications for SUPERSEAL 1.0 connectors?

A: Truck, bus, off-highway, construction, agriculture, mining, emergency vehicles, forestry, recreational, marine, motorcycle.

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Primary Locking Feature Clean Body, On the Terminal
Sealable Yes, No
Receptacle Style 180°

Body Features

Terminal Seal Type Family Seal

Contact Features

Wire Contact Termination Area Plating Material Tin
Typical Current Rating (A) 6, 15
Terminal Type Receptacle, Socket
Interface Plating Gold (Au), Tin (Sn)
Mating Pin Diameter (mm) 1, 1.12, 1.94
Mating Pin Diameter (in) .039, .044, .076
Contact Fabrication Stamped & Formed
Mating Tab Width 1 mm [ .039 in ]
Contact Size 1mm
Crimp Type F-Crimp

Termination Features

Termination Method to Wire & Cable Crimp
Product Terminates To Wire

Dimensions

Wire Size (mm²) .5, .5 – .85, .5 – 2, .75 – 1.25, 1.25 – 2
Compatible Insulation Diameter Range (mm) 1.6 – 1.9, 1.6 – 2.2, 1.77 – 2.46, 2.18 – 2.92
Compatible Insulation Diameter Range (in) .063 – .075, .063 – .087, .069 – .096, .085 – .114
Wire Size (AWG) 16 – 14, 18 – 16, 20 – 18, 20 – 14, 20
Wire Size Search (mm²) .3, .5, .6, .75, .8, 1, 1.25, 1.5, 2
Tab Length (mm) 16.25, 22.12
Tab Length (in) .64, .871
Wire Size Search (AWG) 19, 15, 22, 16, 17, 14, 20, 18

Usage Conditions

Operating Temperature Range (°C) -40 – 125, -40 – 120
Operating Temperature Range (°F) -40 – 257, -40 – 248
Operating Temperature (Max) (°C) 120, 125
Operating Temperature (Max) (°F) 248, 257
Insulation Option Uninsulated

Operation/Application

Compatible With Wire Base Material Copper

Packaging Features

Packaging Method Reel, Package
Packaging Quantity 7000, 8000

Other

Customer Preferred Contact No
Terminal Transmits 0 – 24 A (Low Power)

Reference Number

TE Internal Number CAT-SU763-T273

Related Materials

Catalog (English)

SUPERSEAL 1.0 Terminals and Connectors This catalog features our SUPERSEAL 1.0 range of connectors for industrial and commercial vehicles.

Flipbook Catalog

Industrial & Commercial Transportation - Terminals and Connectors (English) Our Industrial & Commercial Transportation Terminals and Connectors flipbook catalog features AMPSEAL, AMPSEAL 16, Circular DIN, DEUTSCH, LEAVYSEAL, Heavy Duty Sealed Connector Series and SUPERSEAL 1.0 connectors, contacts, tools, and accessories.

Product Specifications

Superseal 1.0 Connectors Product Specifications (English & Japanese) This specification covers performance tests and quality requirements for Superseal 1.0 connectors.

Application Specifications

Superseal 1.0 Connectors Application Specifications (English & Japanese) This specification covers the requirements for the application of the Superseal 1.0 connectors.

Connector Selector

Connector Selector (English) The connector selector is a reference guide to our Industrial & Commercial Transportation electrical connectors.
