3-1447221-5

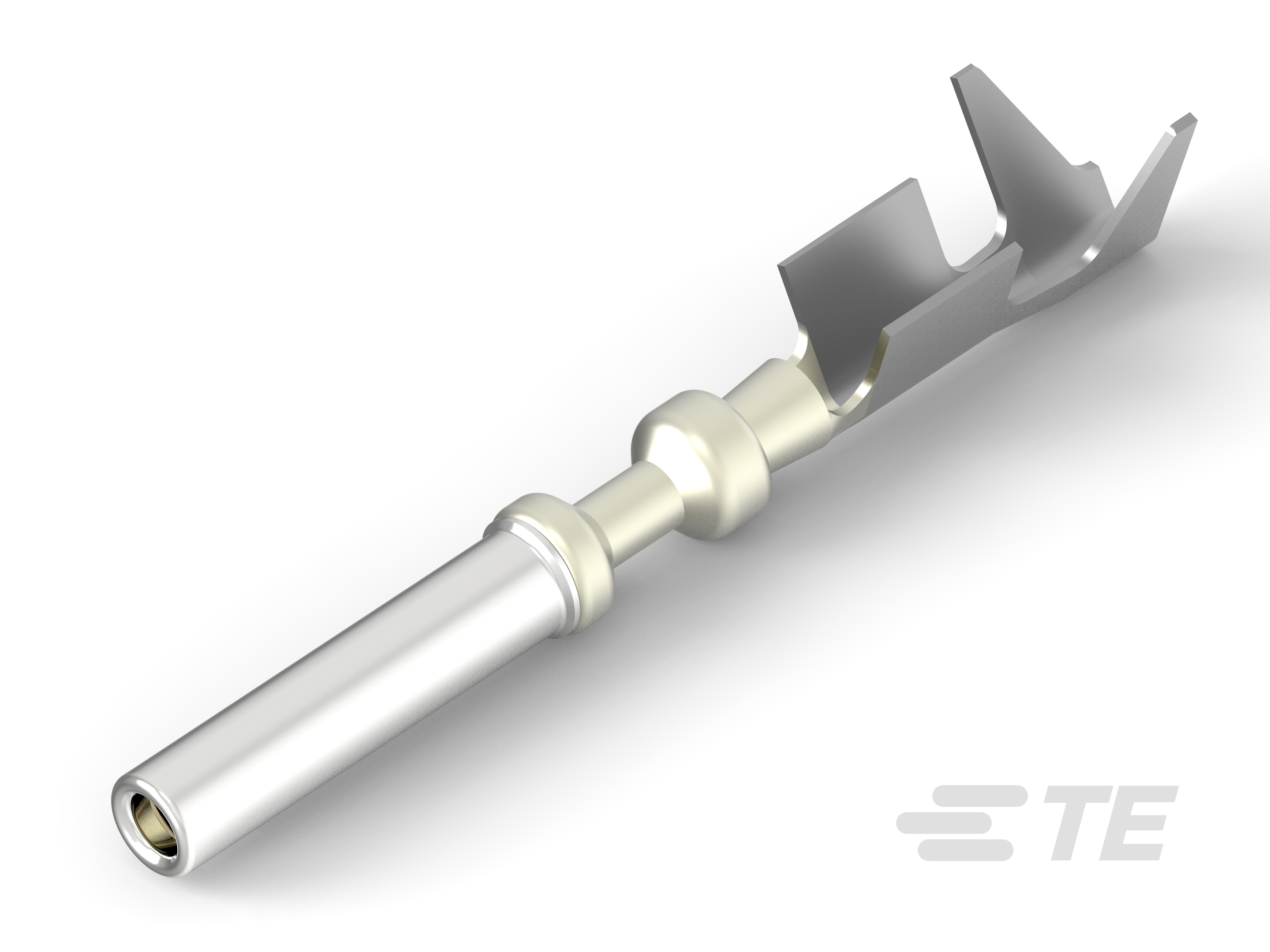

Receptacle, Pin Diameter 1.12 mm [.044 in], 18 – 16 AWG Wire Size, .75 – 1.25 mm² Wire Size, Sealable, SUPERSEAL 1.0mm, Automotive Terminals
3-1447221-5
Receptacle, Pin Diameter 1.12 mm [.044 in], 18 – 16 AWG Wire Size, .75 – 1.25 mm² Wire Size, Sealable, SUPERSEAL 1.0mm, Automotive Terminals
-
- AMP
- SUPERSEAL 1.0mm
- TE Internal #: 3-1447221-5
- TE Internal Description: S/S REC CONTACT ASSY, AU, 0.3
- Alias #: 3900187-03
- All SUPERSEAL Connector Contacts: 1.0 mm (6)
-
Packaging Method : Reel
-
Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]
-
Interface Plating : Gold (Au)
-
Operating Temperature (Max) : 125 °C [ 257 °F ]
-
Wire Size (AWG): 18 – 16
Documents
Product Drawings
- SUPER SEAL CONNECTOR RECEPTACLE CONTACT ASS'Y (NEW SMALL BARREL SIZE) Japanese
- SUPER SEAL CONNECTOR RECEPTACLE CONTACT ASS'Y (NEW SMALL BARREL SIZE) JPN_CD_3-1447221-5_A_c3-1447221-5.pdf Japanese
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_3-1447221-5_C.pdf 3D
- Customer View Model ENG_CVM_CVM_3-1447221-5_C.2d_dxf.zip English
- ENG_CVM_CVM_3-1447221-5_C.3d_igs.zip English
- ENG_CVM_CVM_3-1447221-5_C.3d_stp.zip English
Datasheets & Catalog Pages
- AMP SUPERSEAL 1.0 mm Connector System ENG_CS_1308072_AMP_SUPERSEAL_1_0_0911.pdf English
Product Specifications
- Application Specification JPN_SS_114-78014_A2.pdf Japanese
- Product Specification ENG_SS_108-78140_A9.pdf English
Instruction Sheets
- Instruction Sheet (non U.S.) S_411-78017_O.pdf English
- S_411-78017_O.tif English
- JPN_SS_411-78119_O.tif Japanese
- JPN_SS_411-78119_O.pdf Japanese
