Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

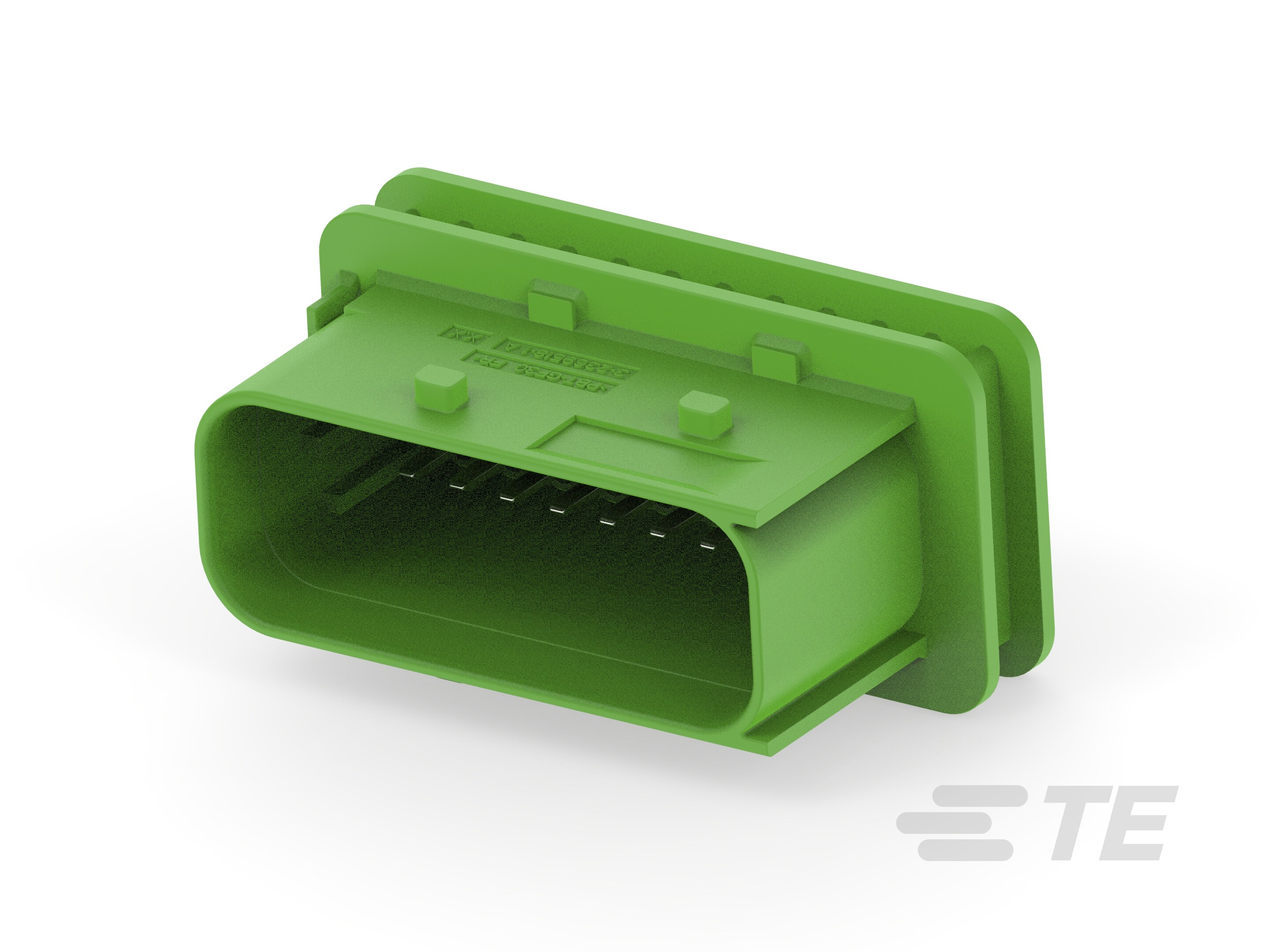

• Sealable : Yes

• Connector System : Wire-to-Panel

• Header Type : One Piece - IDC

• Mixed & Hybrid Header : No

• Connector Contact Load Condition : Fully Loaded

• Number of Positions : 18

• PCB Mount Orientation : Vertical

• Number of Rows : 2

• Operating Voltage (VDC): 60

• Operating Voltage (VAC): 24

• Primary Product Color : Green

• Connector & Keying Code : C

• Contact Fabrication : Stamped & Formed

• Contact Base Material : Bronze Alloy

• Contact Mating Area Plating Material Finish : Matte

• Contact Mating Area Plating Material : Silver (Ag)

• Contact Underplating Material : Nickel

• Contact Type : Splicing Contact

• Connector Mounting Type : Panel Mount

• Mating Alignment : With

• Housing Material : PBT GF30

• Centerline (Pitch) : 4 mm [ .157 in ]

• Connector Height : 33.8 mm [ 1.33 in ]

• Connector Length : 52.2 mm [ 2.05 in ]

• Connector Width : 26.7 mm [ 1.05 in ]

• Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]

• Operating Temperature (Max) : 140 °C [ 284 °F ]

• Circuit Application : Power

• UL Flammability Rating : UL 94V-0
