3-352177-0

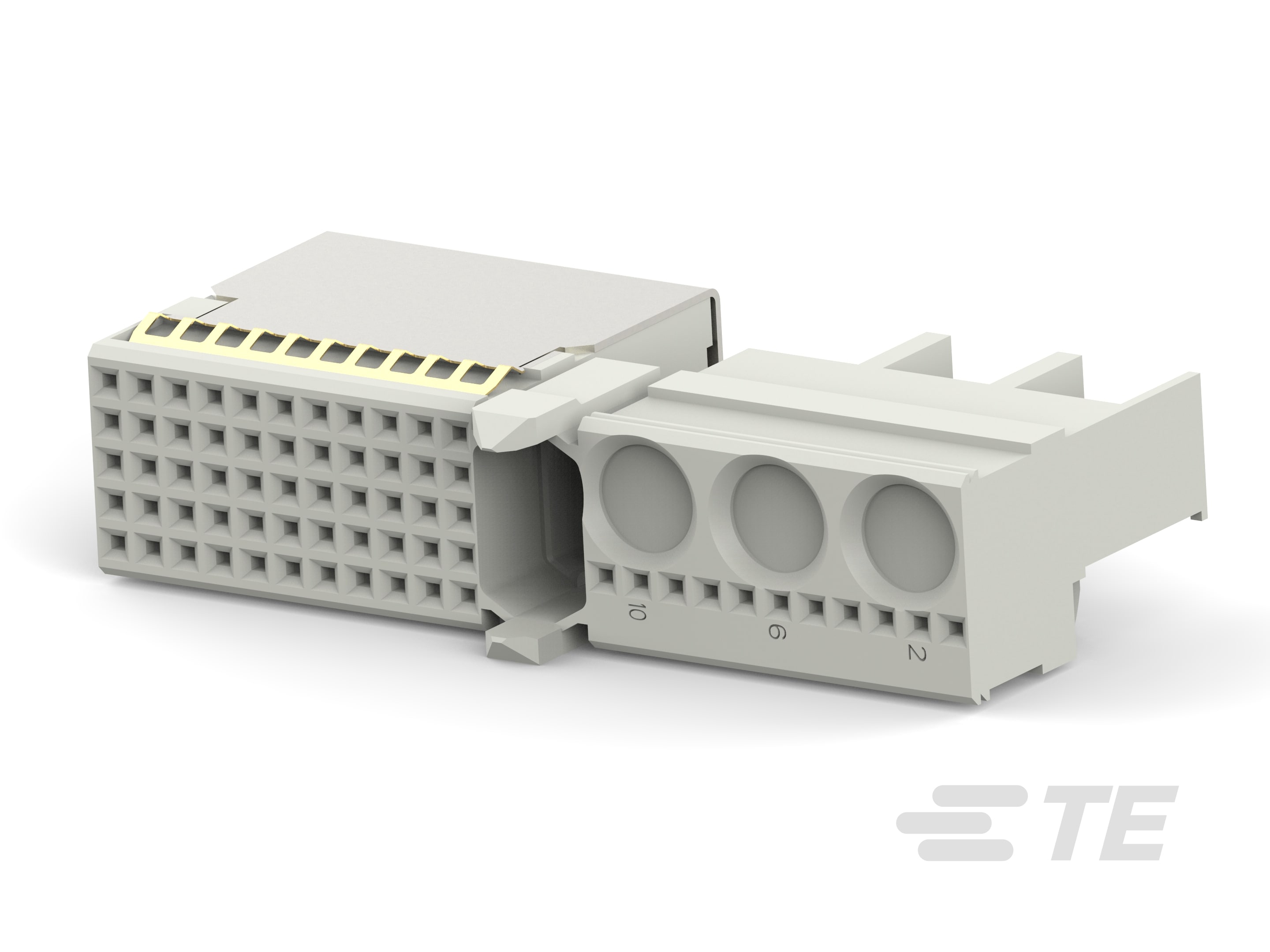

Hard Metric Backplane PCB Mount Receptacle, ≤1 Gb/s, 11 Column, 5 Row, Traditional Backplane, 55 Position, 2 mm [.078 in] Centerline, Z-PACK 2mm HM
3-352177-0
Hard Metric Backplane PCB Mount Receptacle, ≤1 Gb/s, 11 Column, 5 Row, Traditional Backplane, 55 Position, 2 mm [.078 in] Centerline, Z-PACK 2mm HM
-
- Z-PACK
- Z-PACK 2mm HM
- TE Internal #: 3-352177-0
- TE Internal Description: Z-PACK/M F-HDR 55+3
- All Hard Metric Backplane Receptacle Connector: Mezzanine, 2mm (27)
-
PCB Connector Assembly Type : PCB Mount Receptacle
-
Data Rate (Gb/s): ≤1
-
Number of Columns : 11
-
Number of Rows : 5
-
Backplane Architecture : Traditional Backplane
Documents
Product Drawings
- Dimensional Drawing Z-PACK 2MM HM TYPE M (55 POS.) PRE-SHIELDED RECEPTACLE ENG_CD_352177_J.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_3-352177-0_E.pdf 3D
- Customer View Model ENG_CVM_CVM_3-352177-0_E.2d_dxf.zip English
- ENG_CVM_CVM_3-352177-0_E.3d_igs.zip English
- ENG_CVM_CVM_3-352177-0_E.3d_stp.zip English
Product Specifications
- Product Specification ENG_SS_108-19082_C.pdf English
