3-646513-0

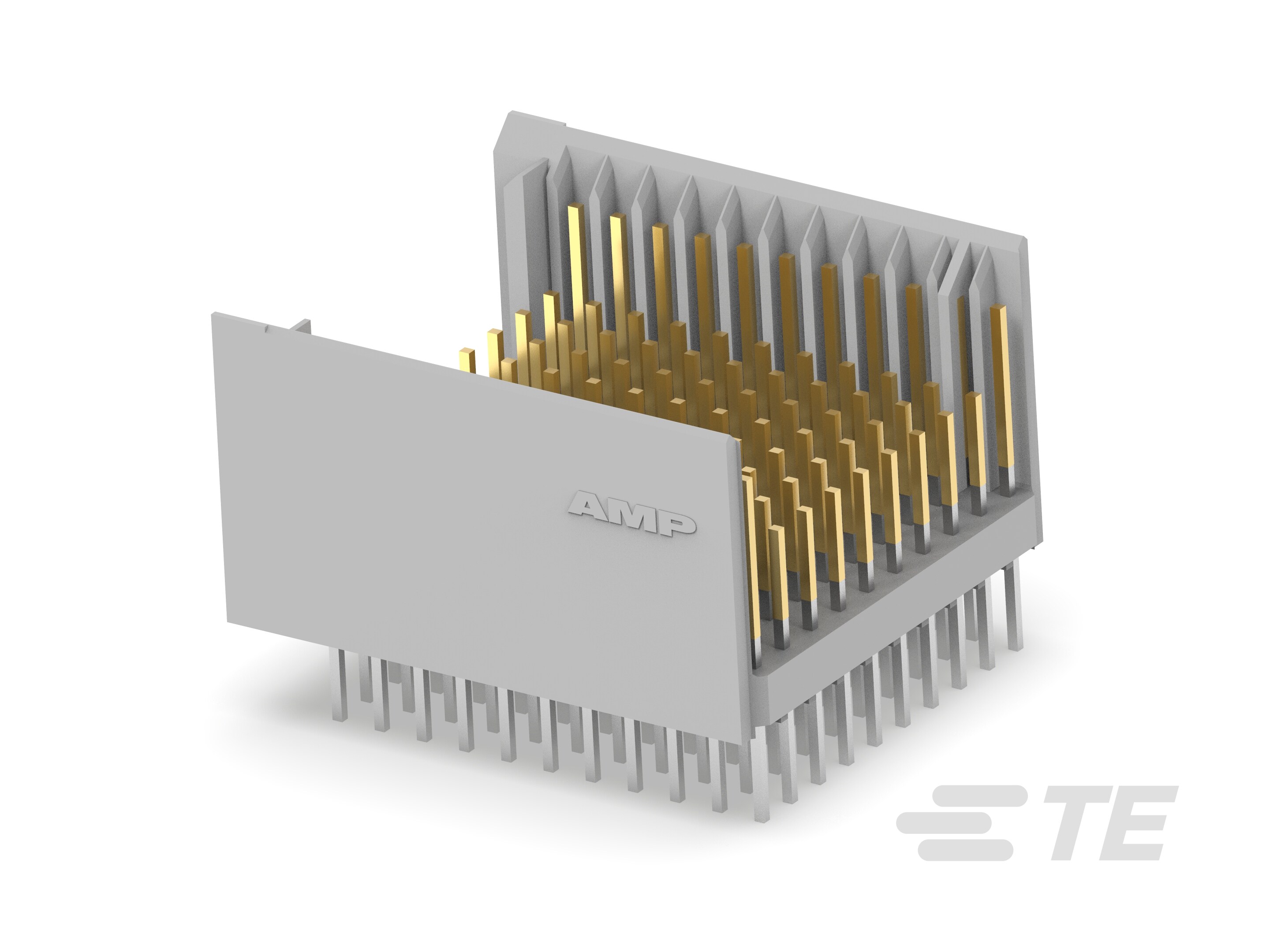

Hard Metric Backplane PCB Mount Header, ≤1 Gb/s, 11 Column, 8 Row, 88 Position, 2 mm Centerline, Vertical, Gray, Tube, Gold (Au), Z-PACK 2mm HM
3-646513-0
Hard Metric Backplane PCB Mount Header, ≤1 Gb/s, 11 Column, 8 Row, 88 Position, 2 mm Centerline, Vertical, Gray, Tube, Gold (Au), Z-PACK 2mm HM
-
- Z-PACK
- Z-PACK 2mm HM
- TE Internal #: 3-646513-0
- TE Internal Description: 2MM HM,ASY,T-F,PIN,110 POS
- All Hard Metric Male Connector: Traditional Backplane, Mezzanine, 2mm (124)
-
PCB Connector Type : PCB Mount Header
-
Data Rate (Gb/s): ≤1
-
Number of Columns : 11
-
Number of Rows : 8
-
Number of Positions : 88
Documents
Product Drawings
- MALE ASSEMBLY, Z-PACK 2mm HM, TYPE F English
- MALE ASSEMBLY, Z-PACK 2mm HM, TYPE F ENG_CD_646513_D1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_3-646513-0_D.pdf 3D
- Customer View Model ENG_CVM_CVM_3-646513-0_D.2d_dxf.zip English
- ENG_CVM_CVM_3-646513-0_D.3d_igs.zip English
- ENG_CVM_CVM_3-646513-0_D.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-19029_E.pdf English
- Product Specification ENG_SS_108-1622_A.pdf English
- Qualification Test Report ENG_SS_501-326_O.pdf English
- JPN_SS_501-326_O.pdf Japanese
- S_501-326_O.tif English
