Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

• Ground Choke Option : No

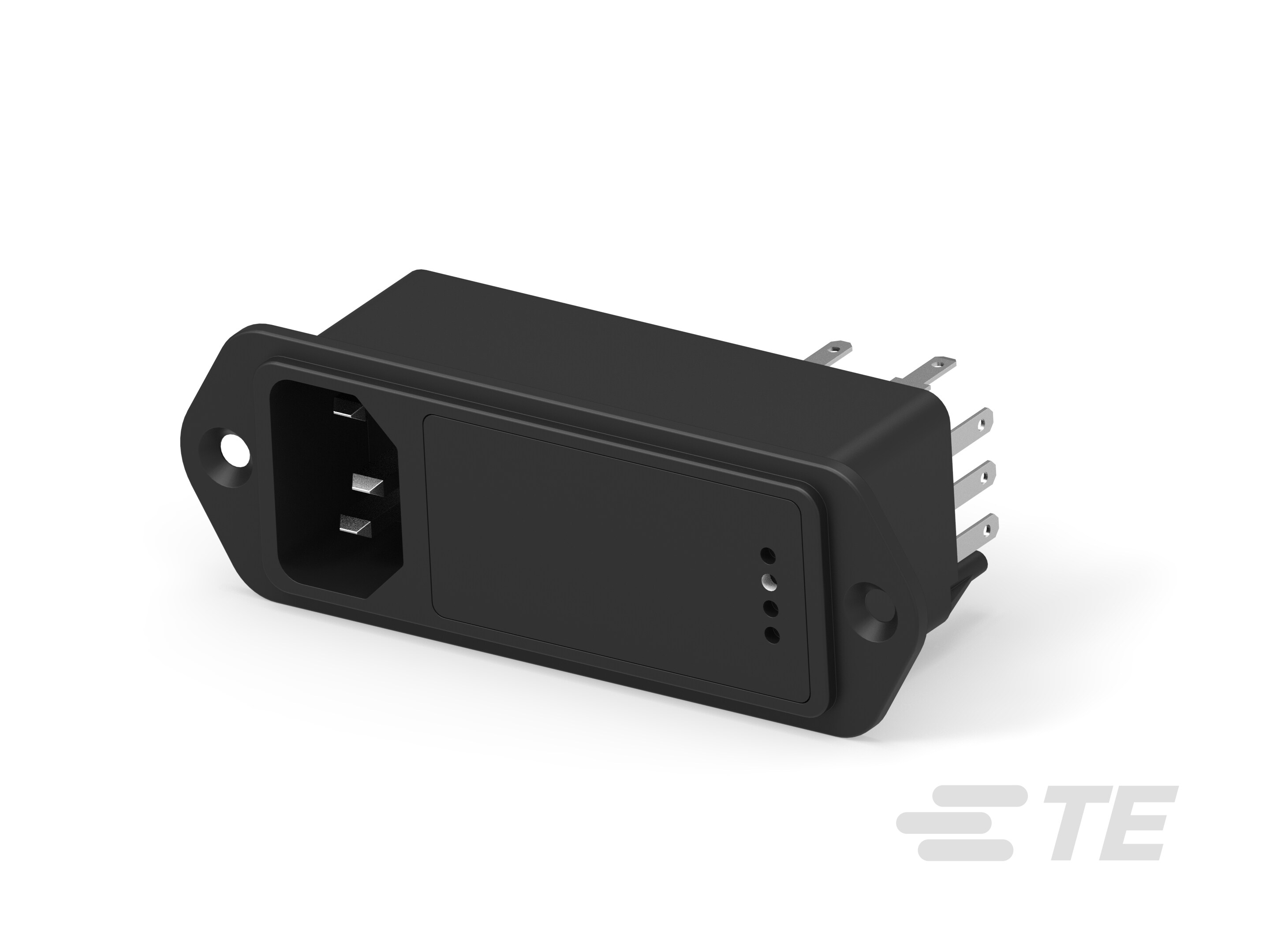

• Filter Type : Power Entry Module

• Filter Switch Type : No Switch

• Output Termination Type : .110" FASTON

• Filtering Requirements : Unfiltered

• Filter Connector Type : IEC 320/C-14

• Operating Temperature Range (°C): -10 – 40

• Panel Mount Feature Type : Flange

• Input Voltage Selection : Dual AC (Series/Parallel)

• Leakage Current (Max) (120VAC, 60Hz) (µA): 2

• Leakage Current (Max) (250VAC, 50Hz) (µA): 5

• Current Rating (A): 6

• Operating Voltage (VAC): 120, 240

• Filter Shield Type : None

• Product Orientation : Vertical

• Fuse Options : Single, Dual
