This product is not currently available. For more information, including distributor inventory, please contact us.

6VM2S

Active

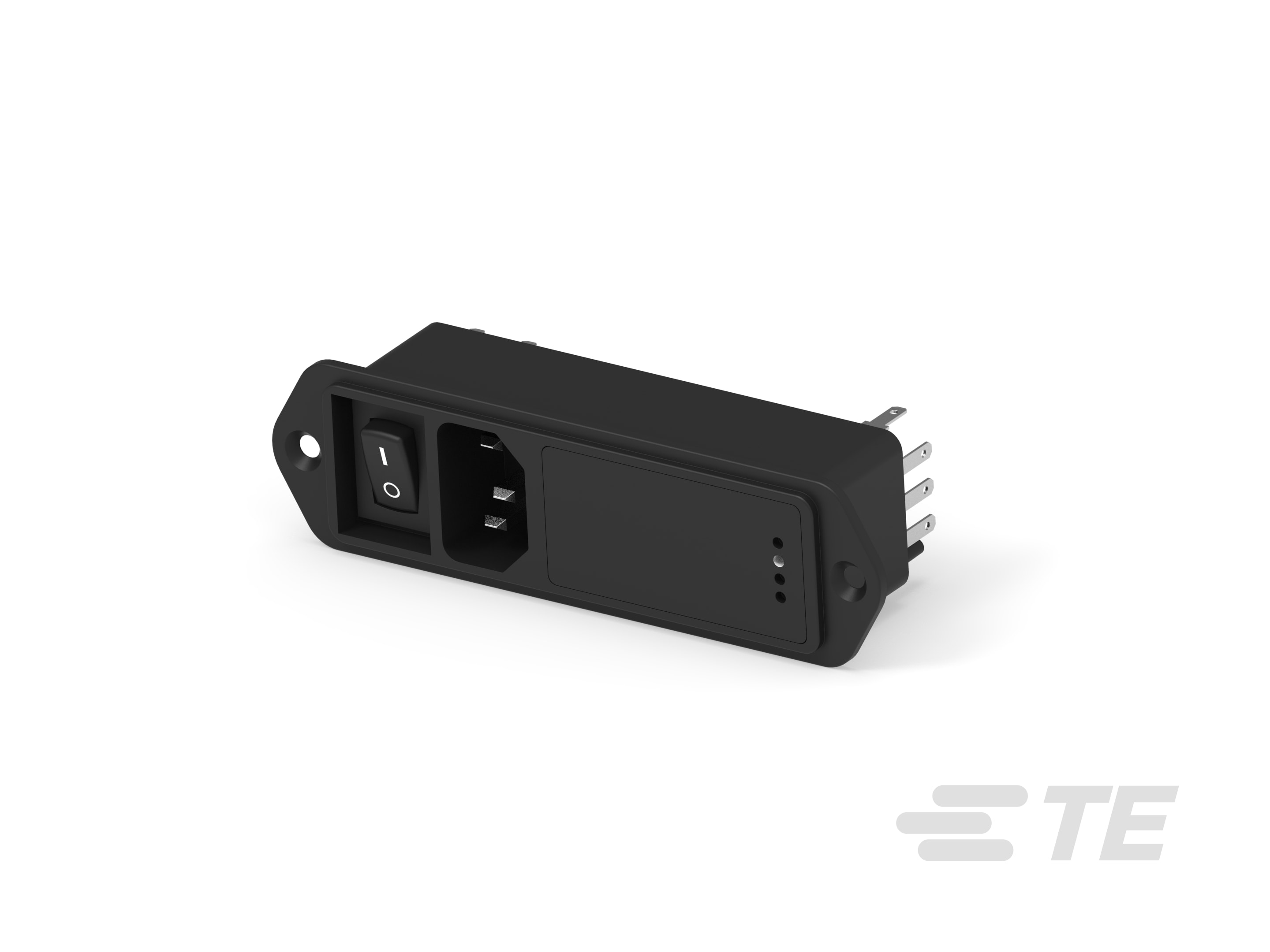

Power Entry Module, Dual AC (Series/Parallel) Input, DPST, None, Vertical, 6 A, .110" FASTON Output, 120 VAC / 240 VAC, Corcom M, Power Entry Modules

6VM2S

Active

Power Entry Module, Dual AC (Series/Parallel) Input, DPST, None, Vertical, 6 A, .110" FASTON Output, 120 VAC / 240 VAC, Corcom M, Power Entry Modules

- Corcom
- Corcom M

TE Internal #: 3-6609128-1
TE Internal Description: 6VM2S=F8099
All CORCOM M SERIES MULTI-FUNCTION INLET FIL (28)

Filter Type : Power Entry Module
Input Voltage Selection : Dual AC (Series/Parallel)
Filter Switch Type : DPST
Filter Shield Type : None
Product Orientation : Vertical

See All Features

More Less

Compatible Parts & Tooling

Documents

Product Drawings

CUSTOMER DRAWING 6VM2S ENG_CD_6VM2S_R.pdf English

Product Change Notification

View Product Change Notification Login required to access product change notifications

Features

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

Ground Choke Option : No
Filter Type : Power Entry Module
Filter Switch Type : DPST
Output Termination Type : .110" FASTON
Filtering Requirements : Unfiltered
Filter Connector Type : IEC 320/C-14

Usage Conditions

Operating Temperature Range (°C): -10 – 40

Mechanical Attachment

Panel Mount Feature Type : Flange

Electrical Characteristics

Input Voltage Selection : Dual AC (Series/Parallel)
Leakage Current (Max) (120VAC, 60Hz) (µA): 2
Leakage Current (Max) (250VAC, 50Hz) (µA): 5
Current Rating (A): 6
Operating Voltage (VAC): 120, 240

Body Features

Filter Shield Type : None
Product Orientation : Vertical

Configuration Features

Fuse Options : Single, Dual

Other

EU RoHS Compliance : Compliant
EU ELV Compliance : Compliant

6VM2S

Power Entry Module, Dual AC (Series/Parallel) Input, DPST, None, Vertical, 6 A, .110" FASTON Output, 120 VAC / 240 VAC, Corcom M, Power Entry Modules

6VM2S

Power Entry Module, Dual AC (Series/Parallel) Input, DPST, None, Vertical, 6 A, .110" FASTON Output, 120 VAC / 240 VAC, Corcom M, Power Entry Modules

Filter Type : Power Entry Module

Input Voltage Selection : Dual AC (Series/Parallel)

Filter Switch Type : DPST

Filter Shield Type : None

Product Orientation : Vertical

Documents

Product Drawings

CAD Files

Datasheets & Catalog Pages

Agency Approvals

Product Change Notification

Features

Product Type Features

Ground Choke Option : No

Filter Type : Power Entry Module

Filter Switch Type : DPST

Output Termination Type : .110" FASTON

Filtering Requirements : Unfiltered

Filter Connector Type : IEC 320/C-14

Usage Conditions

Operating Temperature Range (°C): -10 – 40

Mechanical Attachment

Panel Mount Feature Type : Flange

Electrical Characteristics

Input Voltage Selection : Dual AC (Series/Parallel)

Leakage Current (Max) (120VAC, 60Hz) (µA): 2

Leakage Current (Max) (250VAC, 50Hz) (µA): 5

Current Rating (A): 6

Operating Voltage (VAC): 120, 240

Body Features

Filter Shield Type : None

Product Orientation : Vertical

Configuration Features

Fuse Options : Single, Dual

Other

EU RoHS Compliance : Compliant

EU ELV Compliance : Compliant

Product Compliance
