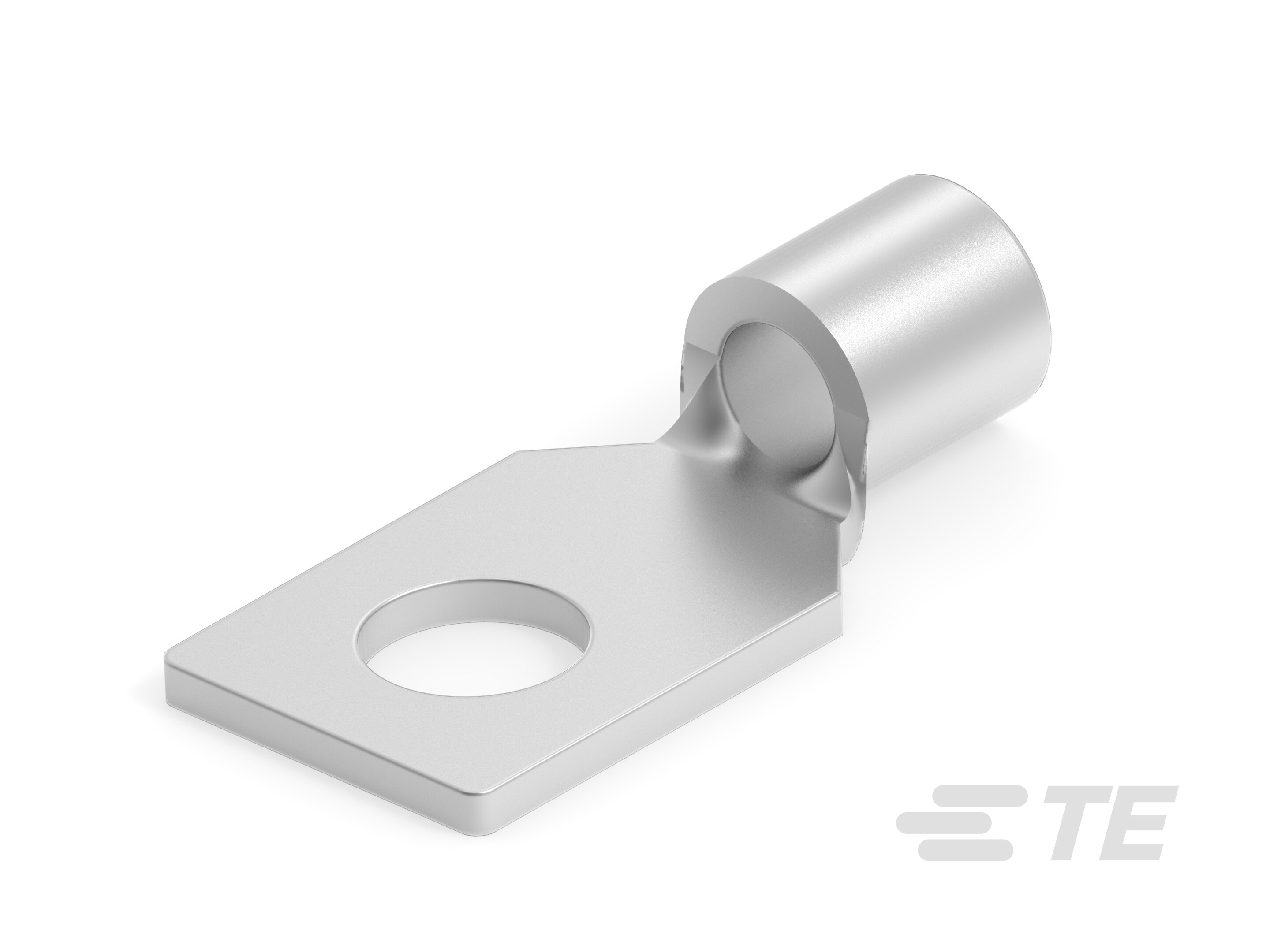

Rectangular Tongue Terminal, 16 – 14 AWG, #5 / M3 Stud Size, 3.35 mm [.132 in] Stud Diameter, Closed Barrel, Straight, Tin, SOLISTRAND Budget
327951
Rectangular Tongue Terminal, 16 – 14 AWG, #5 / M3 Stud Size, 3.35 mm [.132 in] Stud Diameter, Closed Barrel, Straight, Tin, SOLISTRAND Budget
-
- SOLISTRAND
- SOLISTRAND Budget
- TE Internal #: 327951
- TE Internal Description: TERMINAL,BUDG RECT 16-14 5
-
Spade Terminal Type : Rectangular Tongue Terminal
-
Wire Size (AWG): 16 – 14
-
Wire Size (mm²): 1.04 – 2.62
-
Wire Size (CMA): 2050 – 5180
-
Stud Size : M3,
