32863-1

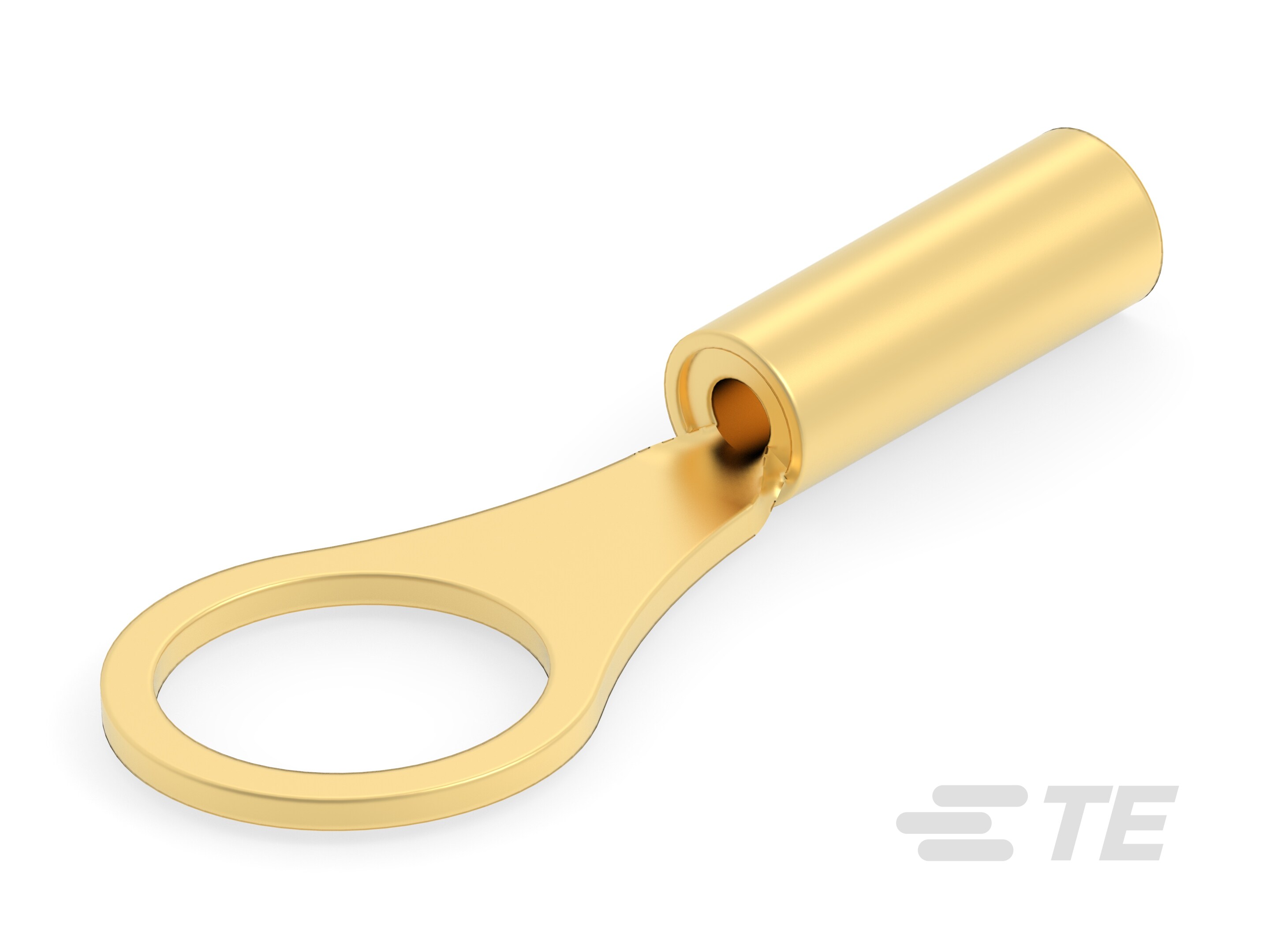

Closed Ring Tongue Terminal, 26 AWG, #10 Stud, 4.34 mm [.171 in] Stud Diameter, Closed Barrel, Straight, Gold Plating, Uninsulated
32863-1
Closed Ring Tongue Terminal, 26 AWG, #10 Stud, 4.34 mm [.171 in] Stud Diameter, Closed Barrel, Straight, Gold Plating, Uninsulated
-
- DIAMOND GRIP
- TE Internal #: 32863-1
- TE Internal Description: TERMINAL,DG R 26-22 10
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Wire Size (AWG): 26
-
Wire Size (mm²): .12 – .4
-
Wire Size (CMA): 202 – 810
-
Stud Size : 10
Documents
Product Drawings
- TERMINAL, RING,WIRE SIZE,AWG English
- TERMINAL, RING,WIRE SIZE,AWG C_32863_E.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_32863-1_F.pdf 3D
- Customer View Model ENG_CVM_CVM_32863-1_F.2d_dxf.zip English
- ENG_CVM_CVM_32863-1_F.3d_igs.zip English
- ENG_CVM_CVM_32863-1_F.3d_stp.zip English
Datasheets & Catalog Pages
- Digital Data Sheet ENG_DS_Product_Digital_Data_Sheet_32863-1_1.pdf English
